Cypress Semiconductor Pioneer PSoC Development Board CY8CKIT-048

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

CY8CKIT-048 PSoC Analogue Coprocessor Pioneer Kit, Cypress

The PSoC Analogue Coprocessor Kit simplifies the design of sensor-based systems. The PSoC Analogue Coprocessor with a 32-bit ARM Cortex-M0+ CPU, combines flexible Analogue Front Ends, programmable Analogue Filters, and high-resolution Analogue-to-Digital converters. Complex sensor data are pre-processed and formatted, available over the serial communication interfaces. The CY8CKIT-048 Kit offers footprint-compatibility with Arduino shields.

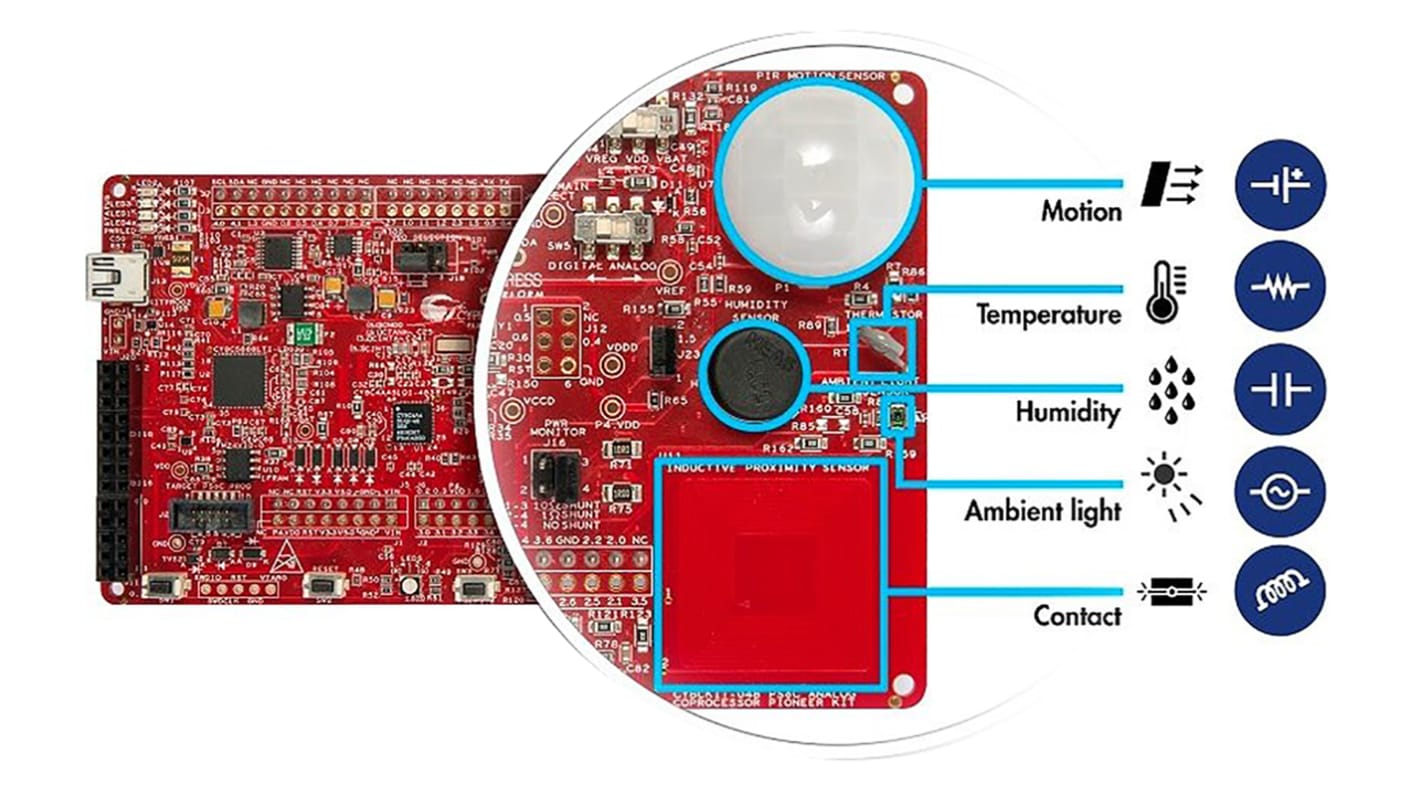

Five Sensors on-board:
Voltage-based PIR Motion Sensor
Current-based Ambient Light Sensor
Resistance-based Temperature Sensor
Inductance-based Proximity/Contact sensor
Capacitance-based Humidity sensor

Kit Contents

PSoC Analogue Coprocessor Pioneer board
USB Standard Type-A to Mini-B cable
Four jumper wires (4 in or 101 mm)
Five connectors
One metal disk
Quick Start Guide

Specifikationer
Attribute Value
Classification Development Board
Kit Name Pioneer
Technology PSoC
Device Core ARM Cortex M0+
Processor Family Name PSoC
Processor Part Number CY8C4A45LQI-483
Processor Type MCU
2 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
373,71 kr
(exkl. moms)
467,14 kr
(inkl. moms)
Enheter
Per unit
1 +
373,71 kr
