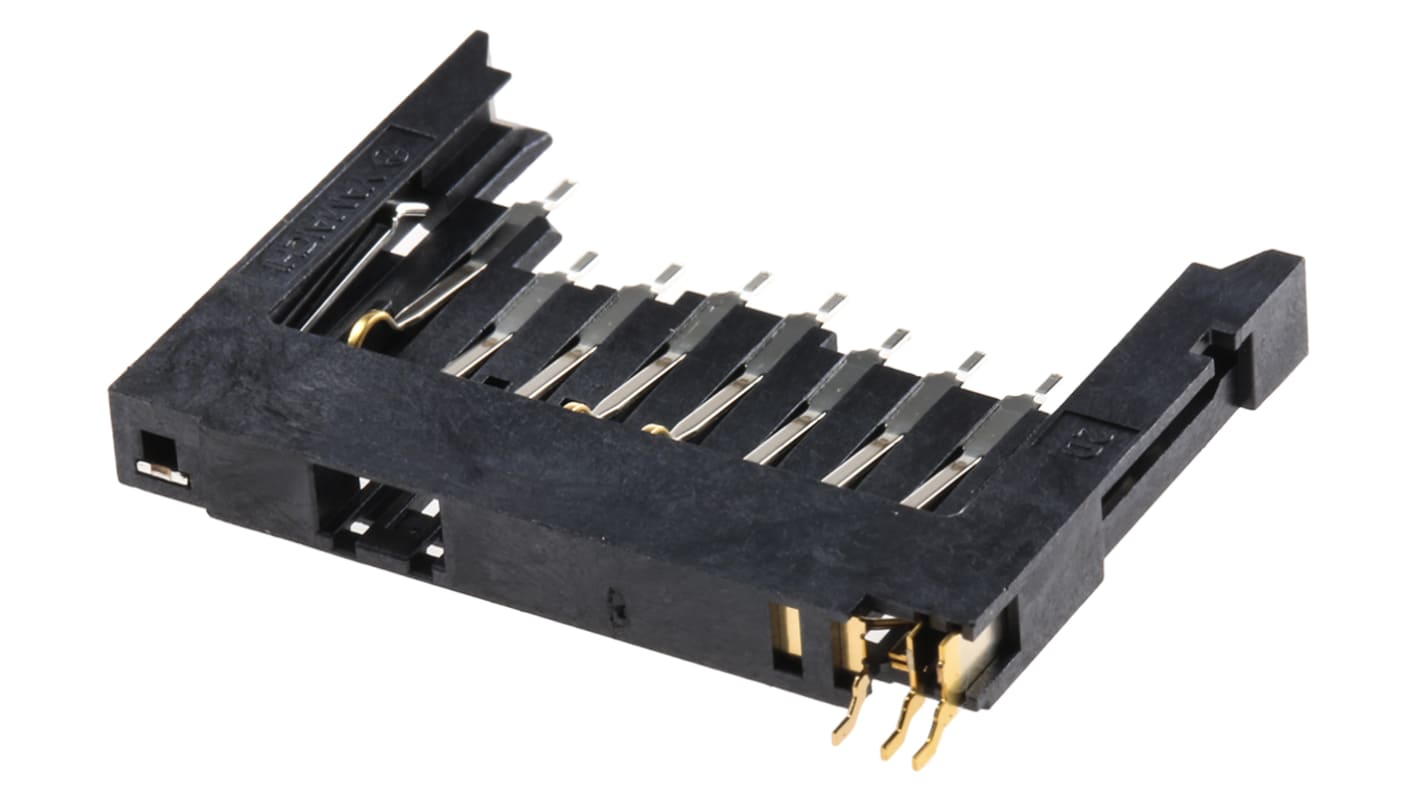

Yamaichi 9 Way Right Angle SD Card Memory Card Connector With Solder Termination

RS-artikelnummer:: 237-697
Tillv. art.nr:: FPS009-3202-BL
Tillverkare / varumärke:: Yamaichi

Yamaichi 9 Way Right Angle SD Card Memory Card Connector With Solder Termination

Tillfälligt slut i lager – restorder för leverans 2024-05-13

Lagt till varukorgen

Pris (ex. moms) Varje

61,42 kr

(exkl. moms)

76,78 kr

(inkl. moms)

Enheter	Per unit
1 - 14	61,42 kr
15 - 49	57,78 kr
50 - 99	41,37 kr
100 - 249	30,50 kr
250 +	23,18 kr

RS-artikelnummer:: 237-697
Tillv. art.nr:: FPS009-3202-BL
Tillverkare / varumärke:: Yamaichi

Datablad

Datasheet

Lagstiftning och ursprungsland

COO (Country of Origin):: JP

Produktdetaljer

SD Card and MMC Connector

Manual insertion and push-in/push-out low profile variants.
LCP glass filled insulator

Mating cycles 10000

Manual Insertion/Extraction Type

9 Contacts
Short 20.3mm housing
Card detector and write protection switch
3-step sequential contacting mechanism
With card retention mechanism

Push in/Push Out Low Profile Type

Card detector and write protection switch
Card lock mechanism for SD card

Memory Card Connectors

Specifikationer

Attribute	Value
Card Type	SD Card
Gender	Female
Number of Contacts	9
Number of Rows	1
Body Orientation	Right Angle
Mounting Type	Surface Mount
Contact Plating	Gold over Nickel
Termination Method	Solder
Housing Material	Liquid Crystal Polymer
Length	27.4mm
Width	3.1mm
Depth	20.3mm
Dimensions	27.4 x 3.1 x 20.3mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
