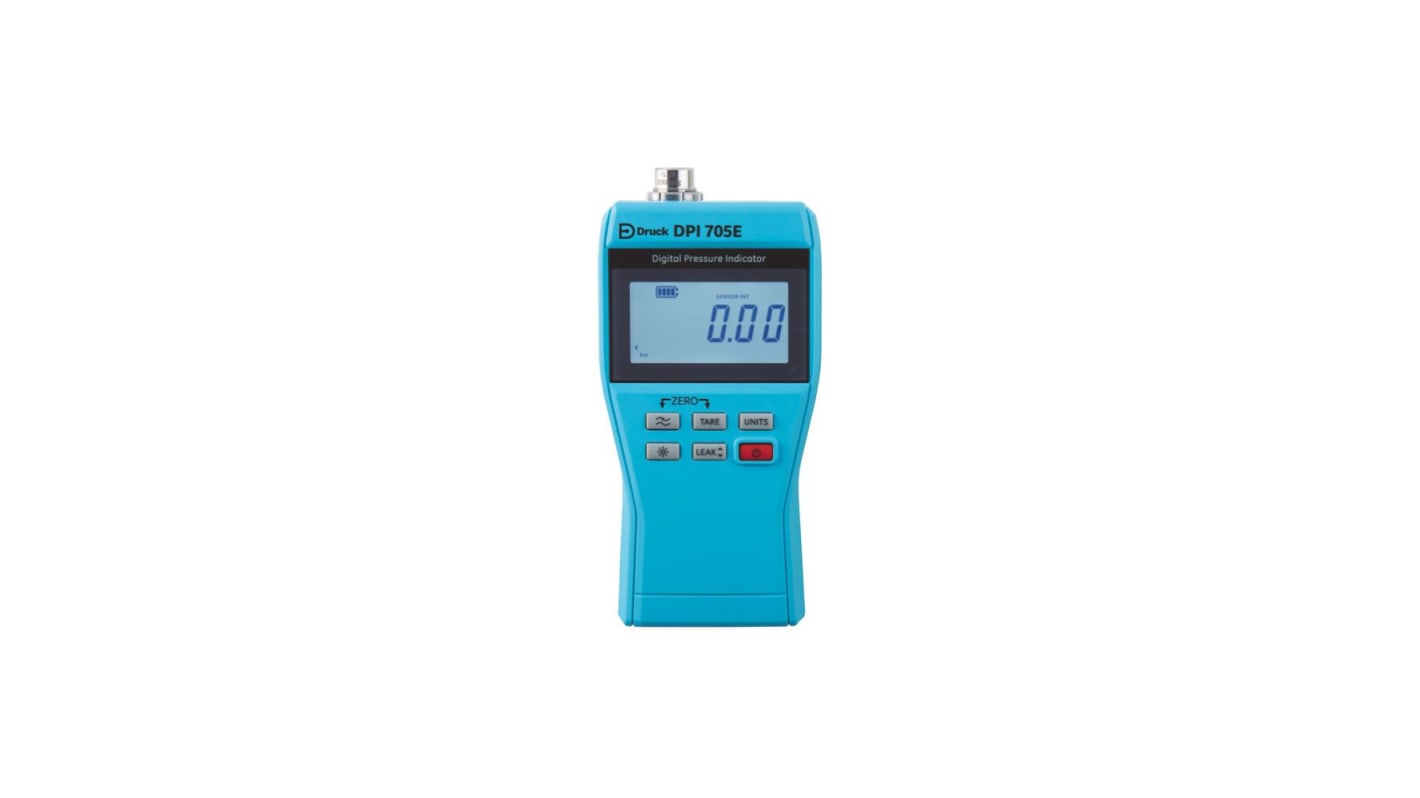

Druck DPI705E Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 7 bar

RS-artikelnummer:: 261-4581
Tillv. art.nr:: DPI705E-2-10G-P1-H0-U0-OP0
Tillverkare / varumärke:: Druck

Druck DPI705E Gauge Manometer With 1 Pressure Port/s, Max Pressure Measurement 7 bar

Antal (1 enhet)*

9 793,55 kr

(exkl. moms)

12 241,94 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Tillfälligt slut

1 enhet(er) levereras från den 04 mars 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	9 793,55 kr

*vägledande pris

RS-artikelnummer:: 261-4581
Tillv. art.nr:: DPI705E-2-10G-P1-H0-U0-OP0
Tillverkare / varumärke:: Druck

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Druck
	Product Type	Manometer
	Accuracy	+/-0.05% FS
	Number of Pressure Ports	1
	Maximum Pressure Measurement	7bar
	Minimum Pressure Measurement	-25mbar
	Pressure Port Type	Gauge
	Leak Testing	Yes
	Data Logging	No
	Model Number	DPI705E
	Intrinsically Safe	Yes
	IP Rating	IP54
	Minimum Operating Temperature	-10°C
	Battery Type	AA
	Maximum Overpressure	1400bar
	Maximum Operating Temperature	50°C
	Display Type	LCD Backlight
	Length	200mm
	Standards/Approvals	No
	Width	95 mm
	Height	43mm
	Hazardous Area Certification	ATEX, IECEx
	Weight	563g
	Calibrated	RSCAL

	Välj alla
	Brand Druck
	Product Type Manometer
	Accuracy +/-0.05% FS
	Number of Pressure Ports 1
	Maximum Pressure Measurement 7bar
	Minimum Pressure Measurement -25mbar
	Pressure Port Type Gauge
	Leak Testing Yes
	Data Logging No
	Model Number DPI705E
	Intrinsically Safe Yes
	IP Rating IP54
	Minimum Operating Temperature -10°C
	Battery Type AA
	Maximum Overpressure 1400bar
	Maximum Operating Temperature 50°C
	Display Type LCD Backlight
	Length 200mm
	Standards/Approvals No
	Width 95 mm
	Height 43mm
	Hazardous Area Certification ATEX, IECEx
	Weight 563g
	Calibrated RSCAL

Datasheet - DPI705E-2-10G-P1-H0-U0-OP0

COO (Country of Origin):: GB

Druck Manometer, 7 bar Maximum Pressure Measurement, 1 Pressure Port - DPI705E-2-10G-P1-H0-U0-OP0

This handheld pressure indicator from the Druck offers accurate and reliable measurements in a compact and robust design. It is designed for single-handed operation and provides essential features for routine maintenance and system troubleshooting.

Features & Benefits

• 41 pressure ranges from ±25 mbar to 1,400 bar

• Total 1-year uncertainty down to 0.05% full scale over a temperature range of -10°C to +50°C

• Leak test, tare, maximum/minimum, and filter functions for efficient testing and troubleshooting

• Optional remote plug-and-play pressure and resistance temperature detector (RTD-PROBE) sensors

• Long battery life for continuous use and integral desk stand and hanger for convenience

Applications

• Ideal for use in pneumatic and hydraulic systems

• Suitable for testing and calibrating pressure transmitters, switches, and gauges

Can it be used in hazardous areas?

Yes, this product has a Hazardous Area (Intrinsically safe) version available for use in such environments.

Will it provide accurate measurements in extreme temperatures?

It offers accurate readings over a temperature range of -10°C to +50°C.

Is it suitable for remote testing applications?

With optional plug-and-play remote pressure sensors, the DPI705E offers versatile testing capabilities.

Can it be used for leak testing?

Yes, it features leak test functionality with user-defined timing options.

How long does the battery last?

The product is designed for long battery life, providing up to a year of usage with a single set of batteries.
