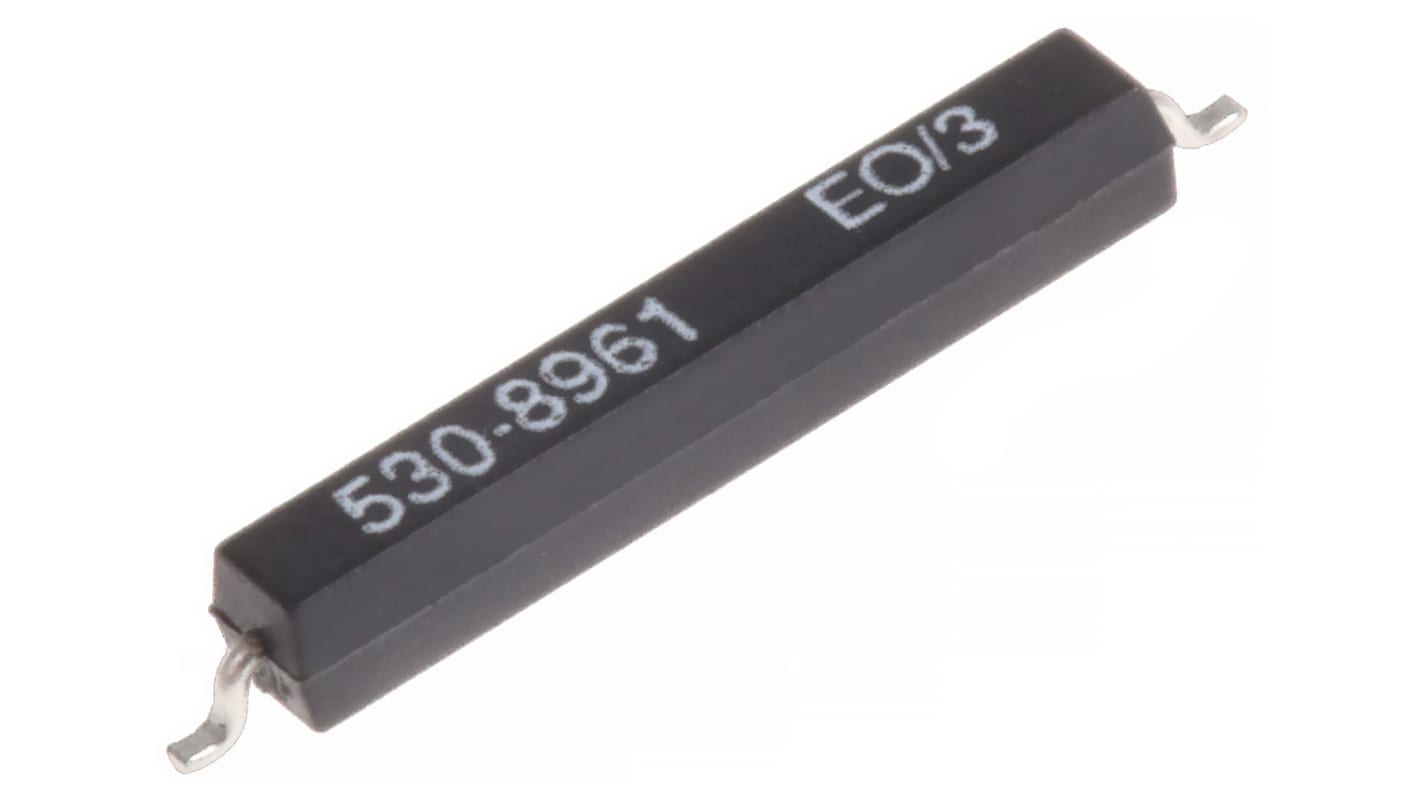

RS PRO Flat Reed Switch, NO, 200V, 1A
- RS-artikelnummer:
- 530-8961
- Tillverkare / varumärke:
- RS PRO
Se alla Magnetic Proximity Switches
81 I lager för avsändande samma dag
Pris (ex. moms) Each
27,35 kr
(exkl. moms)
34,19 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 27,35 kr |
| 5 - 11 | 26,15 kr |
| 12 + | 25,05 kr |
- RS-artikelnummer:
- 530-8961
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
SMD Sensor 16mm
Note
For suitable actuator magnet see stock no. 536-1732
Surface Mount
Small dimension sensors used for electronic PCBs, low power applications, telecommunications, switching element in microphones.
Specifikationer
Attribute | Value |
|---|---|
| Switch Shape | Flat |
| Pole and Throw Configuration | SPST |
| Normal State Configuration | NO |
| Maximum Current | 1A |
| Maximum AC Voltage | 200V |
| Maximum DC Voltage | 200V |
| Contact Resistance | 150mΩ |
| Total Length | 19.5mm |
| Length | 16mm |
| Dimensions | 16 x 2.5 x 2.5mm |
| Maximum Operating Temperature | +130°C |
| Depth | 2.5mm |
| Minimum Operating Temperature | -40°C |
| Width | 2.5mm |
