Assemtech Reed Switch Cylindrical 140V, NO, 500mA
- RS-artikelnummer:
- 289-7878
- Tillv. art.nr:
- S1372
- Tillverkare / varumärke:
- Assemtech
Se alla Magnetic Proximity Switches
58 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
70,38 kr
(exkl. moms)
87,98 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 5 | 70,38 kr |
| 6 - 11 | 67,29 kr |
| 12 + | 65,26 kr |
- RS-artikelnummer:
- 289-7878
- Tillv. art.nr:
- S1372
- Tillverkare / varumärke:
- Assemtech
- COO (Country of Origin):
- GB
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer

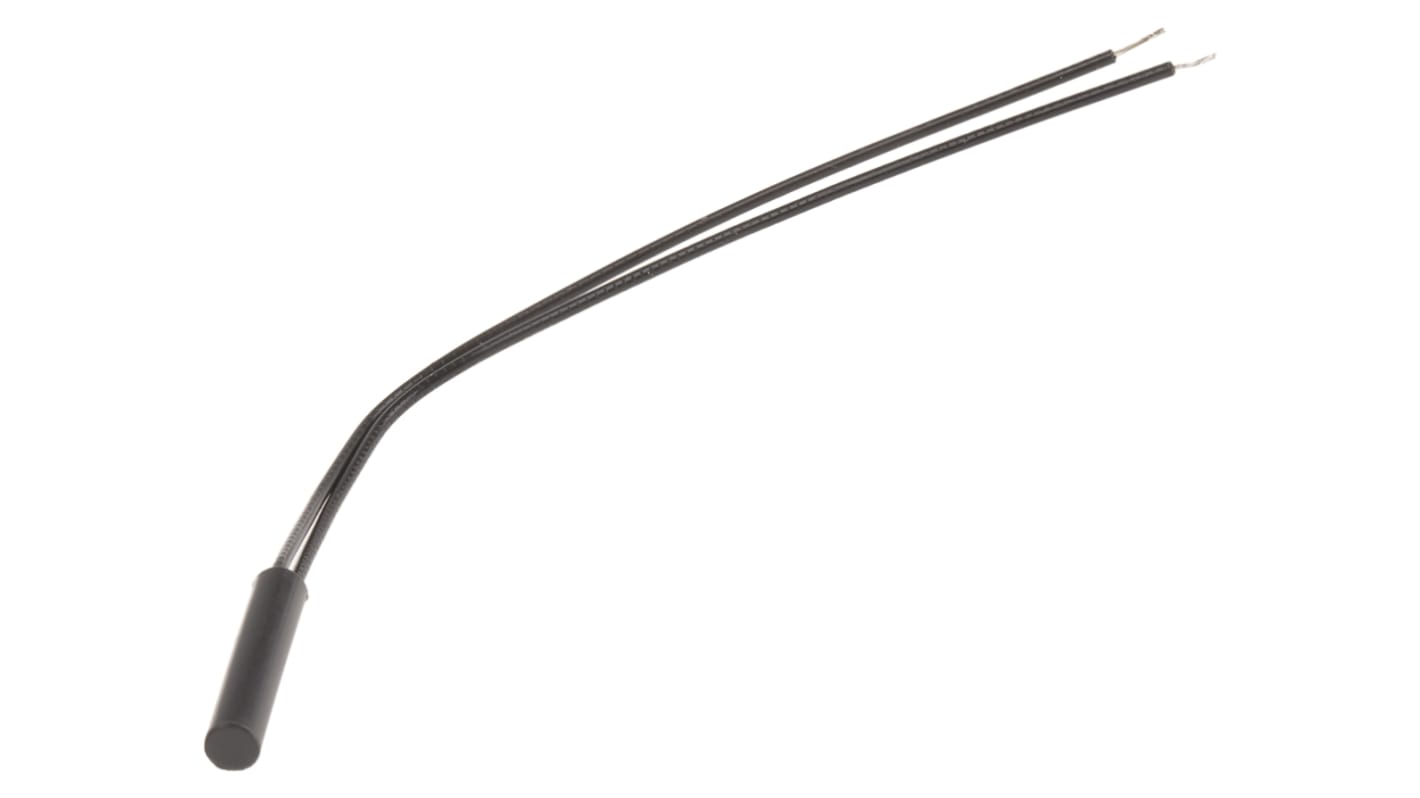

Assemtech Cylindrical Proximity Reed Switches
This range of cylindrical magnetic proximity reed switches from Assemtech are designed to provide a simple and cost effective solution to position or limit sensing applications. Reed switches are often employed to carry out such functions as linear actuator switches, security system switches and door switches.
N/O contacts
Matching operating magnet available
Specifikationer
| Attribute | Value |
| Switch Shape | Cylindrical |
| Normal State Configuration | NO |
| Terminal Type | Wire Lead |
| Maximum Current | 500mA |
| Maximum AC Voltage | 140V |
| Maximum DC Voltage | 230V |
| Contact Resistance | 115mΩ |
| Total Length | 108mm |
| Length | 18mm |
| Width | 3.5mm |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
| Dimensions | 3.5 (Dia.) x 18mm |
