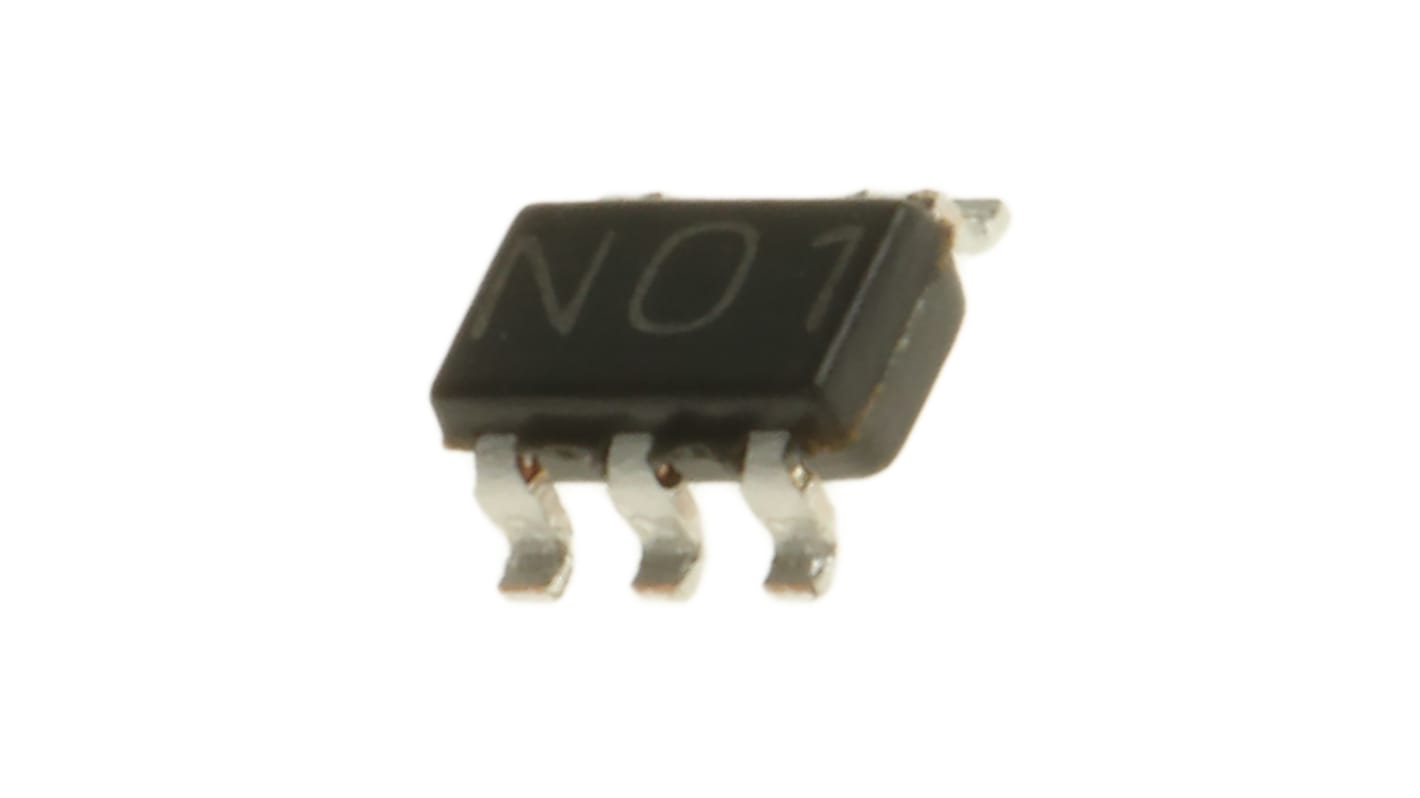

Texas Instruments DS90LV011ATMF/NOPB, LVDS Transceiver LVCMOS Driver, 5-Pin SOT-23
- RS-artikelnummer:
- 504-4875
- Tillv. art.nr:
- DS90LV011ATMF/NOPB
- Tillverkare / varumärke:
- Texas Instruments
115 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
13,22 kr
(exkl. moms)
16,52 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 20 | 13,22 kr | 66,10 kr |
| 25 - 45 | 12,554 kr | 62,77 kr |
| 50 - 120 | 11,29 kr | 56,45 kr |
| 125 - 245 | 10,158 kr | 50,79 kr |
| 250 + | 9,67 kr | 48,35 kr |
- RS-artikelnummer:
- 504-4875
- Tillv. art.nr:
- DS90LV011ATMF/NOPB
- Tillverkare / varumärke:
- Texas Instruments
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Differential Line Drivers and Receivers (LVDS PHY), Texas Instruments
LVDS Communication
Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.
Applications: Firewire, SATA, SCSI
Specifikationer
Attribute | Value |
|---|---|
| Number of Drivers | 1 |
| Input Type | LVCMOS |
| IC Type | Transceiver IC |
| Output Type | Driver |
| Transmission Data Rate | 400Mbps |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Pin Count | 5 |
| Dimensions | 2.92 x 1.6 x 1.02mm |
| Height | 1.02mm |
| Length | 2.92mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 3 V |
| Width | 1.6mm |
| Maximum Operating Temperature | +85 °C |
