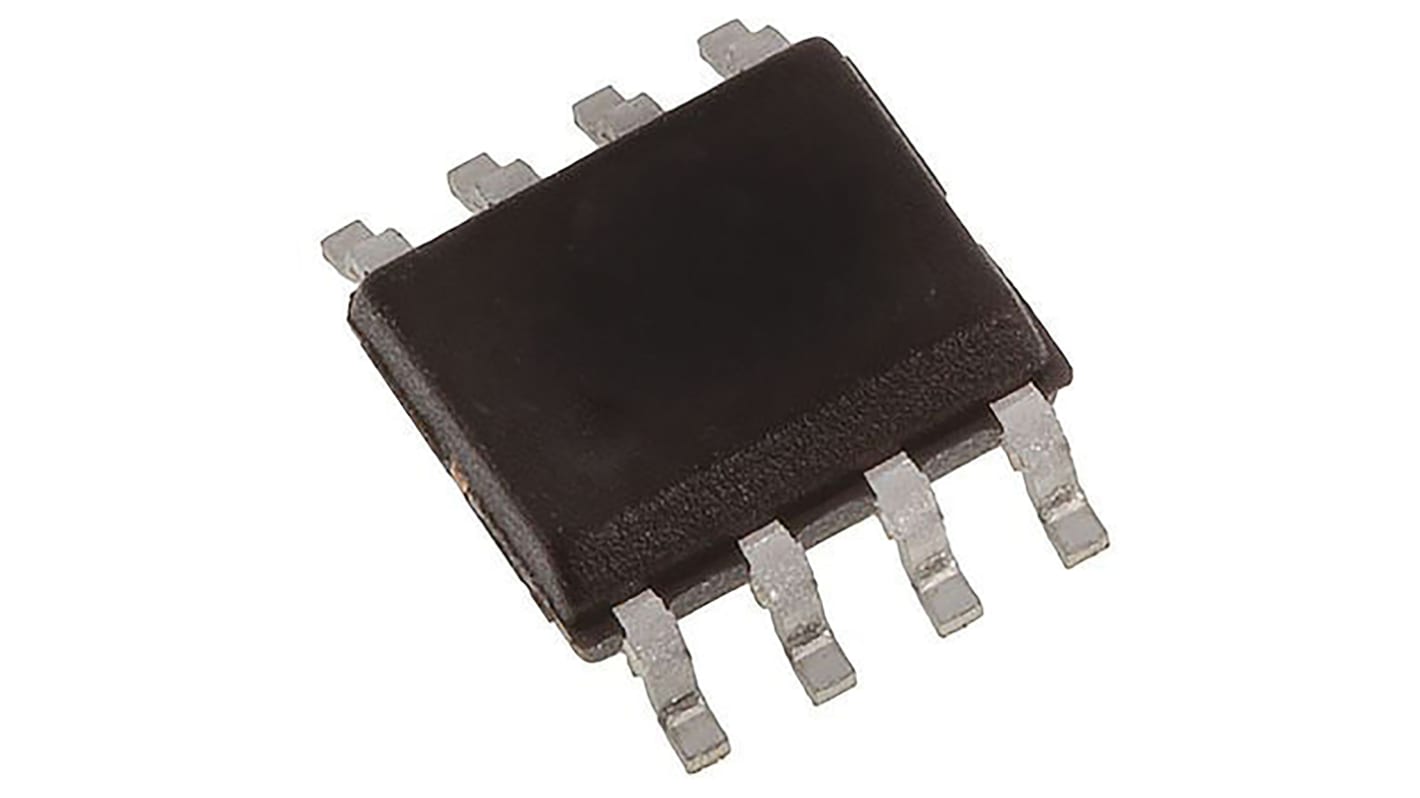

Texas Instruments SN65LVDS179D, LVDS Transceiver LVDM, LVTTL Driver, Receiver, 8-Pin SOIC

Se alla LVDS Interface Ics
Mängdrabatt möjlig

Antal (1 enhet)*

54,21 kr

(exkl. moms)

67,76 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • 59 enhet(er) är redo att levereras från en annan plats
  • Sista 4 enhet(er) levereras från den 07 januari 2026
Enheter
Per enhet
1 - 454,21 kr
5 - 951,52 kr
10 - 2446,37 kr
25 - 4941,78 kr
50 +39,65 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
462-2389
Tillv. art.nr:
SN65LVDS179D
Tillverkare / varumärke:
Texas Instruments
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Texas Instruments

Number of Drivers

1

Input Type

LVDM, LVTTL

IC Type

Transceiver IC

Output Type

Driver, Receiver

Transmission Data Rate

400Mbps

Number of Elements per Chip

1

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

8

Dimensions

4.9 x 3.91 x 1.58mm

Height

1.58mm

Length

4.9mm

Maximum Operating Supply Voltage

3.6 V

Width

3.91mm

Minimum Operating Supply Voltage

3 V

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

LVDS Transceivers, Texas Instruments


The Texas Instruments SN65LVDS179 devices are differential line drivers and receivers that use low-voltage differential signalling (LVDS) to achieve signalling rates as high as 400 Mbps. The TIA/EIA-644 standard-compliant electrical interface provides a minimum differential output voltage magnitude of 247 mV into a 100-Ω load and receipt of 100-mV signals with up to 1 V of ground potential difference between a transmitter and receiver.

Meets or Exceeds the Requirements of ANSI
TIA/EIA-644-1995 Standard
Full-Duplex Signalling Rates up to 150 Mbps
Bus-Pin ESD Exceeds 12 kV
Operates From a Single 3.3-V Supply
Low-Voltage Differential Signalling With Typical
Output Voltages of 350 mV and a 100-Ω Load
Propagation Delay Times
Driver: 1.7 ns Typical
Receiver: 3.7 ns Typical
Power Dissipation at 200 MHz
Driver: 25 mW Typical
Receiver: 60 mW Typical
LVTTL Input Levels Are 5-V Tolerant
Receiver Maintains High Input Impedance With
VCC < 1.5 V
Receiver Has Open-Circuit Fail Safe


LVDS Communication


Low Voltage Differential Signaling, or LVDS, is an electrical signaling system that can run at very high speeds over cheap, twisted-pair copper cables.


Applications: Firewire, SATA, SCSI
