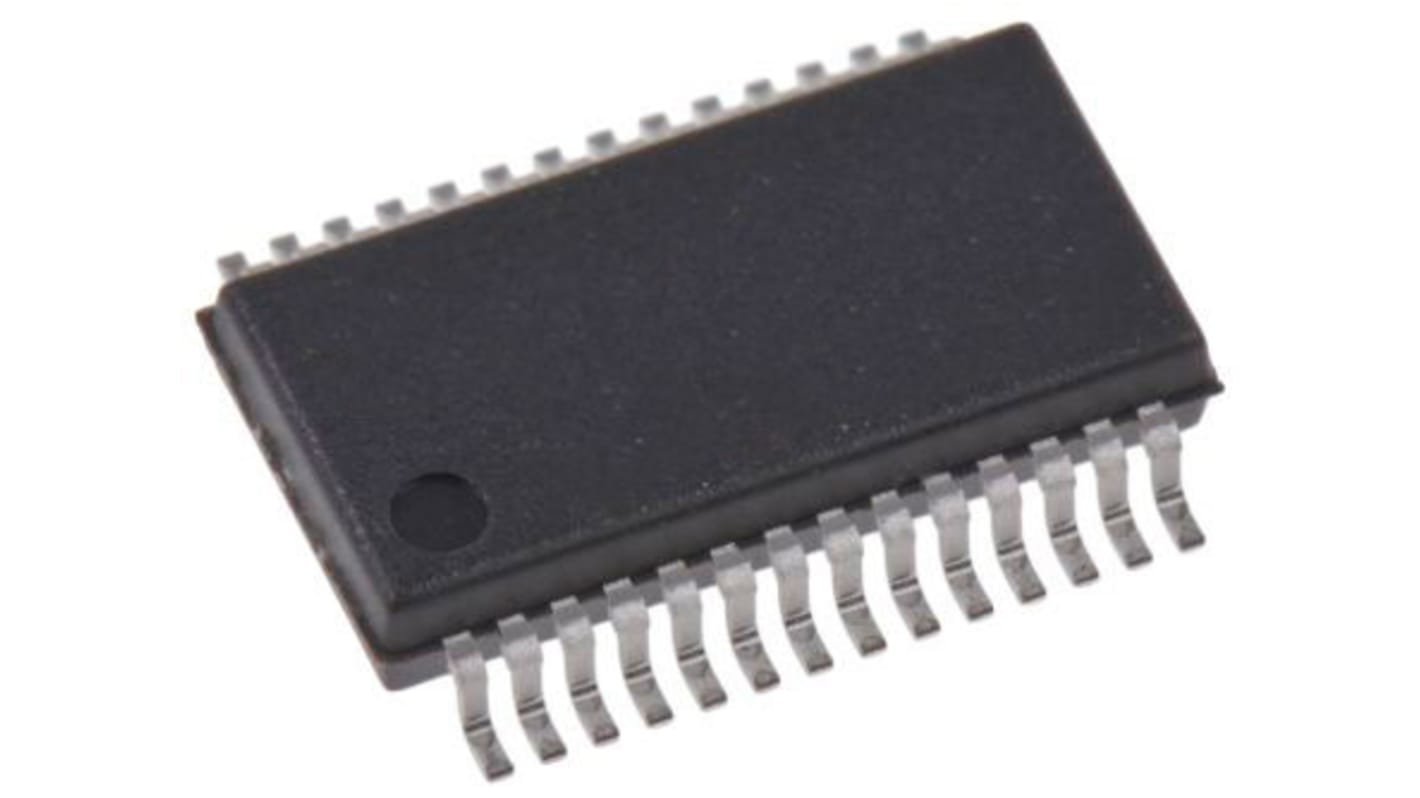

Maxim Integrated MAX9206EAI+, LVDS Deserializer LVCMOS, LVTTL, 28-Pin SSOP

Se alla LVDS Interface Ics

Antal (1 rör med 46 enheter)*

4 599,724 kr

(exkl. moms)

5 749,632 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Håller på att utgå
  • Slutlig(a) 184 enhet(er), redo att levereras
Enheter
Per enhet
Per Rør*
46 +99,994 kr4 599,72 kr

*vägledande pris

RS-artikelnummer:
190-6272
Tillv. art.nr:
MAX9206EAI+
Tillverkare / varumärke:
Maxim Integrated
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Maxim Integrated

IC Type

Deserializer IC

Output Type

LVCMOS, LVTTL

Transmission Data Rate

600Mbps

Number of Elements per Chip

1

Mounting Type

Surface Mount

Package Type

SSOP

Pin Count

28

Differential Input High Threshold Voltage

100mV

Differential Input Low Threshold Voltage

-100mV

Dimensions

10.33 x 5.38 x 1.78mm

Height

1.78mm

Length

10.33mm

Maximum Operating Supply Voltage

-0.3 V

Maximum Operating Temperature

+85 °C

Width

5.38mm

Minimum Operating Temperature

-40 °C

Minimum Operating Supply Voltage

4 V

Stand-Alone Deserializer (vs. SerDes) Ideal for Unidirectional Links
Automatic Clock Recovery
Allow Hot Insertion and Synchronization Without System Interruption
BLVDS Serial Input Rated for Point-to-Point and Bus Applications
Fast Pseudorandom Lock
Wide Reference Clock Input Range
16MHz to 45MHz (MAX9206)
40MHz to 60MHz (MAX9208)
High 720psP-P Jitter Tolerance (MAX9206)
Low 30mA Supply Current (MAX9206 at 16MHz)
10-Bit Parallel LVCMOS/LVTTL Output
Up to 600Mbps Throughput (MAX9208)
Programmable Output Strobe Edge
Pin Compatible to DS92LV1212A and DS92LV1224
Applications
Add/Drop Multiplexers
Backplane and Interconnect Applications
Cell Phone Base Stations
Digital Cross-Connects
DSLAM
Network Routers and Switches
