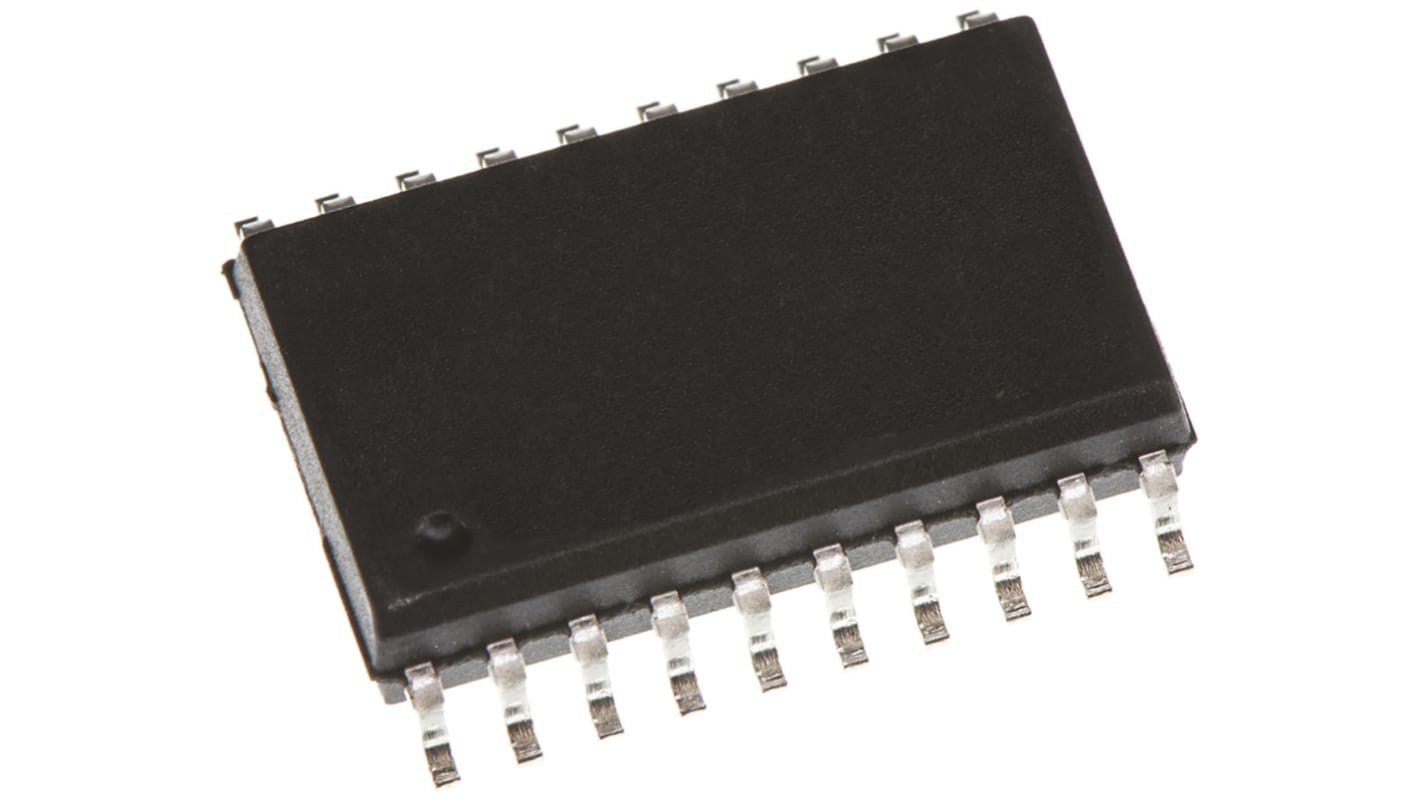

Texas Instruments SN74ALS518DW, 8bit-Bit, Identity Comparator, Open Collector, Non-Inverting, 20-Pin SOIC

  • RS-artikelnummer 162-6655
  • Tillv. art.nr SN74ALS518DW
  • Tillverkare / varumärke Texas Instruments
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): MY
Produktdetaljer

74ALS Family, Texas Instruments

Advanced Low-Power Schottky Bipolar Logic
Operating Voltage 4.5 to 5.5
Compatibility: Input TTL, Output TTL

74ALS Family

Specifikationer
Attribute Value
Logic Family ALS
Logic Function Identity Comparator
Output Function A=B
Number of Bits 8bit
Output Type Open Collector
Polarity Non-Inverting
Mounting Type Surface Mount
Package Type SOIC
Pin Count 20
Maximum High Level Output Current 0.1mA
Maximum Low Level Output Current 24mA
Maximum Propagation Delay Time @ Maximum CL 33 ns @ 50 pF
Dimensions 13 x 7.6 x 2.35mm
Height 2.35mm
Maximum Operating Temperature +70 °C
Propagation Delay Test Condition 50pF
Length 13mm
Maximum Operating Supply Voltage 5.5 V
Minimum Operating Temperature 0 °C
Minimum Operating Supply Voltage 4.5 V
Width 7.6mm
Pris (ex. moms) Each (In a Tube of 25)
62,648 kr
(exkl. moms)
78,31 kr
(inkl. moms)
Enheter
Per unit
Per Tube*
25 +
62,648 kr
1 566,20 kr
På grund av tillfälligt begränsad tillgång kan RS för närvarande tyvärr inte hantera restorder
