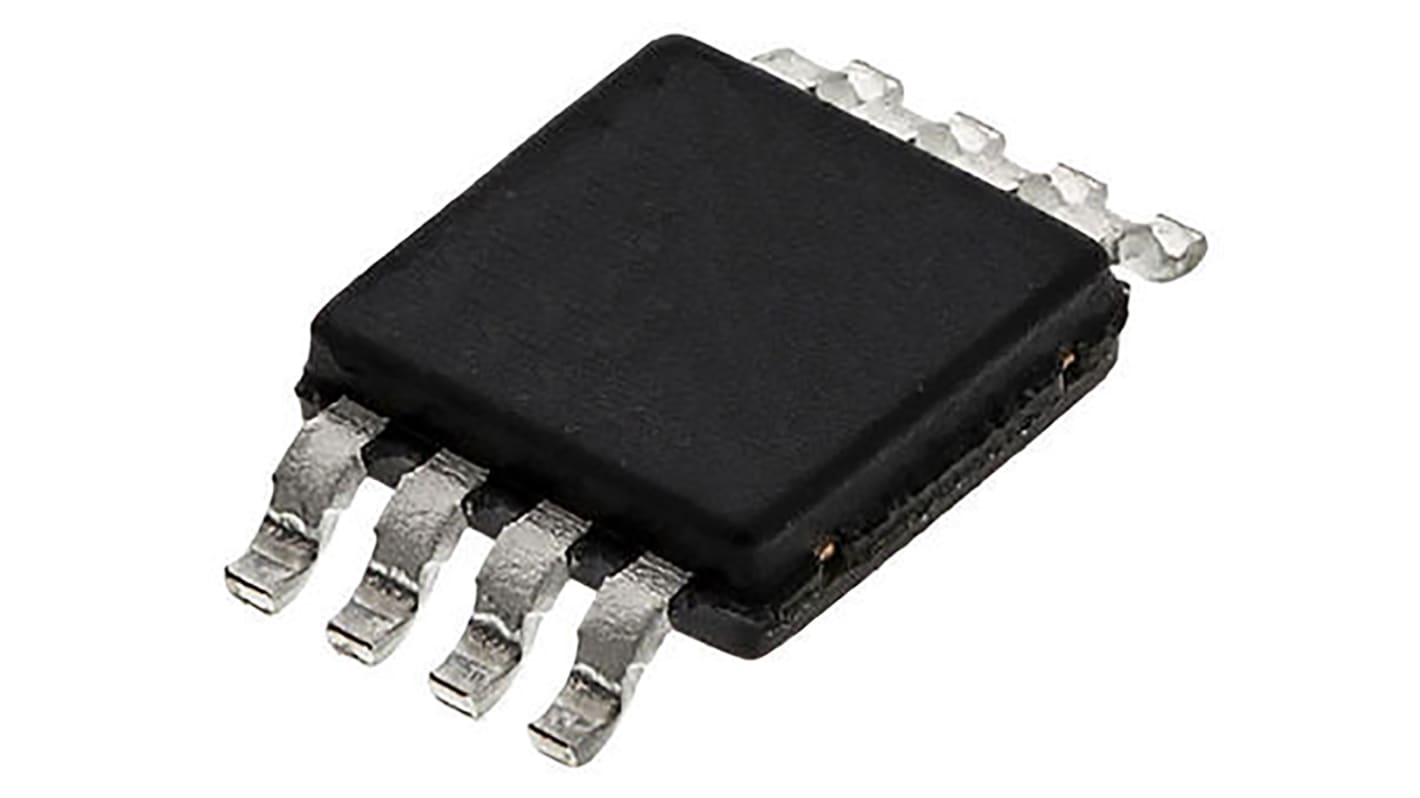

Texas Instruments TPS7A3001DGNT Negative Voltage Regulator, 200mA, Adjustable, -33 V, 2.5% 8-Pin, MSOP

  • RS-artikelnummer 922-2410
  • Tillv. art.nr TPS7A3001DGNT
  • Tillverkare / varumärke Texas Instruments
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Adjustable LDO (Low Dropout) Linear Voltage Regulators, Up to 250mA, Texas Instruments

LDO (Low Dropout) Linear Voltage Regulators, Texas Instruments

A range of Texas Instruments Low Dropout (LDO) Linear Voltage regulators. LDO voltage regulators are able to operate with a small input-output differential making them suitable for a variety of applications where conventional regulators would be unsatisfactory. The latest generation of LDO regulators offers low quiescent current levels and reduced output noise together with excellent line voltage regulation and high PSRR.

Specifikationer
Attribute Value
Output Voltage -33 V
Maximum Output Current 200mA
Package Type MSOP
Output Type Adjustable
Mounting Type Surface Mount
Minimum Input Voltage -36 V
Maximum Input Voltage -3 V
Pin Count 8
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +150 °C
Number of Outputs 1
Polarity Negative
Load Regulation 0.04 %/V
Series TPS7A30
Height 1.1mm
Length 3.1mm
Accuracy 2.5%
Dropout Voltage Measurement Current 100 mA
Line Regulation 0.14 %/V
Reference Voltage -1.166V
Quiescent Current 0.05mA
Width 3.1mm
Dimensions 3.1 x 3.1 x 1.1mm
Typical Dropout Voltage @ Current 216 mV @ 100 mA
Pris (ex. moms) Each (On a Reel of 250)
25,637 kr
(exkl. moms)
32,046 kr
(inkl. moms)
Enheter
Per unit
Per Reel*
250 - 500
25,637 kr
6 409,25 kr
750 +
23,329 kr
5 832,25 kr
