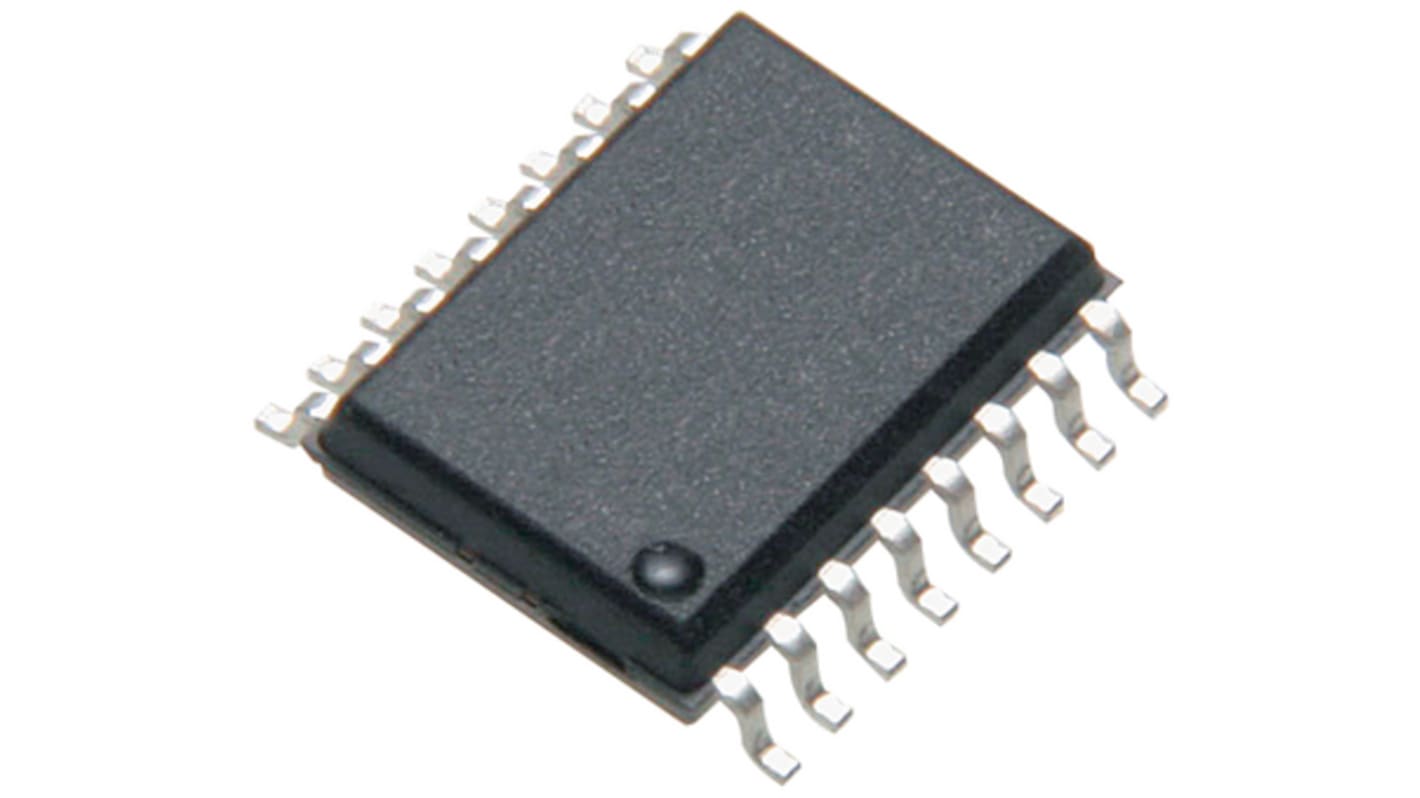

IC Haus IC-VX SO16W Triple-Channel Framer & Line Interface, Differential, 16-Pin WSOIC

Se alla Line Interface ICs

Antal (1 enhet)*

113,54 kr

(exkl. moms)

141,92 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • Slutlig(a) 146 enhet(er), redo att levereras från en annan plats
Enheter
Per enhet
1 +113,54 kr

*vägledande pris

RS-artikelnummer:
285-8246
Distrelec artikelnummer:
173-50-888
Tillv. art.nr:
IC-VX SO16W
Tillverkare / varumärke:
IC Haus
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

IC Haus

Number of Channels per Chip

3

Output Type

Differential

Package Type

WSOIC

Pin Count

16

COO (Country of Origin):
TW
The 3-channel differential line driver designed for line driver applications in engineering. It features 6 current-limited and short-circuit-proof push-pull drivers, with a guaranteed driver current of either 30mA or 100mA. The outputs are compatible with TTL and CMOS levels, and the device also includes integrated free-wheeling diodes and Schmitt trigger inputs with pull-up current sources and clamping diodes. It operates in an extended temperature range of -25 to 85 degrees Celsius and is available in SO16W package.

6 current-limited and short-circuit-proof push-pull driver
Guaranteed driver current can be set to 30mA or 100mA
Outputs compatible to TTL and CMOS levels
Integrated free-wheeling diodes
Short switching times and high slew rate
Schmitt trigger inputs with integrated pull-up current sources and clamping diodes
Operating points can be shifted by separate feed of inputs
On-chip thermal shutdown with hysteresis
