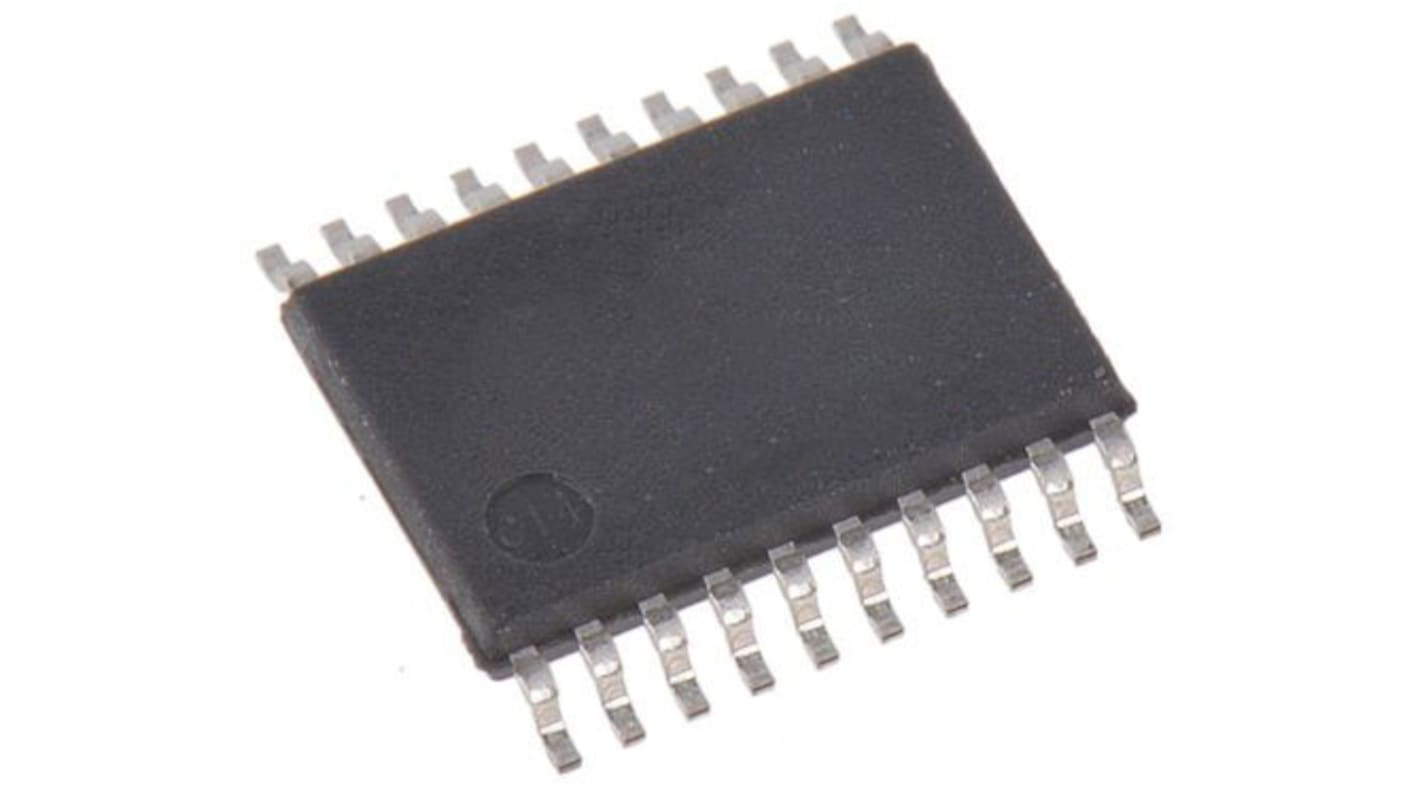

Maxim Integrated MAX3223CUP+ Line Transceiver, 20-Pin TSSOP
- RS-artikelnummer:
- 190-6209
- Tillv. art.nr:
- MAX3223CUP+
- Tillverkare / varumärke:
- Maxim Integrated
Tyvärr har vi inte denna produkt i lager.
Restorder ej möjlig på grund av bristande allokering. Den evt. angivna systemtekniska leveranstiden är inte giltig.
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 74)
48,397 kr
(exkl. moms)
60,496 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 74 + | 48,397 kr | 3 581,378 kr |
- RS-artikelnummer:
- 190-6209
- Tillv. art.nr:
- MAX3223CUP+
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- US
Produktdetaljer
Integrated Charge Pump Circuitry Simplifies Power Requirements
Eliminates the Need for a ±12V Supply
Operation From a Single +3.3V or +5V Supply
1μA Supply Current in Shutdown Mode Saves Power
AutoShutdown Feature is Enabled After No Activity on Receiver Inputs for 30μs
Software Control Option for Shutdown
Applications
Battery-Powered Equipment
Hand-Held Equipment
Peripherals
Portable Diagnostics Equipment
Eliminates the Need for a ±12V Supply
Operation From a Single +3.3V or +5V Supply
1μA Supply Current in Shutdown Mode Saves Power
AutoShutdown Feature is Enabled After No Activity on Receiver Inputs for 30μs
Software Control Option for Shutdown
Applications
Battery-Powered Equipment
Hand-Held Equipment
Peripherals
Portable Diagnostics Equipment
Specifikationer
Attribute | Value |
|---|---|
| IC Type | Line Transceiver IC |
| Input Type | Single Ended |
| Number of Transmitters | 2 (RS-232) |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 20 |
| Dimensions | 6.6 x 4.5 x 0.95mm |
