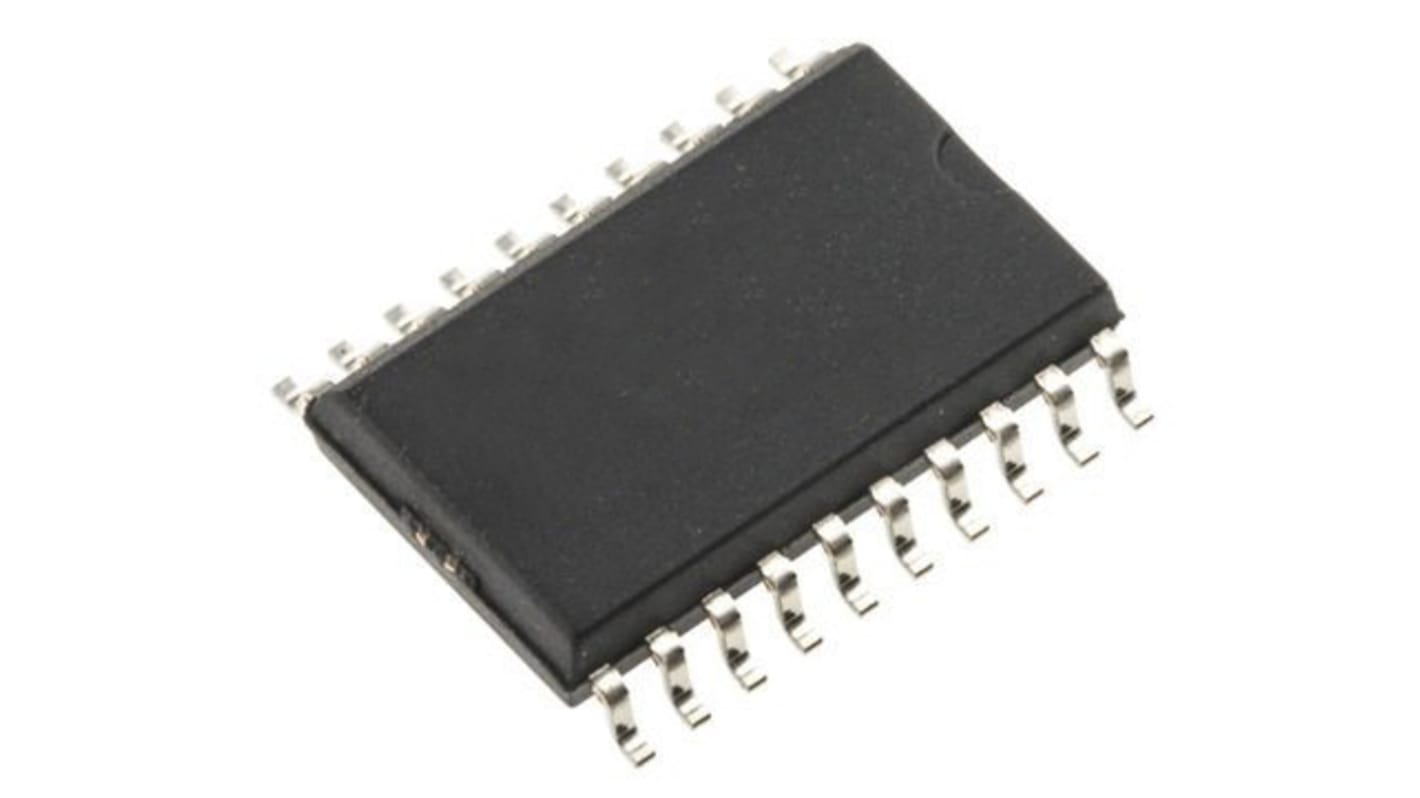

onsemi 74LCX244WM 10-Channel Buffer & Line Driver, 3-State, 20-Pin SOIC
- RS-artikelnummer:
- 186-8393
- Tillv. art.nr:
- 74LCX244WM
- Tillverkare / varumärke:
- onsemi
790 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
7,064 kr
(exkl. moms)
8,83 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 10 - 10 | 7,064 kr | 70,64 kr |
| 20 - 40 | 5,057 kr | 50,57 kr |
| 50 - 90 | 4,924 kr | 49,24 kr |
| 100 - 240 | 4,802 kr | 48,02 kr |
| 250 + | 4,68 kr | 46,80 kr |
- RS-artikelnummer:
- 186-8393
- Tillv. art.nr:
- 74LCX244WM
- Tillverkare / varumärke:
- onsemi
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
74LCX Family, Fairchild Semiconductor
Advanced High-Speed (low-voltage) CMOS Logic
Operating Voltage Range: 2.0 to 3.6V
5V tolerant inputs & outputs
Operating Voltage Range: 2.0 to 3.6V
5V tolerant inputs & outputs
74LCX Family
Specifikationer
Attribute | Value |
|---|---|
| Logic Family | LCX |
| Logic Function | Buffer |
| Number of Channels per Chip | 10 |
| IC Type | Buffer & Line Driver IC |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 20 |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
| Maximum Propagation Delay Time @ Maximum CL | 7.5 ns @ 50 pF |
| Dimensions | 13 x 7.6 x 2.34mm |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Propagation Delay Test Condition | 50pF |
