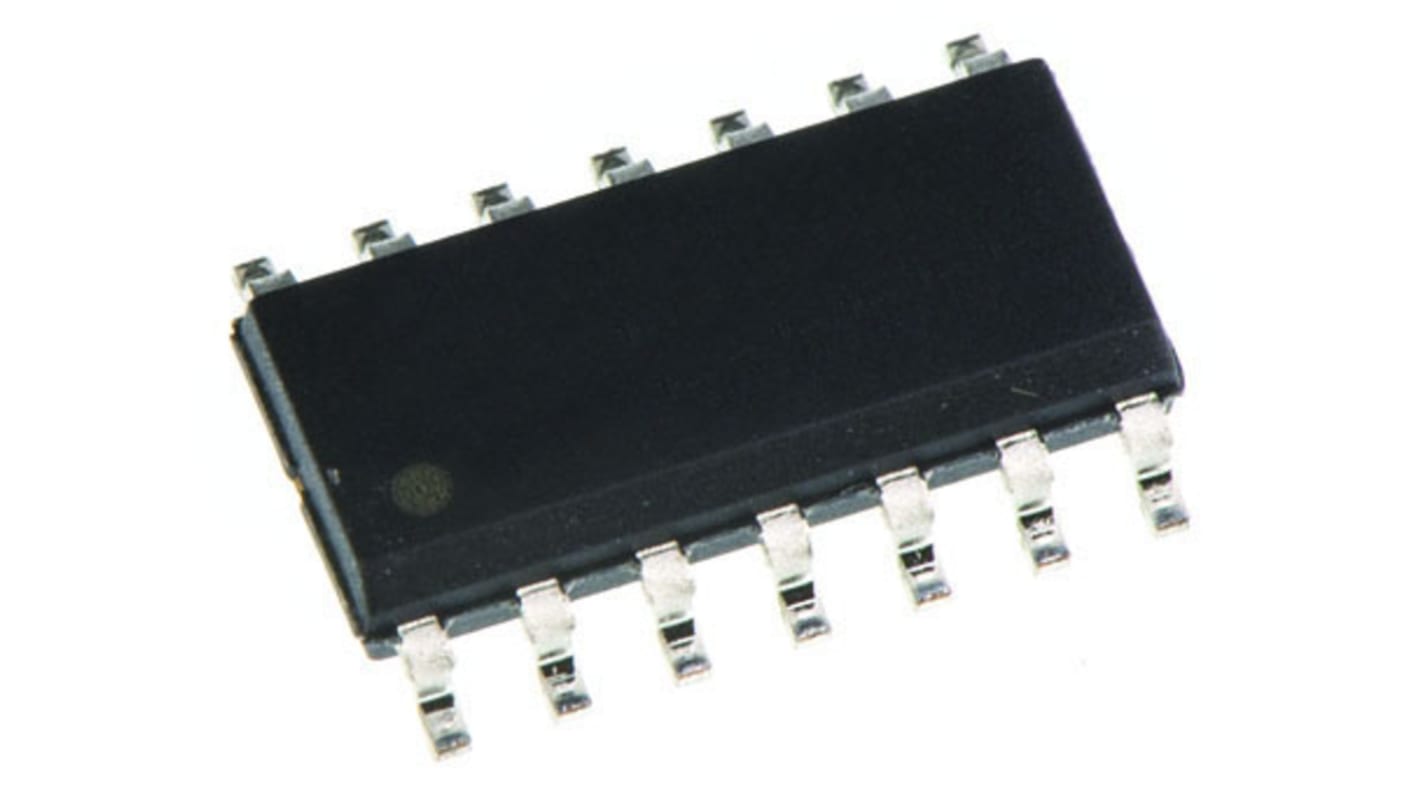

Texas Instruments SN74AHC125D Quad-Channel Buffer & Line Driver, 3-State, 14-Pin SOIC

Se alla Line Interface ICs
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
179-2160
Tillv. art.nr:
SN74AHC125D
Tillverkare / varumärke:
Texas Instruments
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Texas Instruments

Logic Family

AHC

Logic Function

Buffer, Line Driver

Number of Channels per Chip

4

Input Type

Single Ended

Output Type

3 State

Polarity

Non-Inverting

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

14

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

Maximum High Level Output Current

-8mA

Maximum Low Level Output Current

8mA

Maximum Propagation Delay Time @ Maximum CL

11.5 ns @ 3.3 V

Dimensions

8.65 x 3.91 x 1.58mm

Maximum Operating Supply Voltage

5.5 V

Height

1.58mm

Minimum Operating Supply Voltage

2 V

Length

8.65mm

Width

3.91mm

Propagation Delay Test Condition

50pF

74AHC Family, Texas Instruments


Process: CMOS
Mains voltage: 2 to 5.5V


74AHC Family
