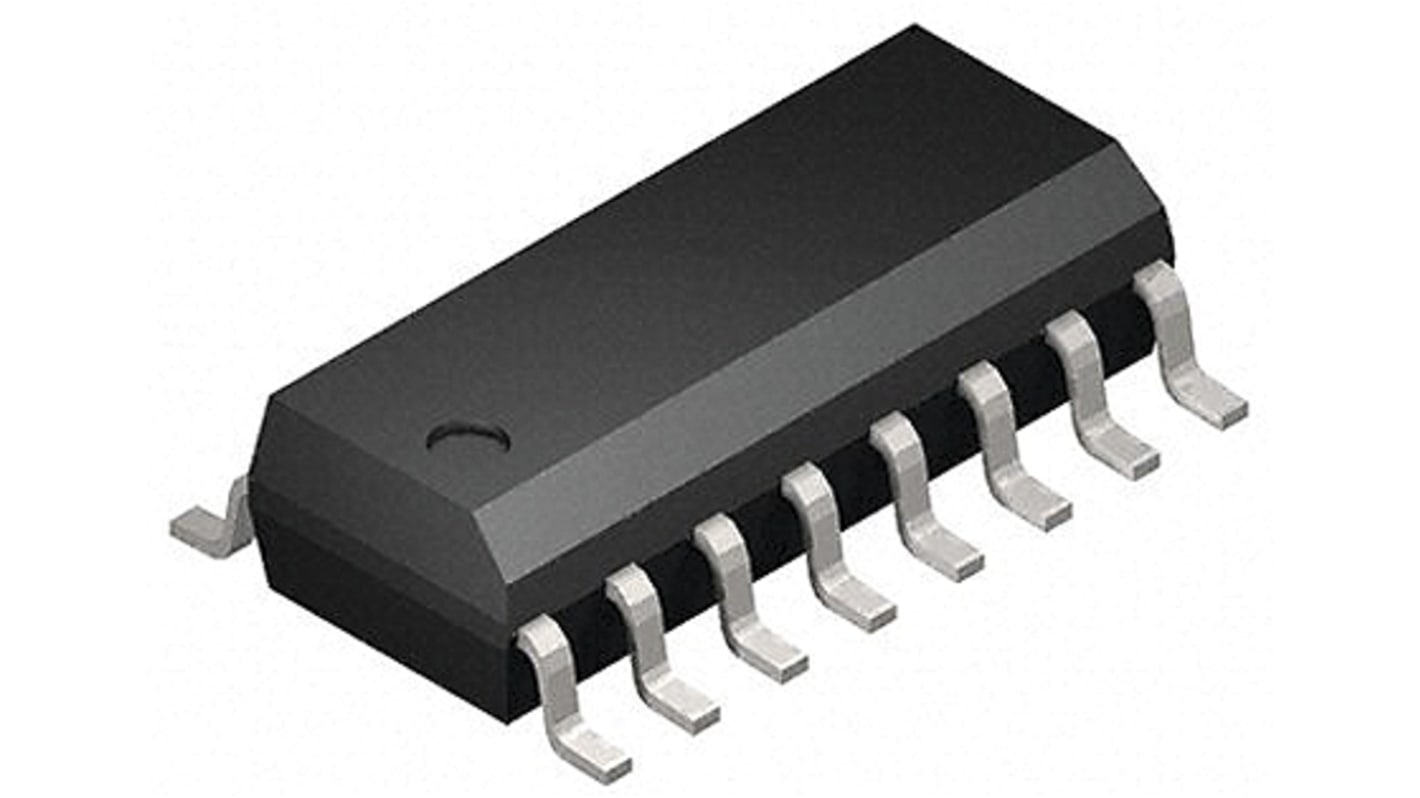

Toshiba 74HC4050D Hex-Channel Buffer & Line Driver, CMOS, 16-Pin SOIC

Se alla Line Interface ICs
Mängdrabatt möjlig

Antal (1 förpackning med 20 enheter)*

101,58 kr

(exkl. moms)

126,98 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 200 enhet(er) från den 19 januari 2026
  • Dessutom levereras 2 140 enhet(er) från den 26 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per förpackning*
20 - 805,079 kr101,58 kr
100 - 4803,892 kr77,84 kr
500 - 9802,963 kr59,26 kr
1000 +2,358 kr47,16 kr

*vägledande pris

Förpackningsalternativ:
RS-artikelnummer:
171-3601
Tillv. art.nr:
74HC4050D
Tillverkare / varumärke:
Toshiba
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Toshiba

Logic Family

74HC

Number of Channels per Chip

6

IC Type

Hex Buffer IC

Output Type

CMOS

Polarity

Non-Inverting

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

16

Maximum High Level Output Current

-7.8mA

Maximum Low Level Output Current

7.8mA

Maximum Propagation Delay Time @ Maximum CL

145 ns @ 150 pF

Dimensions

10.2 x 3.9 x 1.38mm

Maximum Operating Supply Voltage

6 V

Minimum Operating Supply Voltage

2 V

Propagation Delay Test Condition

150pF

The 74HC4049D and 74HC4050D are high speed CMOS HEX BUFFERs fabricated with silicon gate C2MOS technology. They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The 74HC4049D is an inverting buffer, while the 74HC4050D is a non-inverting buffer. The internal circuits are composed of 3-stages (74HC4049D) or 2-stages (74HC4050D) of inverter, which provided high noise immunity and stable output. Input protection circuits are different from those of other high speed CMOS IC's. They eliminate the diodes on the VCC side thus providing of logic-level conversion from high-level voltages up to 15 V to low-level voltages. They are useful for battery back up circuits, because input voltage can be applied on IC's which are not biased by VCC

High speed: tpd = 8 ns (typ.) at VCC = 6.0 V
Low power dissipation: ICC = 1.0 μA (max) at Ta = 25 
Balanced propagation delays: tPLH ≈ tPHL
Wide operating voltage range: VCC(opr) = 2.0 V to 6.0 V
