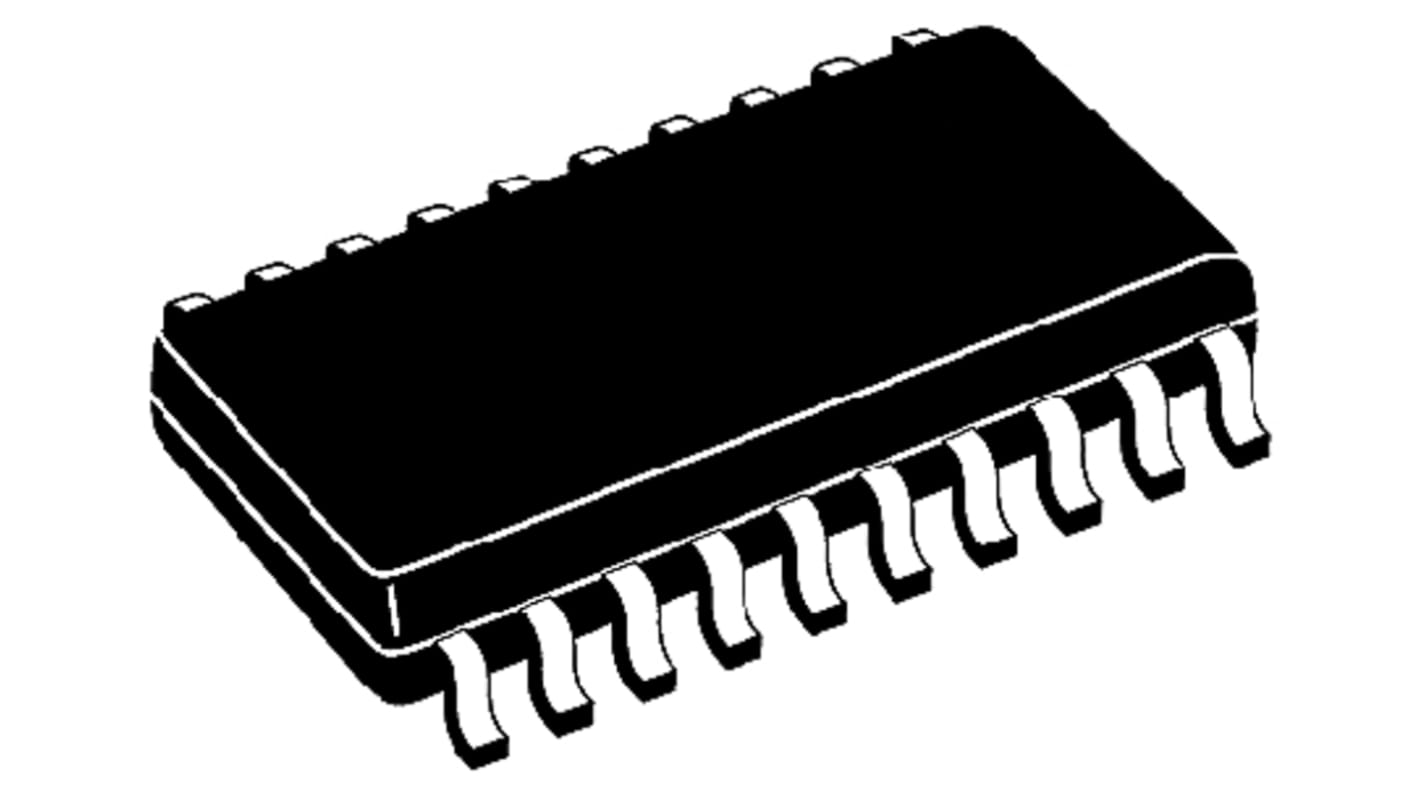

Nexperia 74ABT244D,602 Octal-Channel Buffer & Line Driver, 3-State, 20-Pin SOIC

Se alla Line Interface ICs
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
170-8072
Tillv. art.nr:
74ABT244D,602
Tillverkare / varumärke:
Nexperia
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Nexperia

Logic Family

74ABT

Logic Function

Buffer, Line Driver

Number of Channels per Chip

8

Input Type

Single Ended

Output Type

3 State

Polarity

Non-Inverting

Mounting Type

Surface Mount

Package Type

SO

Pin Count

20

Maximum High Level Output Current

-32mA

Maximum Low Level Output Current

64mA

Maximum Propagation Delay Time @ Maximum CL

6.6 ns @ 50 pF

Dimensions

13 x 7.6 x 2.45mm

Maximum Operating Supply Voltage

5.5 V

Minimum Operating Supply Voltage

4.5 V

Propagation Delay Test Condition

50pF

The 74ABT244 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive. The 74ABT244 device is an octal buffer that is ideal for driving bus lines. The device features two Output Enables (1OE, 2OE), each controlling four of the 3-State outputs.

Mixed 5 V and 3.3 V applications
Improved current drive and voltage level of signals
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
TTL input options
3-state output options
Overvoltage tolerant options
Registered options
Key applications
LCD TV
Cell phones
Industrial monitoring
STB
