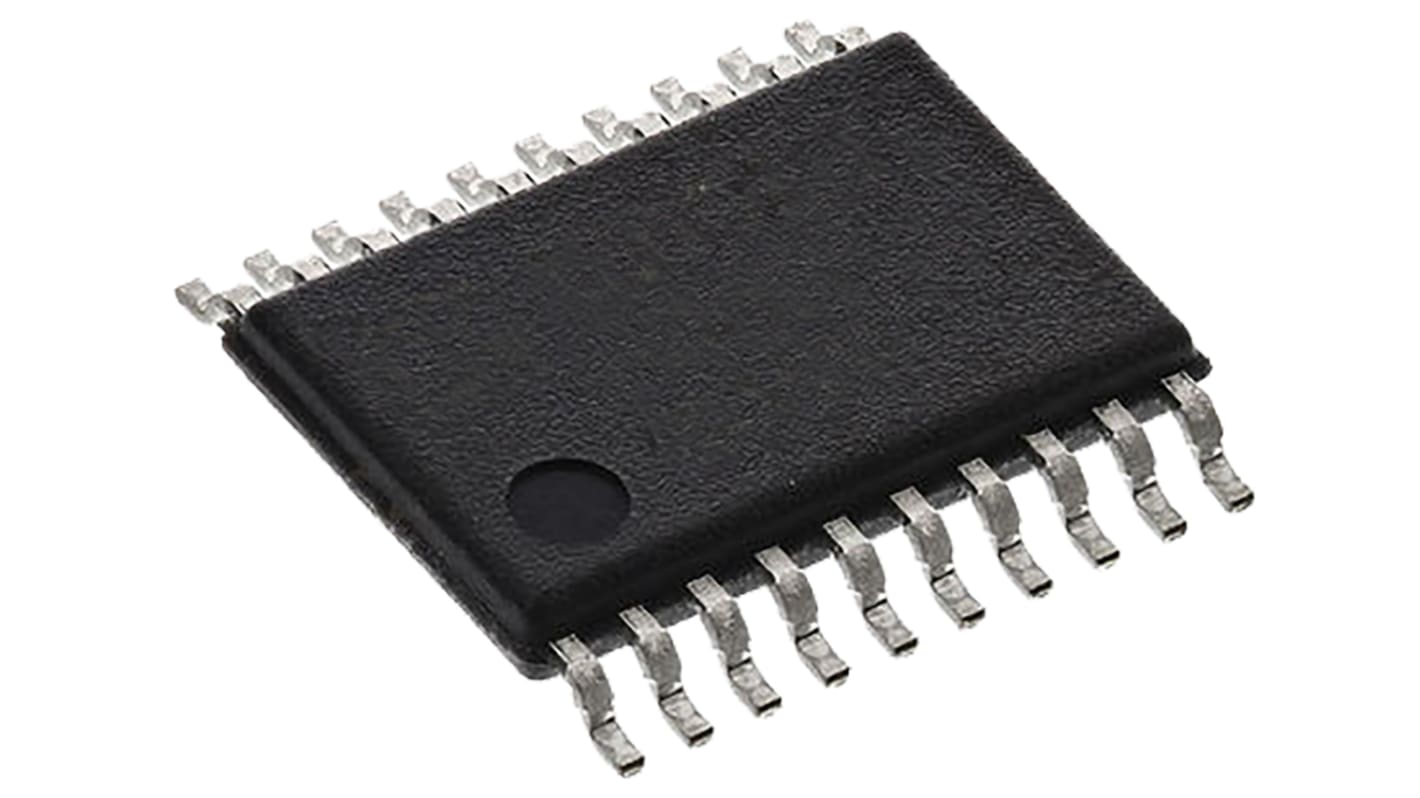

Nexperia 74HC244PW,112 Octal-Channel Buffer & Line Driver, 3-State, 20-Pin TSSOP

Se alla Line Interface ICs
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer tillbaka i lager, RS har för avsikt att ta bort den från vårt utbud snart.
RS-artikelnummer:
165-9886
Tillv. art.nr:
74HC244PW,112
Tillverkare / varumärke:
Nexperia
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Nexperia

Logic Family

74HC

Logic Function

Buffer, Line Driver

IC Type

Buffer & Line Driver IC

Number of Channels per Chip

8

Input Type

CMOS

Output Type

3 State

Polarity

Non-Inverting

Mounting Type

Surface Mount

Package Type

TSSOP

Pin Count

20

Maximum High Level Output Current

-7.8mA

Maximum Low Level Output Current

7.8mA

Maximum Propagation Delay Time @ Maximum CL

165ns

Dimensions

6.6 x 4.5 x 0.95mm

Minimum Operating Supply Voltage

2 V

Maximum Operating Supply Voltage

6 V

Propagation Delay Test Condition

50pF

COO (Country of Origin):
TH

74HC Family Inverters & Buffers, Nexperia


A range of NXP Inverters and Buffers from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.

High-Speed CMOS Logic
Operating Voltage: 2 to 6 V
Compatibility: Input CMOS, Output CMOS


74HC Family
