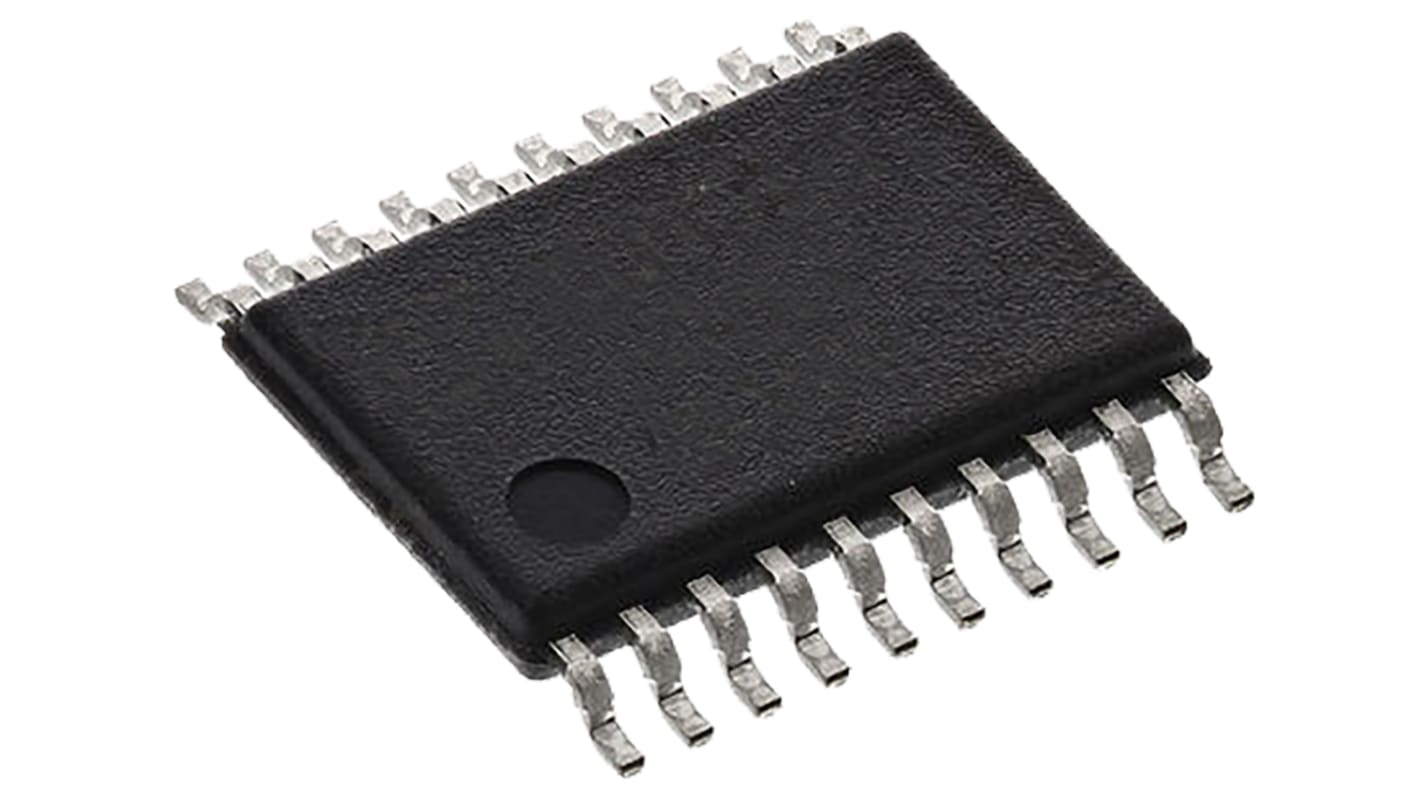

Texas Instruments SN74LV244APWR Octal-Channel Buffer & Line Driver, 3-State, 20-Pin TSSOP
- RS-artikelnummer:
- 162-7434
- Tillv. art.nr:
- SN74LV244APWR
- Tillverkare / varumärke:
- Texas Instruments
2000 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 2000)
2,765 kr
(exkl. moms)
3,456 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 2000 + | 2,765 kr | 5 530,00 kr |
- RS-artikelnummer:
- 162-7434
- Tillv. art.nr:
- SN74LV244APWR
- Tillverkare / varumärke:
- Texas Instruments
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
74LV Family, Texas Instruments
Low-Voltage CMOS logic
Operating Voltage: 2 to 5.5
Compatibility: Input LVTTL/TTL, Output LVCMOS
Operating Voltage: 2 to 5.5
Compatibility: Input LVTTL/TTL, Output LVCMOS
74LV Family
Specifikationer
Attribute | Value |
|---|---|
| Logic Family | LV |
| Logic Function | Buffer, Line Driver |
| Number of Channels per Chip | 8 |
| IC Type | Buffer & Line Driver IC |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 20 |
| Maximum High Level Output Current | -16mA |
| Maximum Low Level Output Current | 16mA |
| Maximum Propagation Delay Time @ Maximum CL | 15.3 ns @ 2.5 V |
| Dimensions | 6.5 x 4.4 x 1.15mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Supply Voltage | 2 V |
| Propagation Delay Test Condition | 50pF |
