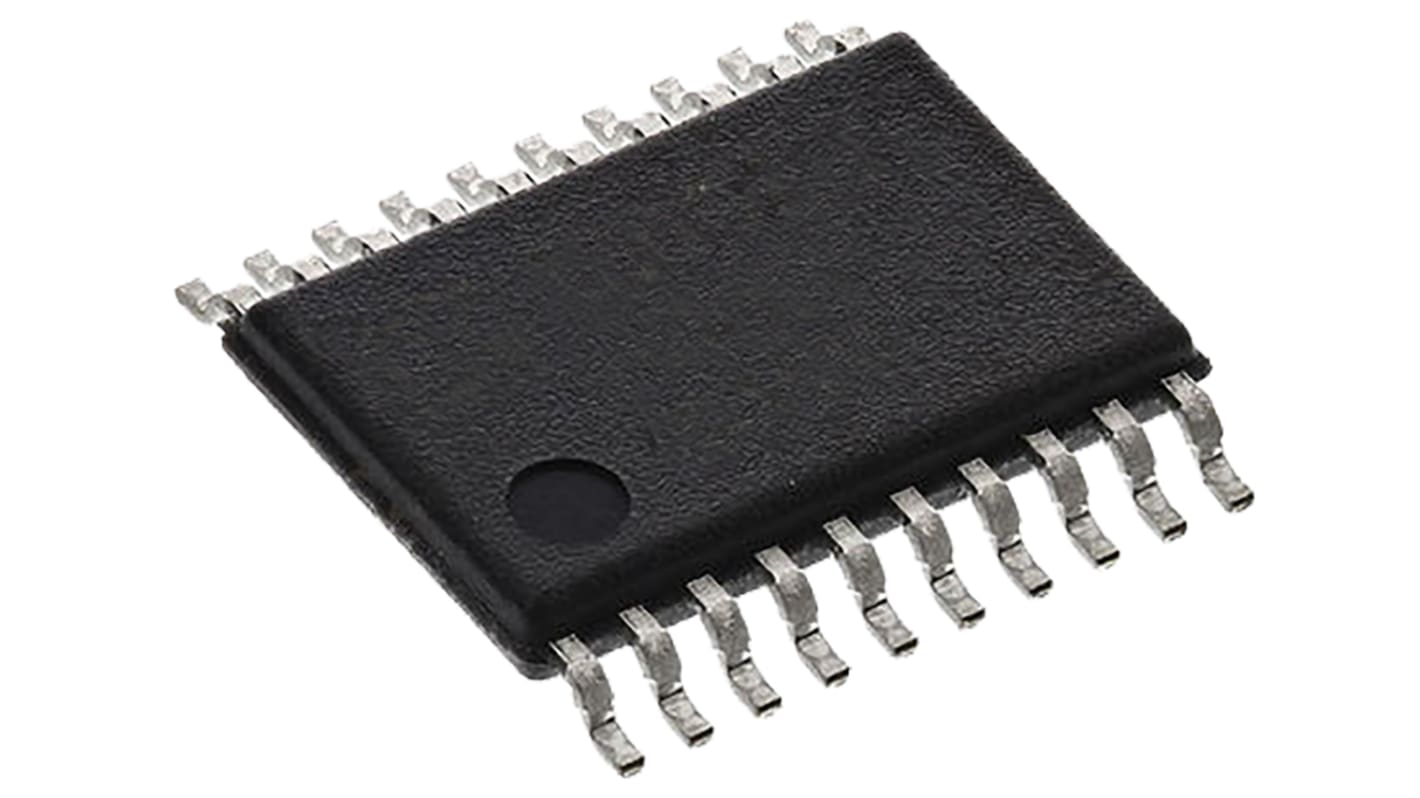

Texas Instruments SN74ACT244PW Octal-Channel Buffer & Line Driver, 3-State, 20-Pin TSSOP

Se alla Line Interface ICs
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
RS-artikelnummer:
162-7312
Tillv. art.nr:
SN74ACT244PW
Tillverkare / varumärke:
Texas Instruments
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Texas Instruments

Logic Family

ACT

Logic Function

Buffer, Line Driver

Number of Channels per Chip

8

Input Type

Single Ended

Output Type

3 State

Polarity

Non-Inverting

Mounting Type

Surface Mount

Package Type

TSSOP

Pin Count

20

Maximum High Level Output Current

-24mA

Maximum Low Level Output Current

24mA

Maximum Propagation Delay Time @ Maximum CL

9 ns @ 5 V

Dimensions

6.5 x 4.4 x 1.15mm

Minimum Operating Supply Voltage

4.5 V

Maximum Operating Supply Voltage

5.5 V

Propagation Delay Test Condition

50pF

Uppfyller ej RoHS

74ACT Family, Buffer/Driver, Texas Instruments


Advanced CMOS Logic
Operating Voltage: 4.5 to 5.5
Compatibility: Input TTL, Output CMOS


74ACT Family
