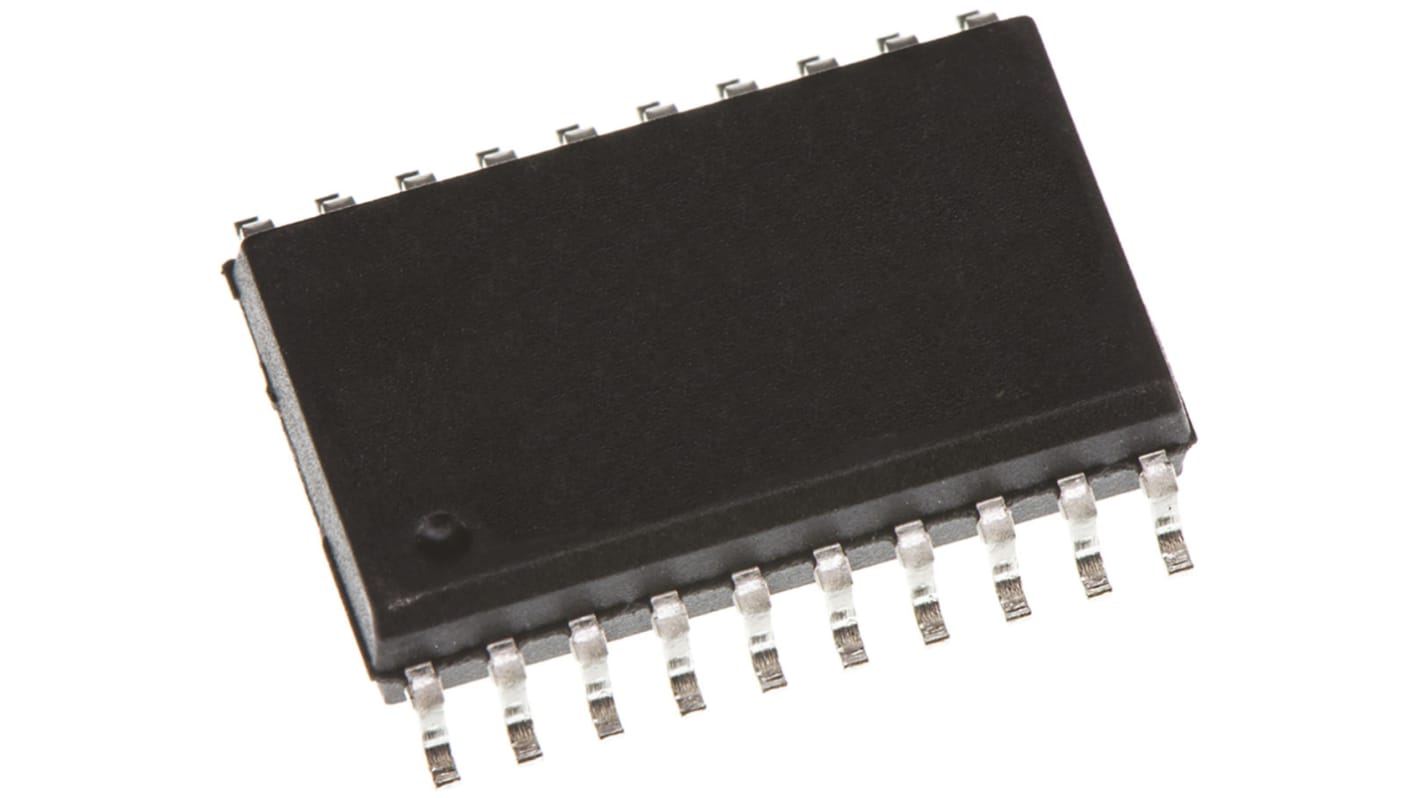

Texas Instruments SN74BCT760DW Octal-Channel Buffer & Line Driver, 3-State, Open Collector, 20-Pin SOIC

RS-artikelnummer:: 162-5276
Tillv. art.nr:: SN74BCT760DW
Tillverkare / varumärke:: Texas Instruments

Texas Instruments SN74BCT760DW Octal-Channel Buffer & Line Driver, 3-State, Open Collector, 20-Pin SOIC

Inte tillgänglig

RS kommer inte längre att lagerföra denna produkt.

RS-artikelnummer:: 162-5276
Tillv. art.nr:: SN74BCT760DW
Tillverkare / varumärke:: Texas Instruments

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Texas Instruments
	Logic Family	BCT
	Logic Function	Buffer, Line Driver
	Number of Channels per Chip	8
	Input Type	Single Ended
	Output Type	3 State, Open Collector
	Polarity	Non-Inverting
	Mounting Type	Surface Mount
	Package Type	SOIC
	Pin Count	20
	Maximum High Level Output Current	-0.1mA
	Maximum Low Level Output Current	64mA
	Maximum Propagation Delay Time @ Maximum CL	9.5 ns @ 5 V
	Dimensions	12.8 x 7.52 x 2.35mm
	Minimum Operating Supply Voltage	4.5 V
	Maximum Operating Supply Voltage	5.5 V
	Propagation Delay Test Condition	50pF

	Välj alla
	Brand Texas Instruments
	Logic Family BCT
	Logic Function Buffer, Line Driver
	Number of Channels per Chip 8
	Input Type Single Ended
	Output Type 3 State, Open Collector
	Polarity Non-Inverting
	Mounting Type Surface Mount
	Package Type SOIC
	Pin Count 20
	Maximum High Level Output Current -0.1mA
	Maximum Low Level Output Current 64mA
	Maximum Propagation Delay Time @ Maximum CL 9.5 ns @ 5 V
	Dimensions 12.8 x 7.52 x 2.35mm
	Minimum Operating Supply Voltage 4.5 V
	Maximum Operating Supply Voltage 5.5 V
	Propagation Delay Test Condition 50pF

Datasheet

74BCT Family, Texas Instruments

BiCMOS TTL logic
Operating Voltage: 4.5 to 5.5
Compatibility: Input LVTTL/TTL, Output TTL

74BCT Family
