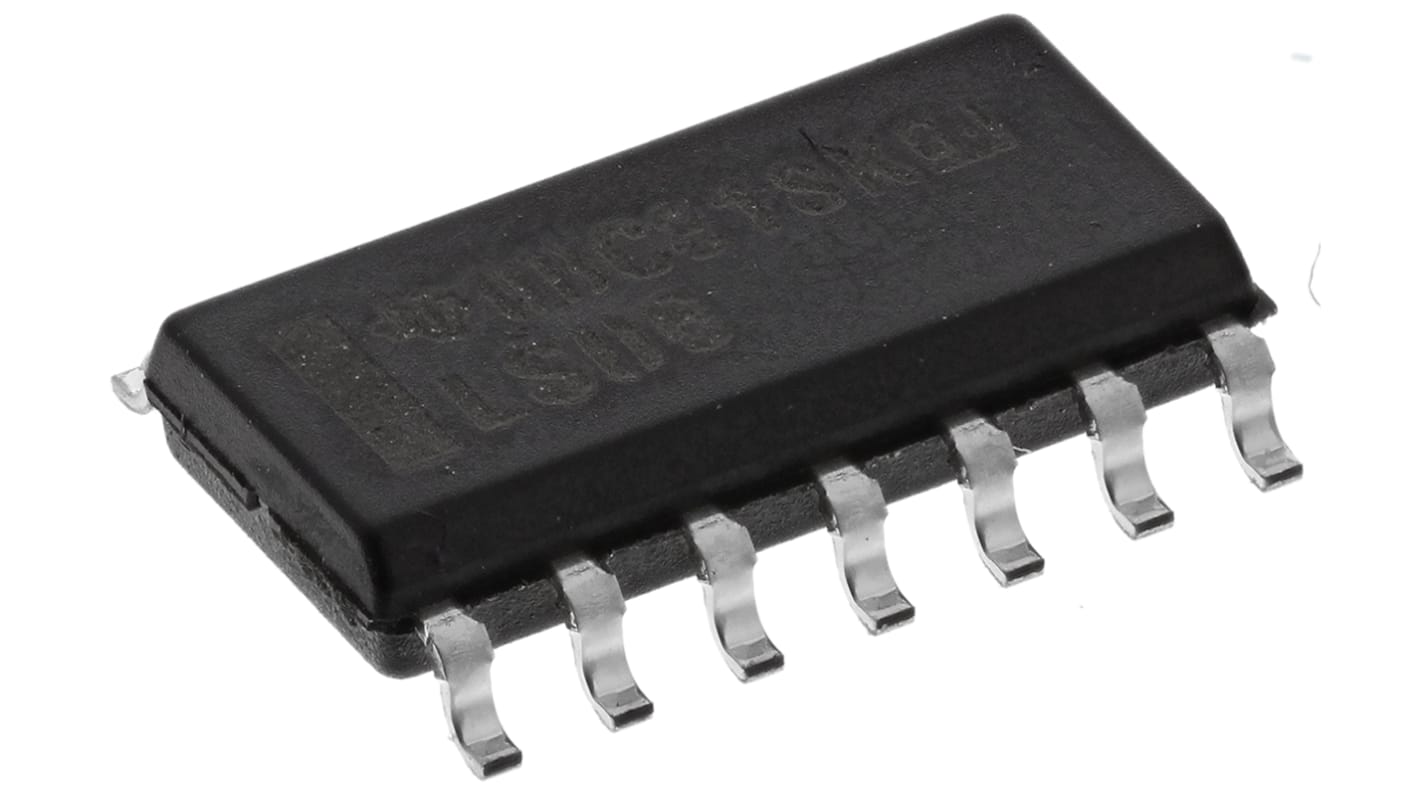

Texas Instruments SN74LS06D Hex-Channel Buffer & Line Driver, Open Collector, Inverting, 14-Pin SOIC

Se alla Line Interface ICs
För närvarande inte tillgänglig
Vi vet inte om den här artikeln kommer tillbaka i lager, RS har för avsikt att ta bort den från vårt utbud snart.
RS-artikelnummer:
121-9233
Tillv. art.nr:
SN74LS06D
Tillverkare / varumärke:
Texas Instruments
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Texas Instruments

Logic Family

LS

Logic Function

Buffer, Driver

Number of Channels per Chip

6

IC Type

Buffer & Line Driver IC

Input Type

Single Ended

Output Type

Open Collector

Polarity

Inverting

Mounting Type

Surface Mount

Package Type

SOIC

Pin Count

14

Maximum High Level Output Current

-0.25mA

Maximum Low Level Output Current

40mA

Maximum Propagation Delay Time @ Maximum CL

20 ns @ 5 V

Dimensions

8.65 x 3.91 x 1.58mm

Minimum Operating Supply Voltage

4.75 V

Maximum Operating Supply Voltage

5.25 V

Propagation Delay Test Condition

15pF

COO (Country of Origin):
DE

74LS Family Inverters & Buffers, Texas Instruments


Texas Instruments range of Inverters and Buffers from the 74LS Family of Low Power Schottky Logic ICs. The 74LS Family use bipolar junction technology coupled with Schottky diode clamps to achieve operating speeds equal to the original 74TTL family but with much lower power consumption.


74LS Family
