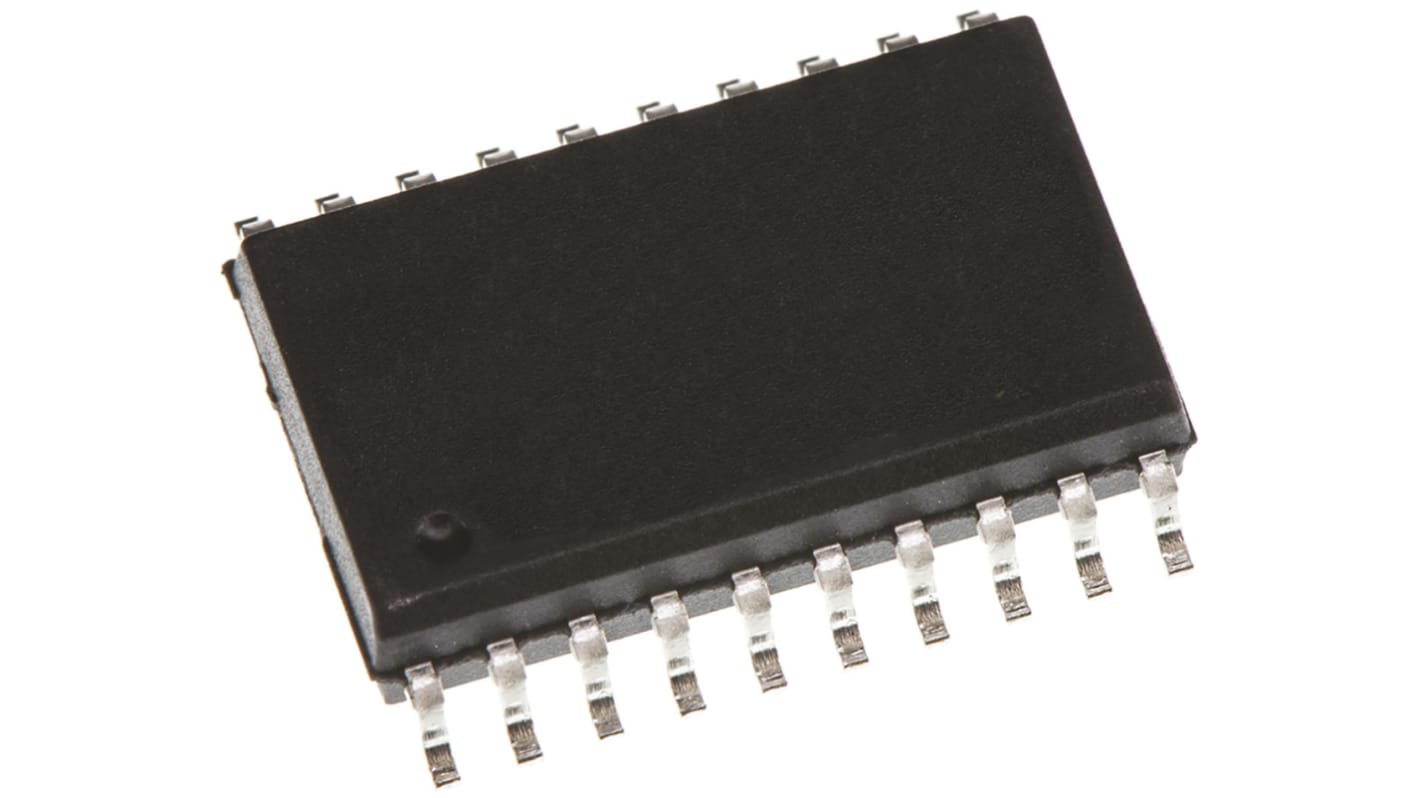

Nexperia 74HCT541D,652 Octal-Channel Buffer & Line Driver, 3-State, 20-Pin SOIC
- RS-artikelnummer:
- 103-8183
- Tillv. art.nr:
- 74HCT541D,652
- Tillverkare / varumärke:
- Nexperia
456 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett rör med 38)
7,025 kr
(exkl. moms)
8,781 kr
(inkl. moms)
| Enheter | Per unit | Per Tube* |
| 38 - 38 | 7,025 kr | 266,95 kr |
| 76 - 152 | 6,666 kr | 253,308 kr |
| 190 - 342 | 6,321 kr | 240,198 kr |
| 380 + | 5,971 kr | 226,898 kr |
- RS-artikelnummer:
- 103-8183
- Tillv. art.nr:
- 74HCT541D,652
- Tillverkare / varumärke:
- Nexperia
Lagstiftning och ursprungsland
Produktdetaljer
The 74HC541, 74HCT541 is an octal non-inverting buffer/line driver with 3-state outputs. The device features two output enables (OE1 and OE2). A HIGH on OEn causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Mixed 5 V and 3.3 V applications
Improved current drive and voltage level of signals
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
TTL input options
3-state output options
Overvoltage tolerant options
Registered options
Key applications
LCD TV
Cell phones
Industrial monitoring
STB
Improved current drive and voltage level of signals
Improved signal integrity for complex layouts
Wide supply voltage range
Low propagation delay
TTL input options
3-state output options
Overvoltage tolerant options
Registered options
Key applications
LCD TV
Cell phones
Industrial monitoring
STB
74HCT Family
Specifikationer
Attribute | Value |
|---|---|
| Logic Family | HCT |
| Logic Function | Buffer, Line Driver |
| Number of Channels per Chip | 8 |
| Input Type | Single Ended |
| Output Type | 3 State |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 20 |
| Maximum High Level Output Current | -6mA |
| Maximum Low Level Output Current | 6mA |
| Maximum Propagation Delay Time @ Maximum CL | 28 ns @ 4.5 V |
| Dimensions | 13 x 7.6 x 2.45mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Supply Voltage | 4.5 V |
| Propagation Delay Test Condition | 50pF |
