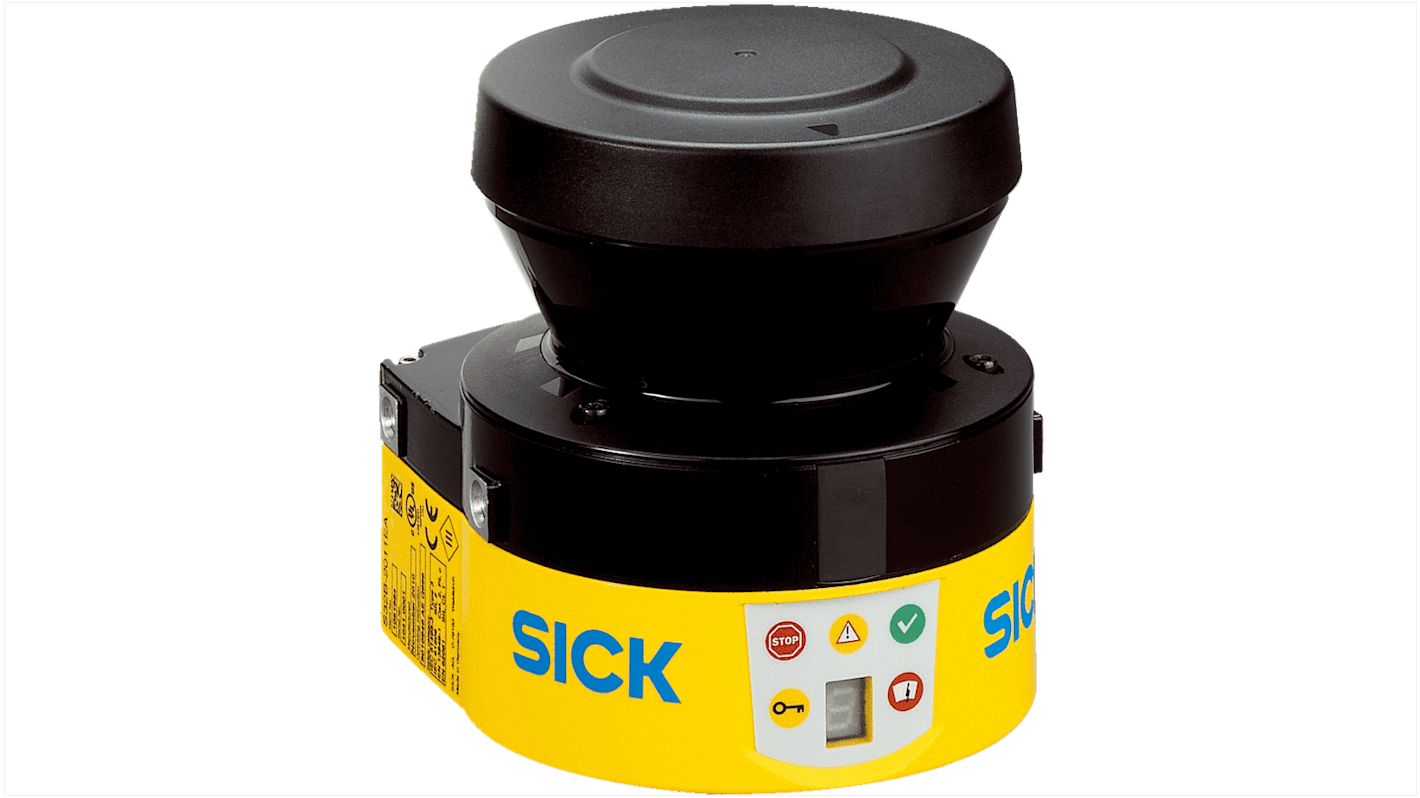

SICK S32B Series Laser Scanner, 2m Max Range

Se alla Light Detection and Ranging

Antal (1 enhet)*

31 718,49 kr

(exkl. moms)

39 648,11 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 1 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +31 718,49 kr

*vägledande pris

RS-artikelnummer:
285-6810
Tillv. art.nr:
S32B-2011BA / 1050932
Tillverkare / varumärke:
SICK
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

SICK

Series

S32B

Maximum Scanning Distance

2m

Safety Type

3

SIL IEC 61508

2

PL EN ISO 13849-1

d

Peak Wavelength

905nm

Maximum Response Time

80 ms

Terminal Type

Cable

Dimensions

102 x 116 x 105 mm

Product Length

105mm

Length

105mm

Width

102mm

Application

Indoor

Height

116mm

COO (Country of Origin):
DE

Overview


The S300 Standard is the cost-effective solution for applications with freely definable protective fields. The new triple field mode allows three fields – one protective field and two warning fields – to be activated at the same time. The compact design m

The configuration memory integrated into the system plug also enables simple commissioning and quick device replacement. CDS (Configuration & Diagnostic Software) can be used to define protective and warning fields in a convenient and standardized way on

At a glance


Compact design
2 m or 3 m protective field range
270° scanning angle
1 field set
Configuration memory integrated in the system plug
EFI interface for safe SICK device communication
Measured data output via RS-422
Contour as reference for vertical applicat

Your Benefit


Simple integration due to compact design
Easy installation, commissioning and maintenance for stationary and mobile applications
Unbeatable cost-effectiveness – 270° scanning angle allows complete application protection with only two scanners
Safety engin

Applications
