Brodersen Controls Level Relay - DIN Rail Mount, 24 V dc 2 Input

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): DK
Produktdetaljer

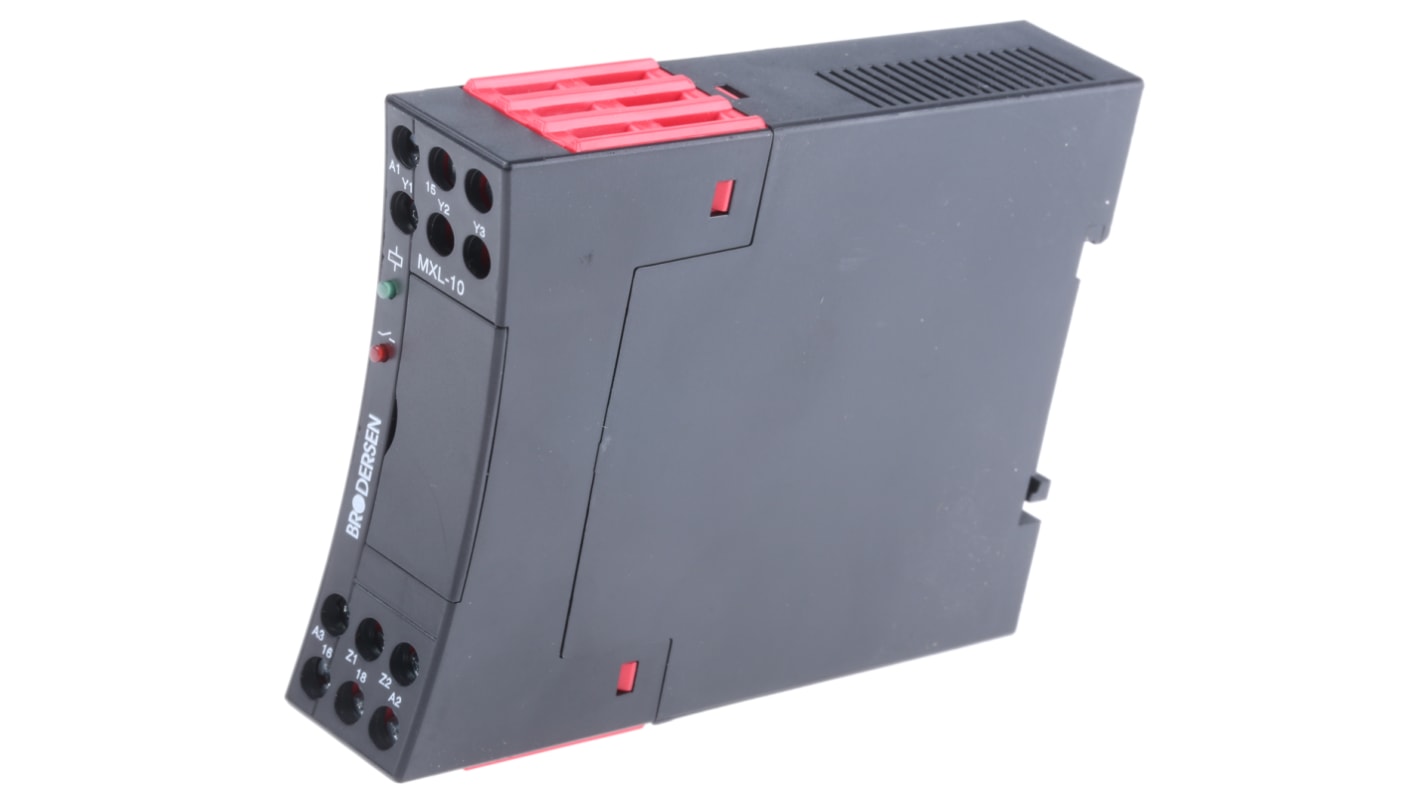

Brodersen Controls Liquid Level Relay

The Brodersen Controls MXL-10 series liquid level relay is a dual input and DIN rail mount device. This is used for most conductive fluids. It has a 24VDC supply voltage. It can control/monitor level conducting fluids via 2 wire probes. The conductivity will differ from fluid to fluid, the sensitivity can be adjusted on the front panel, to adjust the reaction time form the time the actual level is registered to the relay being energised/de-energised. This liquid relay is available in Up/Down, Minimum, Maximum and Fill/Empty variations. This device is straightforward to install and safe to use.

Features and Benefits

Sensitivity adjustable on input between 5kohm and 50kohm
Response time adjustable from 0.1 second to 5 seconds
Ambient temperature ranges between -20°C and 55°C
SPDT output
Automatic locking (latch)
LED supply and output indications

Applications

Liquid level relays (conductive level sensors) are used in a wide variety of applications, including waste water management and the monitoring and management of corrosive liquid media and designed specifically to provide for the: Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a system
Control of media mixing ratios
Control of liquid levels

Certifications

IP20 rated

Specifikationer
Attribute Value
Number of Inputs 2
Mounting Style DIN Rail Mount
Probe Voltage 12V ac
Supply Voltage 24 V dc
Overall Length 104mm
Overall Width 22.5mm
Overall Depth 80mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +55°C
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Pris (ex. moms) Each
977,43 kr
(exkl. moms)
1 221,79 kr
(inkl. moms)
Enheter
Per unit
1 +
977,43 kr
Nästa dag-leverans inte möjlig
