STMicroelectronics STEVAL-ILL056V1, STEVAL LED Driver Evaluation Board for LED5000 for Dimming LED Driver

Se alla LED Development Tools

Antal (1 enhet)*

357,62 kr

(exkl. moms)

447,02 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Försörjningsbrist
  • 4 kvar, redo att levereras
Vårt nuvarande lager är begränsat och våra leverantörer förväntar sig brist.
Enheter
Per enhet
1 +357,62 kr

*vägledande pris

RS-artikelnummer:
196-1803
Tillv. art.nr:
STEVAL-ILL056V1
Tillverkare / varumärke:
STMicroelectronics
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

STMicroelectronics

LED Technology

LED Driver

Kit Classification

Evaluation Board

For Use With

Dimming LED Driver

Featured Device

LED5000

Kit Name

STEVAL

COO (Country of Origin):
IT

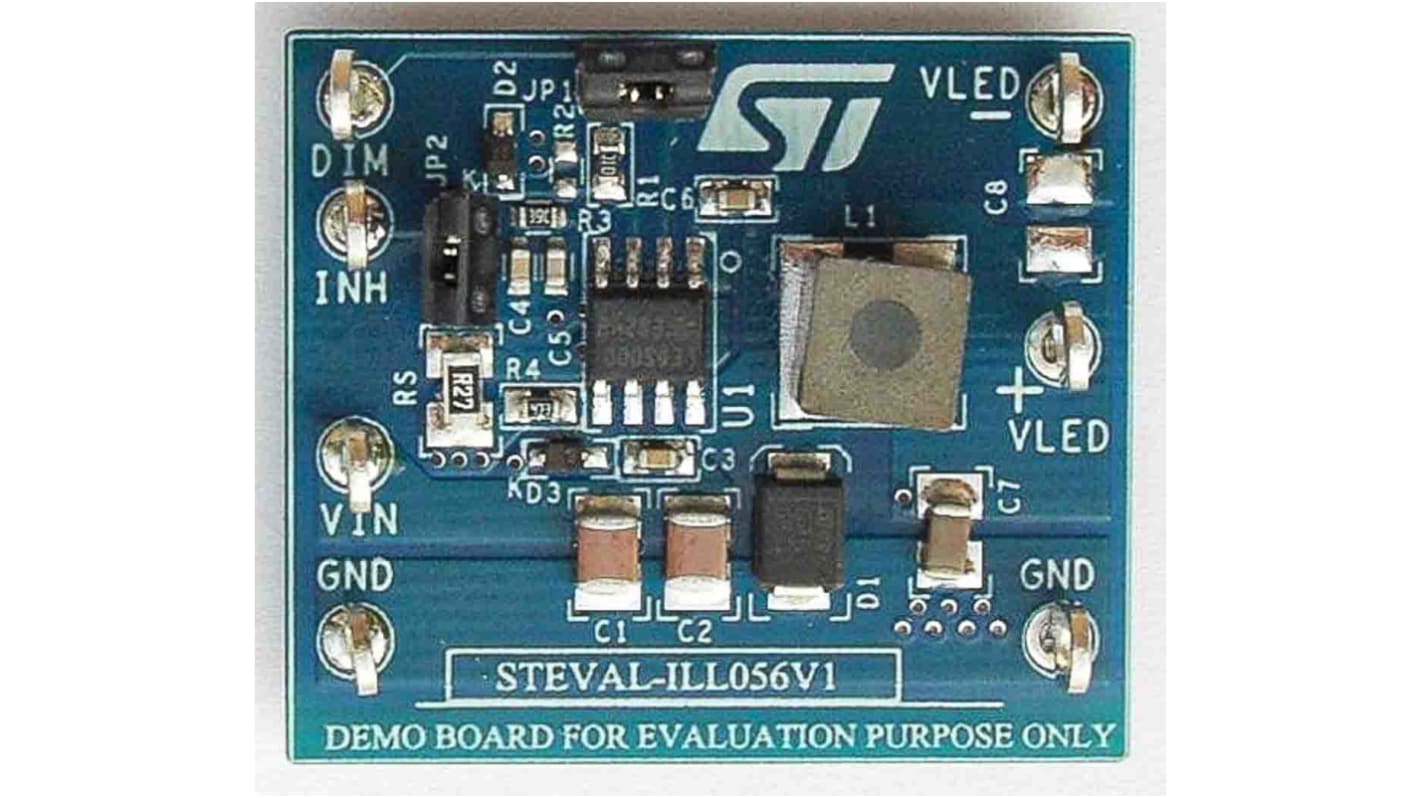

The STEVAL-ILL056V1 is a product evaluation board based on the LED5000, an 850 kHz fixed switching frequency monolithic step-down DC-DC converter designed to operate as a precise constant current source with an adjustable current capability up to 3 A DC. The embedded PWM dimming circuitry features LED brightness control. The regulated output current level is set by connecting a sensing resistor to the feedback pin. The 200 mV typical RSENSE voltage drop enhances performance in terms of efficiency. The size of the overall application is minimized thanks to the high switching frequency and its compatibility with ceramic output capacitors. The device is fully protected against overheating, overcurrent and output short-circuit.
