Intelligent Display Solutions CI064-4001-34 CI064-4001-xx Alphanumeric LCD Display, Blue on Black

Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

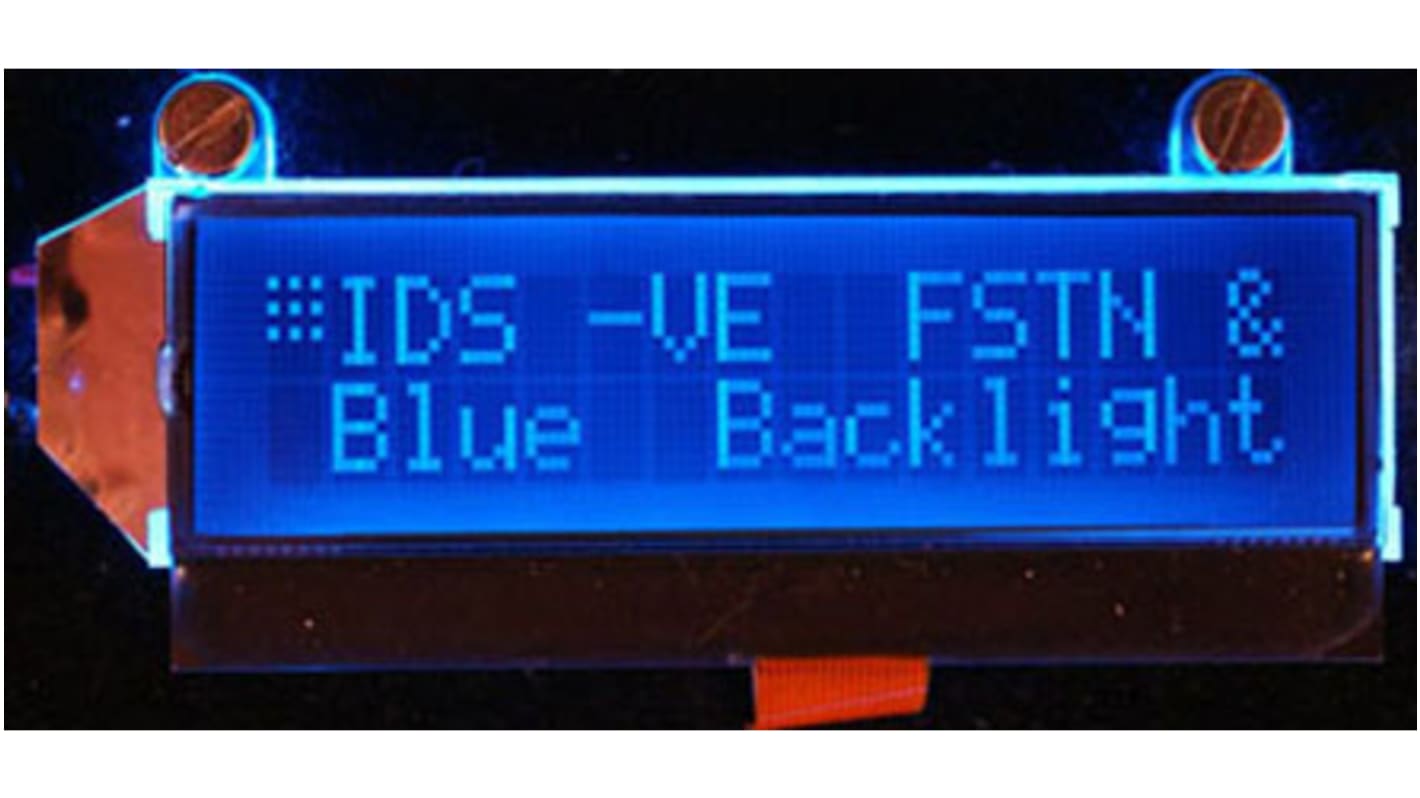

IDS 2x16 COG Alphanumeric LCD Display Modules

This range of LCD displays from IDS have 2 rows of 16 characters. They offer a low cost, low energy and simple method to add a display to your design. Available in a wide choice of backlight colours, both in positive and negative modes and using either STN, FSTN or FFSTN.

Programming code and application notes are available to help speed up connection and integration into a Raspberry Pi or Arduino project.

The IDS IDB-CI064-4001-XX-01 breakout board (RS – 9031328) enables the displays to be used with the industry standard 16-pin interface.

STN Positive

CI064-4001-17 - White Backlight – RS 9031218
CI064-4001-18 - Green Backlight – RS 9031227
CI064-4001-19 - Blue Backlight – RS 9031220
CI064-4001-20 - Orange Backlight – RS 9031224
CI064-4001-21 - RGB Backlight – RS 9031233
CI064-4001-22 - Yellow/Green Backlight – RS 9031236
CI064-4001-23 - Red Backlight – RS 9031230
CI064-4001-46 – No Backlight – Reflective – RS 9031249

STN Negative

CI064-4001-31 – Blue Background with White Backlight - RS 9031277

FSTN Positive

CI064-4001-24 - White Backlight – RS 9031242
CI064-4001-25 - Green Backlight – RS 9031246
CI064-4001-26 – Blue Backlight – RS 9031255
CI064-4001-27 – Orange Backlight – RS 9031258
CI064-4001-28 – RGB Backlight – RS 9031252
CI064-4001-29 – Yellow/Green Backlight – RS 9031261
CI064-4001-30 – Red Backlight – RS 9031264
CI064-4001-47 – No Backlight – Reflective – RS 9031268

FSTN Negative

CI064-4001-32 – White Backlight – RS 9031270
CI064-4001-33 – Green Backlight – RS 9031274
CI064-4001-34 – Blue Backlight – RS 9031283
CI064-4001-35 – Orange Backlight – RS 9031286
CI064-4001-36 – RGB Backlight – RS 9031280
CI064-4001-37 – Yellow/Green Backlight – RS 9031299
CI064-4001-38 – Red Backlight – RS 9031292

FFSTN Negative

CI064-4001-39 – White Backlight – RS 9031296
CI064-4001-40 – Green Backlight – RS 9031306
CI064-4001-41 – Blue Backlight – RS 9031309
CI064-4001-42 – Orange Backlight – RS 9031303
CI064-4001-43 – RGB Backlight – RS 9031312
CI064-4001-44 – Yellow/Green Backlight – RS 9031315
CI064-4001-45 – Red Backlight – RS 9031319

IDS Alphanumeric LCD Displays

Specifikationer
Attribute Value
Display Type Alphanumeric
Character Matrix 2 Rows by 16 Characters
Characters per Row 16
Character Rows 2
Character Height 5.6mm
Character Width 3mm
Viewing Area Height 16.5mm
Viewing Area Width 63.5mm
Viewing Area Dimensions 63.5 x 16.5mm
Interface Type 4-Bit MPU, 8-Bit MPU
External Depth 27.5mm
Background Colour Black
Backlight Type LED
Illumination Colour Blue
External Dimensions 5.9 x 76 x 27.5mm
External Width 76mm
External Height 5.9mm
Display Mode Transmissive
Maximum Operating Temperature +70°C
Minimum Operating Temperature -20°C
Operating Temperature Range -20 → +70°C
Series CI064-4001-xx
Driver Mounting COG
Current Rating 2mA
Voltage Rating 2.7 → 5.5V
Tillfälligt slut i lager – restorder för leverans när den finns i lager
Pris (ex. moms) Each
73,76 kr
(exkl. moms)
92,20 kr
(inkl. moms)
Enheter
Per unit
1 +
73,76 kr
