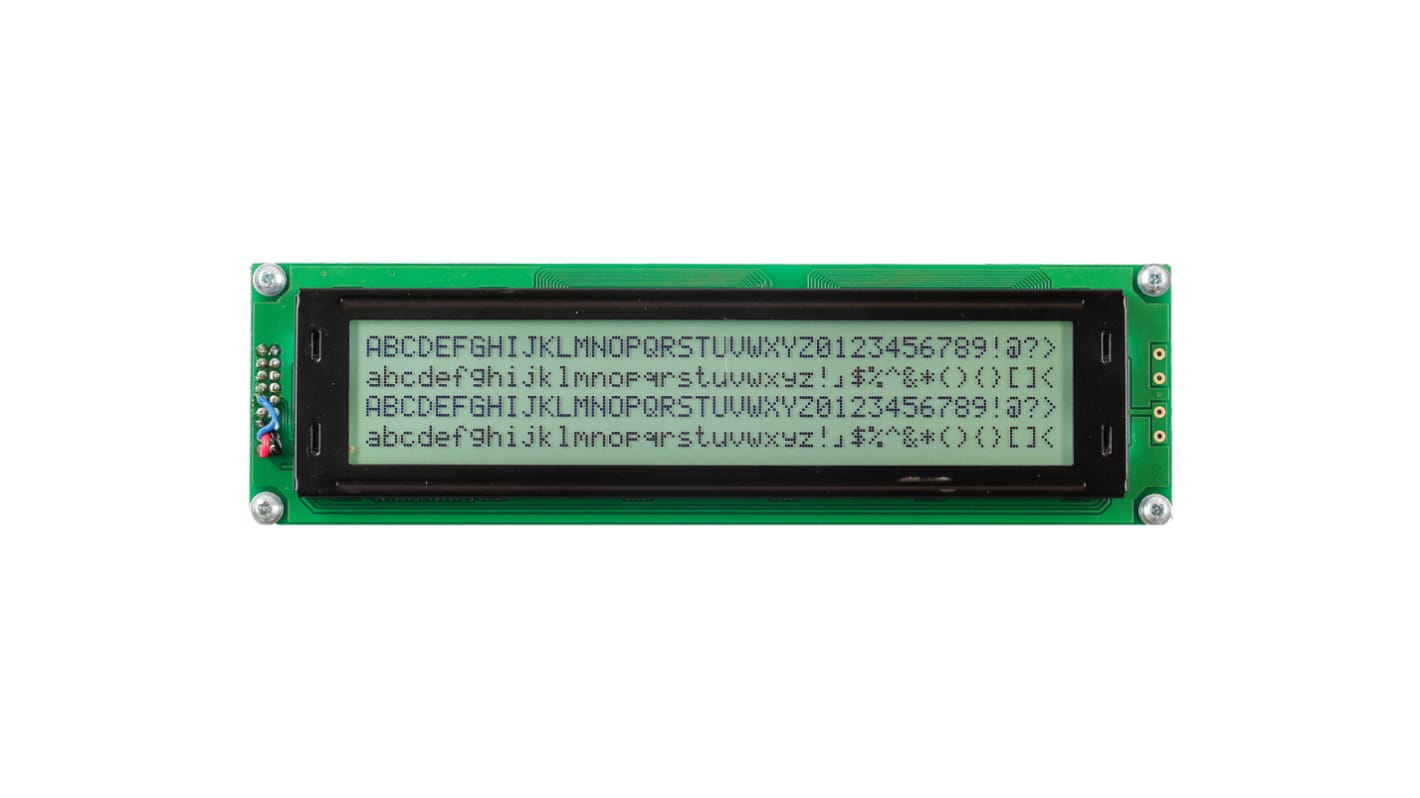

Midas MC44005A6W-FPTLW-V2 A Alphanumeric LCD Display White, 4 Rows by 40 Characters, Transflective

RS-artikelnummer:: 135-9756
Tillv. art.nr:: MC44005A6W-FPTLW-V2
Tillverkare / varumärke:: Midas

Midas MC44005A6W-FPTLW-V2 A Alphanumeric LCD Display White, 4 Rows by 40 Characters, Transflective

Mängdrabatt möjlig

Antal (1 enhet)*

426,94 kr

(exkl. moms)

533,68 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

63 enhet(er) är redo att levereras
Plus 5 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 4	426,94 kr
5 - 9	384,27 kr
10 +	371,39 kr

*vägledande pris

RS-artikelnummer:: 135-9756
Tillv. art.nr:: MC44005A6W-FPTLW-V2
Tillverkare / varumärke:: Midas

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Midas
	Display Type	Alphanumeric
	Character Matrix	4 Rows by 40 Characters
	Character Rows	4
	Characters per Row	40
	Character Width	2.8mm
	Character Height	4.9mm
	Viewing Area Width	147mm
	Viewing Area Dimensions	147 x 30mm
	Viewing Area Height	29.5mm
	Interface Type	8-bit
	External Depth	13mm
	Background Colour	White
	Backlight Type	LED
	External Height	54mm
	External Dimensions	190 x 13 x 54mm
	External Width	190mm
	Display Mode	Transflective
	Display Matrix Technology	FSTN
	Voltage Rating	4.7 → 5.5V
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-20°C
	Series	A
	Driver Mounting	COB
	Current Rating	2.5mA
	Operating Temperature Range	-20 → +70°C

	Välj alla
	Brand Midas
	Display Type Alphanumeric
	Character Matrix 4 Rows by 40 Characters
	Character Rows 4
	Characters per Row 40
	Character Width 2.8mm
	Character Height 4.9mm
	Viewing Area Width 147mm
	Viewing Area Dimensions 147 x 30mm
	Viewing Area Height 29.5mm
	Interface Type 8-bit
	External Depth 13mm
	Background Colour White
	Backlight Type LED
	External Height 54mm
	External Dimensions 190 x 13 x 54mm
	External Width 190mm
	Display Mode Transflective
	Display Matrix Technology FSTN
	Voltage Rating 4.7 → 5.5V
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -20°C
	Series A
	Driver Mounting COB
	Current Rating 2.5mA
	Operating Temperature Range -20 → +70°C

COO (Country of Origin):: CN

Midas Character COB LCD Displays

This series of character LCD displays, from Midas Displays, have chip-on-board (COB) mechanical construction. The LCD displays are available in 16, 20 and 40 character options with super twisted nematic (STN) or film compensated super twisted nematic (FSTN) technologies. Alternative appearances are created with positive and negative modes available in the COB LCD displays. The majority of character LCD controllers come with conventional interface equivalent to HD44780 and include standard on board character sets. In order to meet the demands of customer applications the COB LCD displays are available with a viewing angle of 6 o'clock.

Chip-on-board (COB) LCD display
Parallel interface
Operational temperature -20 to +70 °C
STN and FSTN display options
