MikroElektronika MIKROE-1404 TFT TFT LCD Display / Touch Screen, 2.8in, 320 x 240pixels
- RS-artikelnummer:
- 168-2965
- Tillv. art.nr:
- MIKROE-1404
- Tillverkare / varumärke:
- MikroElektronika
Tillfälligt slut i lager – restorder för leverans 2024-07-05
Lagt till varukorgen
Pris (ex. moms) Varje
252,41 kr
(exkl. moms)
315,51 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 252,41 kr |
| 5 + | 239,77 kr |
- RS-artikelnummer:
- 168-2965
- Tillv. art.nr:
- MIKROE-1404
- Tillverkare / varumärke:
- MikroElektronika
Lagstiftning och ursprungsland
Produktdetaljer

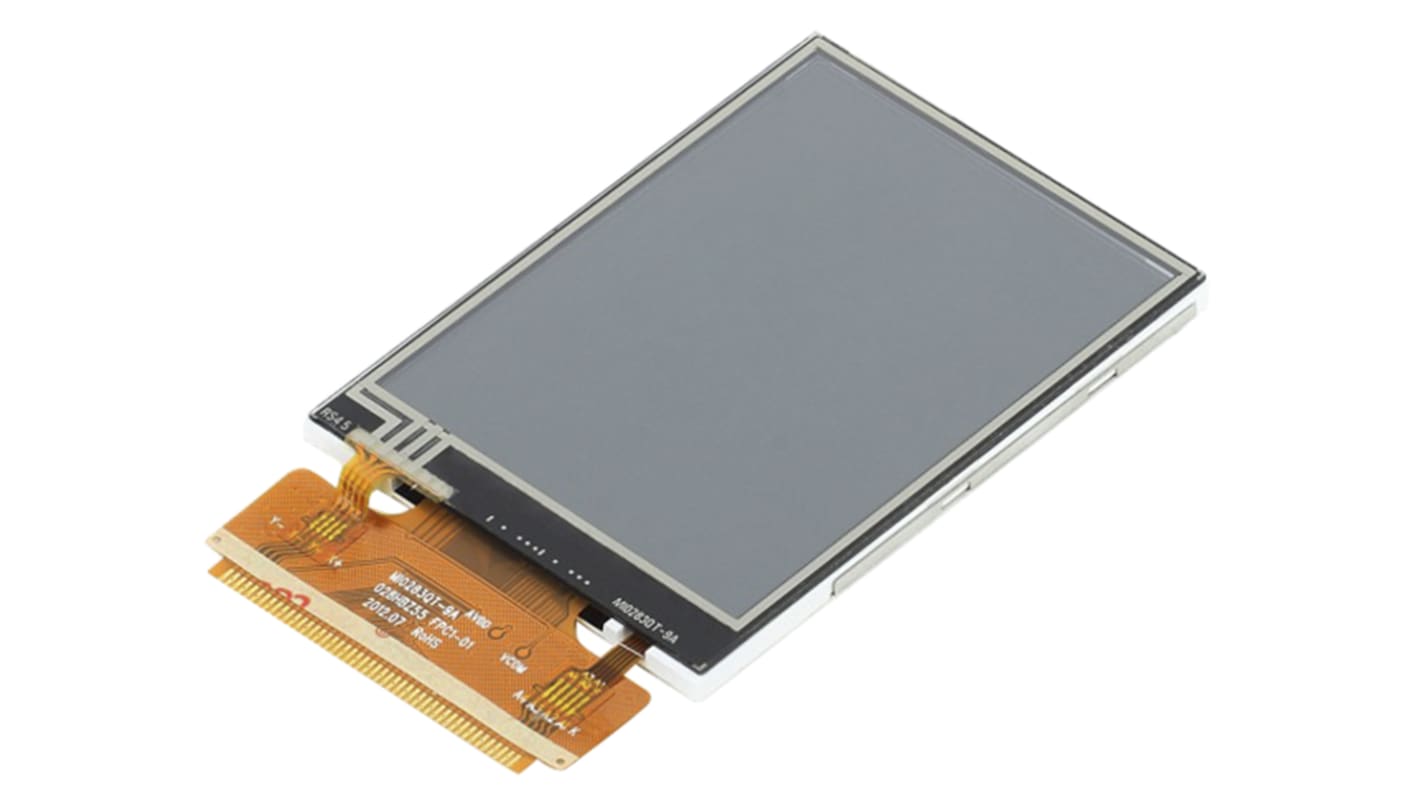

2.83" TFT color display MI0283QT-9A with 320x240 pixel resolution, which is driven by ILI9341 display controller, capable of showing advanced graphical content. Each pixel can display 262K different colors. TFT display is covered with a resistive touch panel which can be used as input device
Specifikationer
Attribute | Value |
|---|---|
| Diagonal Display Size | 2.8in |
| Interface Type | CPU, RGB |
| Resolution | 320 x 240pixels |
| Touch Screen | Yes |
| Supply Voltage | 4.6 V |
| Backlight Type | LED |
| AC or DC Input Voltage | dc |
| Dimensions | 49.5 x 68.6 x 4mm |
| Display Matrix Technology | TFT |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Display Type | TFT |
| Height | 68.6mm |
| Power Supply Included | Yes |
| Series | MIKROE |
| Operating Temperature Range | -20 → +70°C |
| Width | 49.5mm |
| Number of Colours | 65k |
| Standards Met | ANSI/ASQC Z1.4-1993AQL 0.65, AQL 1.5, GB/T2828.1-2003/ISO 2859-1, IPC-A-610C |
| Response Time | 30ms |
| Depth | 4mm |
