    4D Systems gen4-uLCD-24DT TFT LCD Colour Display / Touch Screen, 2.4in, 240 x 320pixels

    RS-artikelnummer:
    125-7941
    Tillv. art.nr:
    gen4-uLCD-24DT
    Tillverkare / varumärke:
    4D Systems
    4D Systems
    Se alla LCD Colour Displays
    Tillfälligt slut i lager restorder för leverans 2022-10-10
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    532,13 kr

    (exkl. moms)

    665,16 kr

    (inkl. moms)

    EnheterPer unit
    1 - 9532,13 kr
    10 +468,26 kr
    RS-artikelnummer:
    125-7941
    Tillv. art.nr:
    gen4-uLCD-24DT
    Tillverkare / varumärke:
    4D Systems
    COO (Country of Origin):
    CN

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    CN

    Produktdetaljer

    4D Systems LCD Display


    The 4D Systems gen4 series 2.4in LCD offers a compact and easy to integrate display solution. This 240 x 320-pixel variant features 4-wire resistive touch for applications requiring a human-machine interface. The design of the gen4 series makes it simple to integrate into the final product. The display module features a 30-pin ZIF socket to provide an easy connection to an application or motherboard, removing wiring headaches. If space is at a premium the connected board can sit flush on the back of the module as the display circuitry fits comfortably within the mounting base, maintaining a slim profile. A micro-SD card connector provides optional multimedia storage and data logging capabilities. The 4D systems Diablo16 processor, an embedded controller that provides built-in graphics, text, image and animation capability, powers it. The Diablo16 is fully compatible with the 4D Systems Workshop4 IDE, giving programmers the flexibility of 4 different development environments.

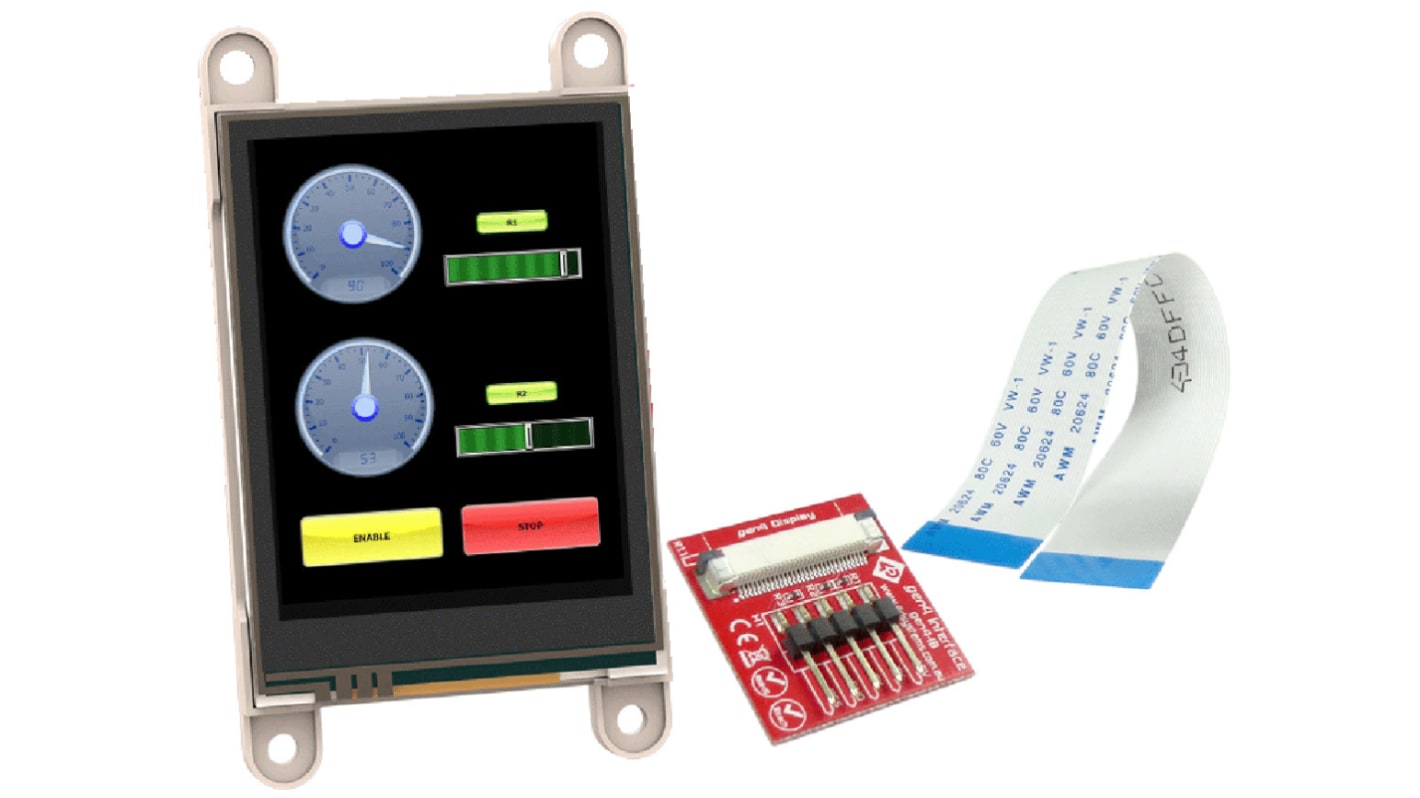

    Kit Contents
    1 x 2.4in gen4-uLCD-24DT LCD display module
    1 x gen4-IB interface board
    1 x 150mm FFC Cable


    Features and Benefits


    TFT transmissive display
    16 GPIO – Includes 4 configurable analogue outputs
    3 x I2C channels
    3 x SPI channels
    30-pin FPC connection for signals, power, communications, GPIO and programming micro-SD card connector for multimedia storage and data logging
    32KB of user RAM
    4.0V to 5.5V operation
    6 banks of 32KB Flash memory for user application code and data
    Compact – module's width of 78.4mm, depth of 44.8mm and height of 7.2mm (including mounting tabs)
    Dedicated PWM audio pin
    RGB 65k true to life colours
    Supports all Windows fonts
    Up to 10 GPIO for pulse output
    Up to 14 GPIO can be configured for quadrature encoder inputs (2 channels)
    Up to 6 GPIO can be used as pin counters
    Up to 6 GPIO for PWM


    Certifications


    CE certified
    REACH compliant



    Specifikationer

    AttributeValue
    Diagonal Display Size2.4in
    Interface TypeSeria
    Resolution240 x 320pixels
    Touch ScreenYes
    Viewing Area Dimensions37 x 49mm
    Supply Voltage4 → 5.5 V
    Touch Screen TypeResistive
    Backlight TypeLED
    Display ModeTransmissive
    AC or DC Input Voltagedc
    Dimensions78.4 x 44.8 x 7.2mm
    Display Matrix TechnologyTFT
    Minimum Operating Temperature-10°C
    Maximum Operating Temperature+60°C
    Brightness182cd/m²
    Seriesgen4
    Contrast Ratio250:1
    Viewing Area Height48.96mm
    Voltage Rating5.5V
    Viewing Area Width36.72mm
    Operating Temperature Range-10 → +60°C
    Number of Colours65,536
    Width78.4mm
    Depth44.8mm
    Standards MetCE
    Current Rating160mA
    Height7.2mm
    Power Supply IncludedNo
