Schneider Electric Variable Speed Drive, 1.1 kW, 3 Phase, 380 → 500 V ac, 5 A, ATV320 Series

RS-artikelnummer:: 186-0895
Tillv. art.nr:: ATV320U11N4WS
Tillverkare / varumärke:: Schneider Electric

Schneider Electric Variable Speed Drive, 1.1 kW, 3 Phase, 380 → 500 V ac, 5 A, ATV320 Series

Price Varje**

13 395,20 kr

(exkl. moms)

16 744,00 kr

(inkl. moms)

Tillfälligt slut i lager – restorder för leverans 2025-02-25*

* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.

FRI frakt på alla onlineordrar över 500,00 kr

Nästa dag-leverans inte möjlig

Enheter	Per enhet
1 +	13 395,20 kr

Better World

Vårt Better World-sortiment innehåller produkter som gör det enkelt för dig att göra ett grönare produktval som du kan lita på. Klicka här för mer information.

RS-artikelnummer:: 186-0895
Tillv. art.nr:: ATV320U11N4WS
Tillverkare / varumärke:: Schneider Electric

Logga in för att ladda ner CAD-modeller

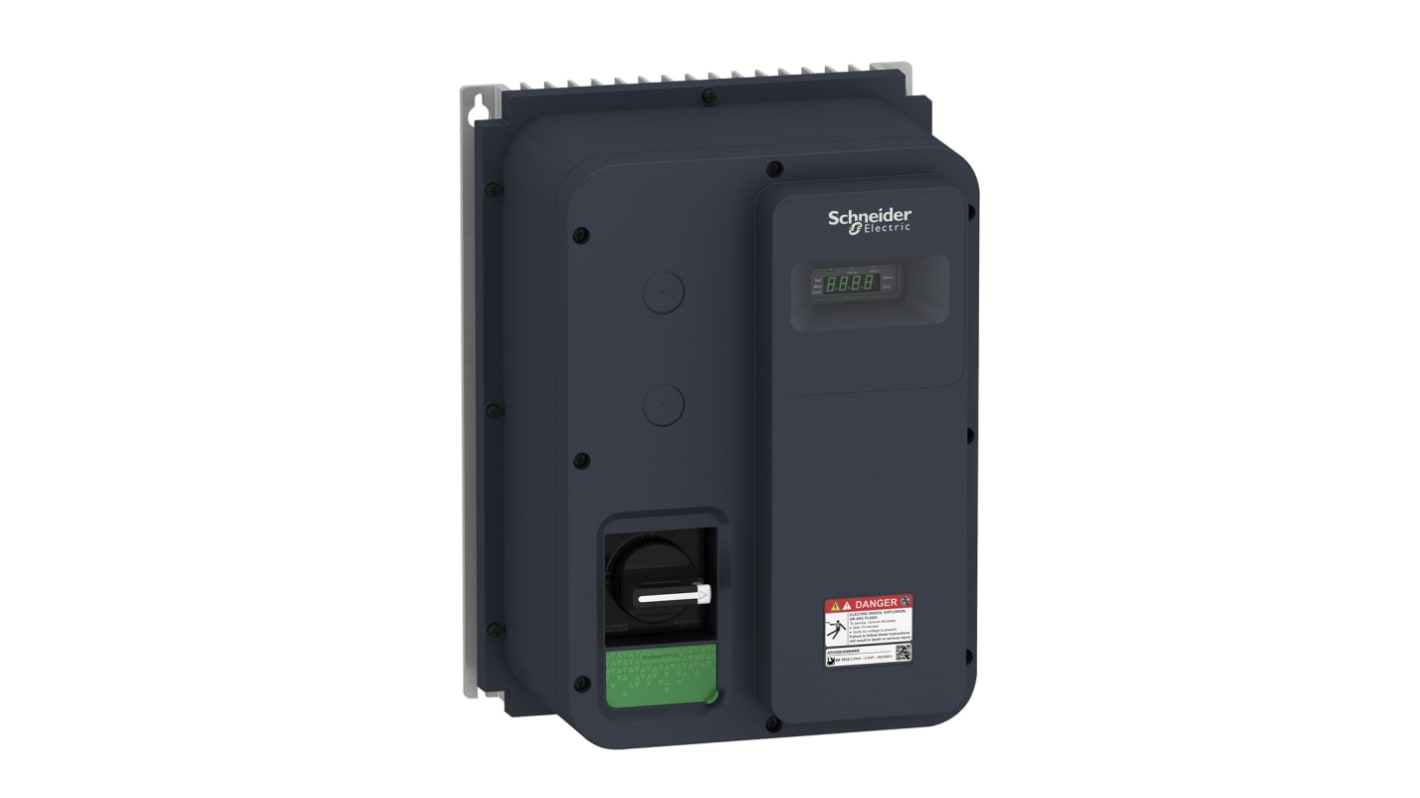

Schneider Electric ATV320U11N4WS

Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This ATV320 drive can feed 3-phase synchronous and asynchronous motors. It works at a rated power up to 1.1kW, and a rated voltage from 380V to 500V. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP65 protection. It integrates as standard Modbus and CANopen communication protocols with access via the RJ45 connector on the front of the drive. It weighs 6.4kg. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. EcoStruxure Machine software compatibility enables developping, configuring and commissioning the entire machine in a single software environment, including logic, motion control, HMI and related network automation functions. It is delivered in 2 packages. ATV320 can be installed alone or side by side in a multi-drive configuration. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.

Features and Benefits.

Enhanced automation capabilities through open loop motor control being combined with simplicity for asynchronous and synchronous motors – this also applies at a low speed, dynamic accuracy for start/stop applications.

Advanced connectivity with automation architectures such as EtherNet/IP - Modbus TCP, Profinet EtherCAT, Profibus, CANopen and DeviceNet.

Featuring functions such as ATVLogic which bring application expertise and flexibility to the machines.

The Altivar Machine ATV320 variable speed drives carry on their predecessors’ tradition of robustness and reliability.

To maximise the machine operation time, especially as the production changes the safety diagnostics and operation, system integration and network configuration can be achieved in a timely manner.

The ATV320 has been engineered cost effective, easy installation for a number of machine layouts and for the placement for inside in places such as cabinets and machine frames.

Due to the robust, strong and reliable design these VFD’s and also having IEC 60721-3-3 class 3C3 coated printed circuit boards the variable frequency drives can extend the machine availability in harsh conditions.

This series have different mounting options, depending on the machine (vertical, horizontal, with the option to offset the control module when the drive is mounted on its side, side-by-side)

Comprehensive embedded safety accounts for the machine having an additional safety torque OFF, four functions of full safety monitoring to simplify machine certification and compliance with Machinery Directive 2006/42/EC.

Easy-fit communication cards in cassette format.

Where would you normally find a Variable Frequency Drive?

The ATV320 series can be used in simple or/and advanced machine requirements.

This series can be used for mechanical and electrical instillations.

Material handling – small conveyors

Packaging – small labelling machines, small bagging machines

Machinery that has machines fitted with fans - Air or smoke extraction, plastic film making machines, ovens and boilers.

Simple consumer machines such as handling access barriers, rotating advertising hoardings.

The health industry such as medical beds and running machines.

They can also be found in the food and drink industry being used in machine such as mills, kneading machines and mixers.

These types of Inverter Drives can also be a great solution for companies wanting to hoist goods or materials from one place to another.

How to look after the ATV320 Series VFD.

The Altivar 12 does not need any preventative maintenance, although we do advise that you perform a few regular checks to ensure optimum delivery.

The condition and tightness of any of the connections.

Make sure that the temperature around the unit remains at an acceptable level and that ventilation is effective. The average service life of the fans is an impressive ten years.

Make sure that if any dust is apparent, it is removed.

Keep a look out that the fans are always in proper operation and that there is no physical damage to the covers.

Attribute	Value
Power Rating	1.1 kW
Phase	3
Supply Voltage	380 → 500 V ac
Current Rating	5 A
For Use With	Altivar Machine ATV320
Series	ATV320
Field Bus Communication Type	CANopen, Modbus
IP Rating	IP65
Output Frequency	0.1 → 599Hz
STO	Yes
Drive Type	Variable Speed
Mounting Type	Wall Mount
Filter Included	Yes
Better World Claim	Saves energy
Better World Verification	Green Premium
Better World Product	Yes
Special Features	Extended Frequency Range for High Speed Motors
Overall Length	250mm
Function	Motor Control, Open Loop Speed Control
Overall Depth	340mm
Standards Met	CSA Certified, C-Tick Certified, EN/IEC 61800-3, EN/IEC 61800-5-1, GOST Certified, IEC 13849-1, IEC 60721-3, IEC 61508, NOM Certified, REACH Certified, UL 61800-5-1, UL Listed
Overall Width	200mm
Interface	Ethernet
