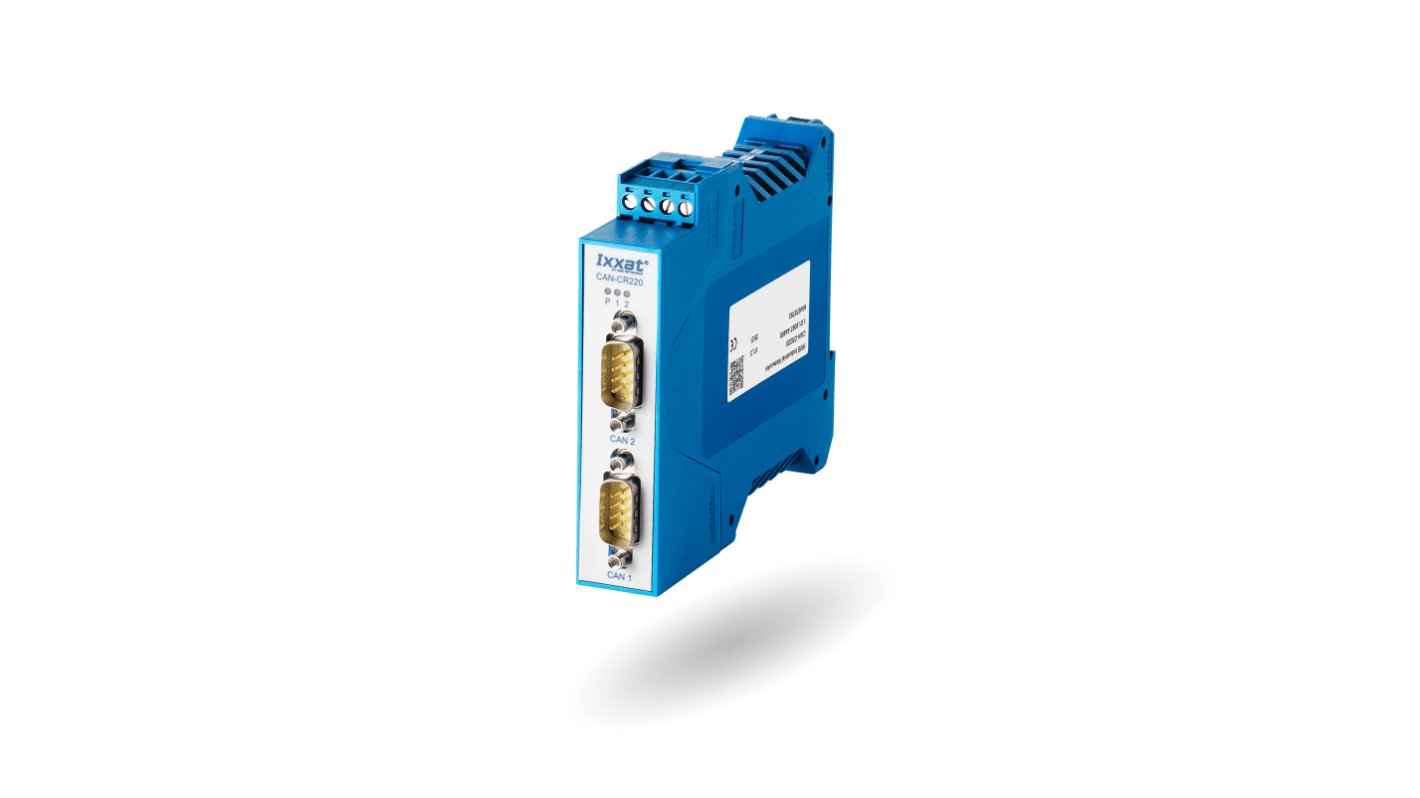

Ixxat CAN D Sub 9 Pin Male to D-sub, 9 Pin Male Interface Converter, CAN-CR220

The Ixxat CAN-CR220 is a CAN repeater with two CAN interfaces and a very high galvanic isolation of up to 4 kV DC/3.5 kV AC for 1 second, allowing it to be utilized in demanding applications. It is used to improve the CAN bus load capacity, to establish a physical coupling of bus systems or to insert a galvanic isolation. The device creates the necessary flexibility to optimize the structure of CAN networks, as it enables the implementation of tree or star topologies as well as stub lines. Optimized network structures result in simpler cable wiring and cost savings at installation and maintenance.
The integrated galvanic isolation is provided for both the CAN segments and the supply voltage, and reliably increases the protection of the device against overvoltage and voltage peaks. In case of disturbances in the CAN lines, the repeater automatically disconnects the affected segment and restores it after the fault is resolved, ensuring uninterrupted network operation.
Ixxat CAN repeaters are specially designed for use in an industrial environment, meeting the highest demands in terms of robustness, temperature range and safety.

• Increased system protection up to 4 kV DC/3.5 kV AC
• Meeting DIN/EN 50178 standards
• Cost savings due to simple wiring
• Almost no influence on real-time behavior (propagation delay ca. 35 m/175 ns)
• Greater flexibility in CAN network design
• Separates a defective segment, allowing the remaining network to continue working

• Connectors: 2 x D-Sub 9, 1 x screw terminal (Power)
• CAN interface: CAN high-speed (ISO 11898-2)
• CAN bit rates: 10 kBit/s to 1 Mbit/s
• CAN bus termination resistors: 120 Ohm switchable via DIP switch
• Galvanic isolation: 4 kV DC/3.5 kV AC for 1 sec., 3.2 kV DC/2 kV AC for 1 min. CAN 1, CAN 2 and power supply are galvanically isolated against each other.
• Certification: CE, FCC
