E10 Panel Mount Indicator Bulb Holder,

  • RS-artikelnummer 585-898
  • Tillv. art.nr MTMU/240/4
  • Tillverkare / varumärke Tranilamp
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

Remote Lamp Test

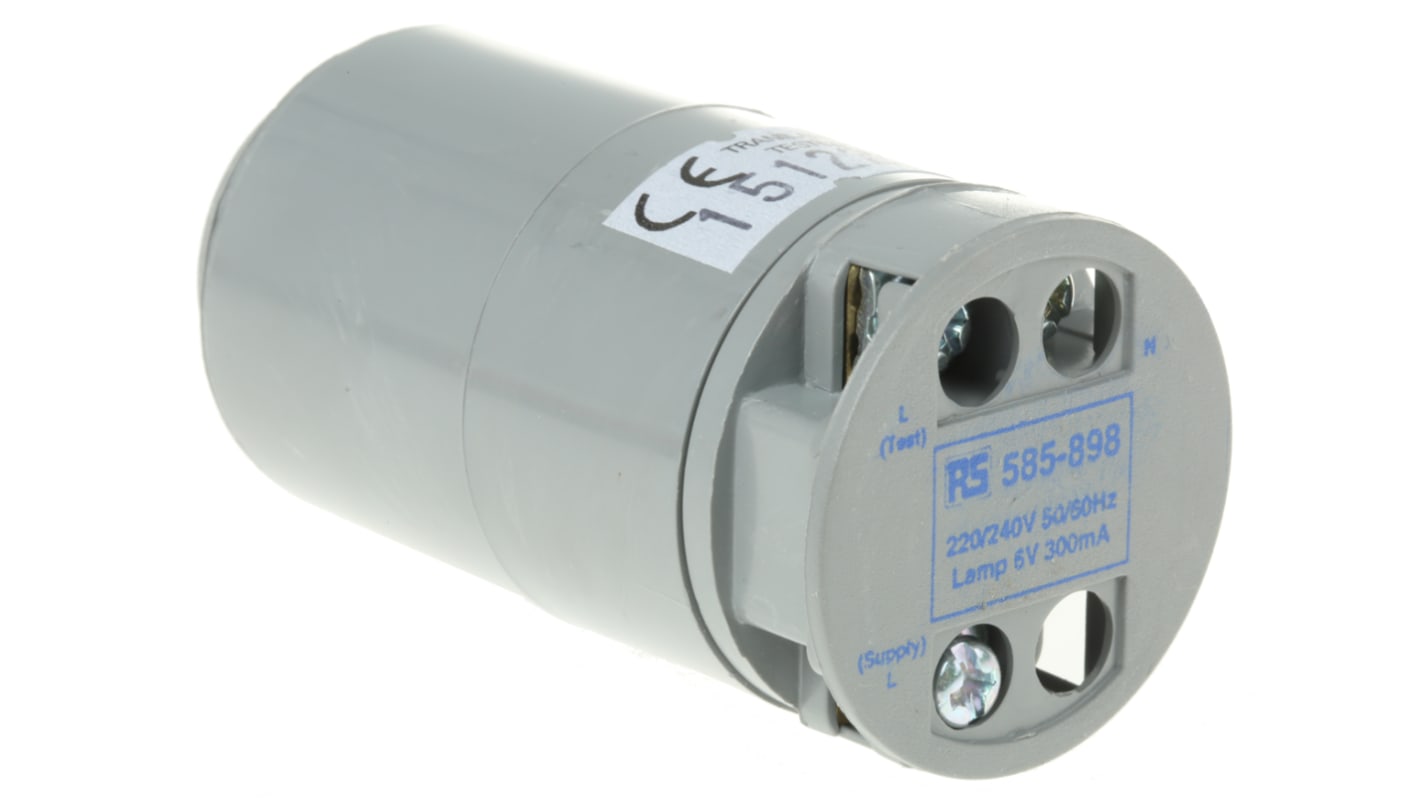

Transformer lampholders designed to provide an output for a 6 V MES filament lamp which is isolated from the mains supply. This ensures greater safety/longer life than a mains filament lamp and superior illumination to a neon lamp.,These units are designed to be used in conjunction with the 19mm, 19.1mm and 27mm mounting panel Lens/Bezels.

Incorporates a single pole changeover relay and a transformer. Supply voltage 220-240V 50/60Hz.
The remote lamp test facility enables the lamp to be tested without interrupting the normal supply to the transformer, can be initiated via a local or remote push button switch.
Each unit isolates itself from the control circuitry when a test is initiated thereby eliminating any feedback.

Note

A minimum of 30mA per unit is required for the changeover relay to operate the test facility.

//media.rs-online.com/t_line/L585898-02.gif
Specifikationer
Attribute Value
Lampholder Type Panel Mount
Lamp Base E10
Termination Type Cable Clamp
Diameter 35mm
Length 67 mm
Voltage Rating 240 V
Series MTMU
Mounting Type Panel Mount
Tillfälligt slut i lager – restorder för leverans när den finns i lager
Pris (ex. moms) Each
225,06 kr
(exkl. moms)
281,32 kr
(inkl. moms)
Enheter
Per unit
1 - 49
225,06 kr
50 - 99
206,26 kr
100 - 249
180,74 kr
250 - 499
155,22 kr
500 +
141,64 kr
