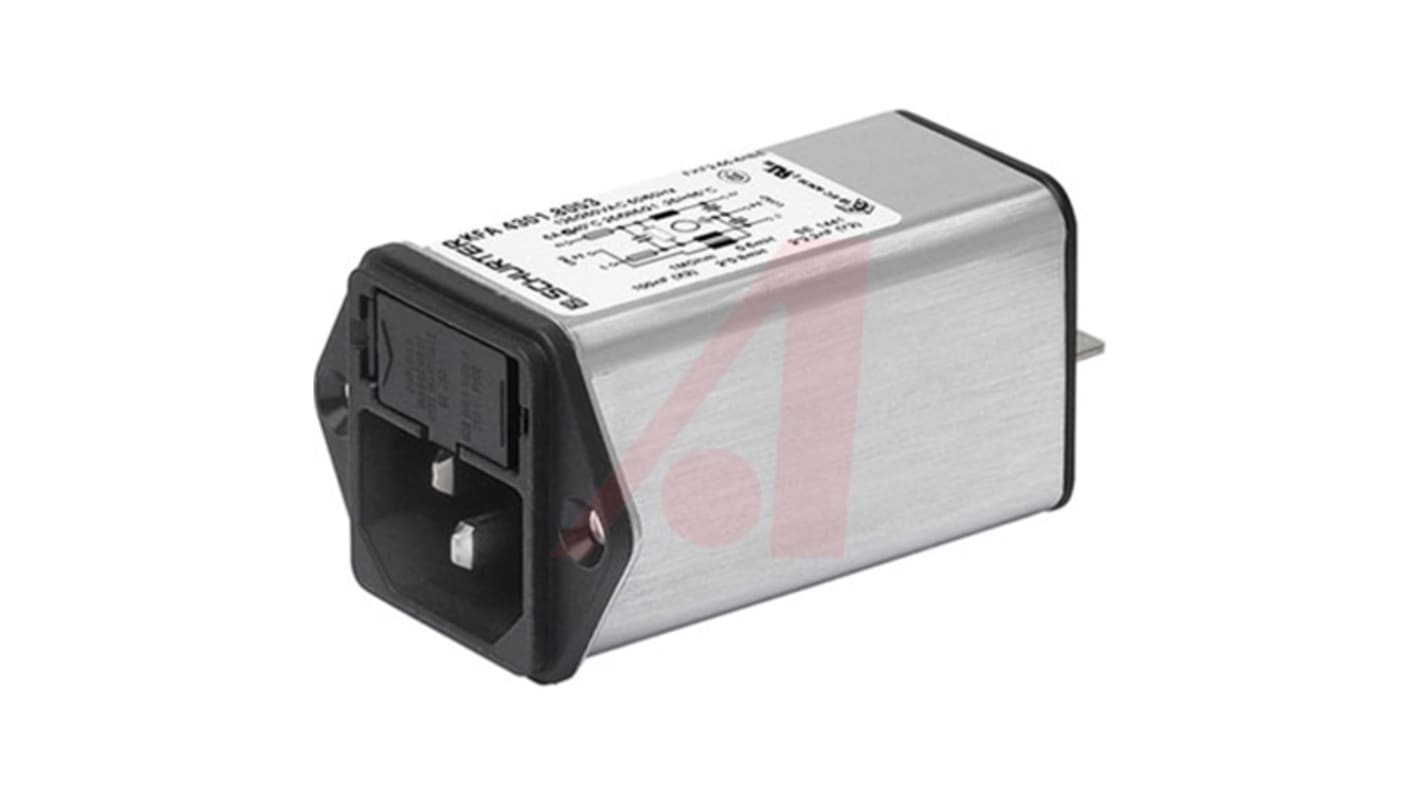

Schurter 1A, 250 V ac Male Panel Mount Filtered IEC Connector 2 Pole 4301.5201, Quick Connect 2 Fuse

RS-artikelnummer:: 867-1928
Tillv. art.nr:: 4301.5201
Tillverkare / varumärke:: Schurter

Schurter 1A, 250 V ac Male Panel Mount Filtered IEC Connector 2 Pole 4301.5201, Quick Connect 2 Fuse

Se alla IEC Filters

Denna produkt har utgått

RS-artikelnummer:: 867-1928
Tillv. art.nr:: 4301.5201
Tillverkare / varumärke:: Schurter

Datablad

Datasheet

Lagstiftning och ursprungsland

COO (Country of Origin):: SK

Produktdetaljer

KFA Series

Schurter KFA series of power entry modules with line filter feature rear mounting for efficient assembly. The KFA series offers a V-Lock notch that ensures plug removal before fuse link replacement can be carried out. Series suitable for use in metal plated plastic housings.

Features and Benefits:

Power entry modules with 2-pole fuse holder
Screw-on version from front or rear side, snap-in version from front
Plug removal necessary for fuse-link replacement
The fuse drawer “Fingergrip” can be removed by hand
The fuse holder is accessible from the equipment front
Terminals quick connect 4.8 x 0.8 mm

Note

Fuse drawer must be ordered separately (500-6211)

Standards

IEC/UL 62368-1

Approvals

VDE Certificate Number: 40004665 (FKE, FKF, FKV, FKW); UL File Number: E72928 (FKE, FKF, FKV, FKW)

Schurter Range

Panel mount, IEC inlet plugs with integral mains filter, ultra compact design.

Note

The fuse drawer is not included and must be ordered separately. Suitable for Ø5x20mm fuse size.

Specifikationer

Attribute	Value
Gender	Male
Number of Fuses	2
Fuse Size	5 x 20mm
Switch Type	2 Pole
Termination Method	Quick Connect
Current Rating	1A
Voltage Rating	250 V ac
Mounting Type	Panel Mount
Operating Frequency	50 (IEC) Hz, 60 (UL / CSA) Hz
IEC Connector Type	C14
Depth	51mm
Height	44mm
