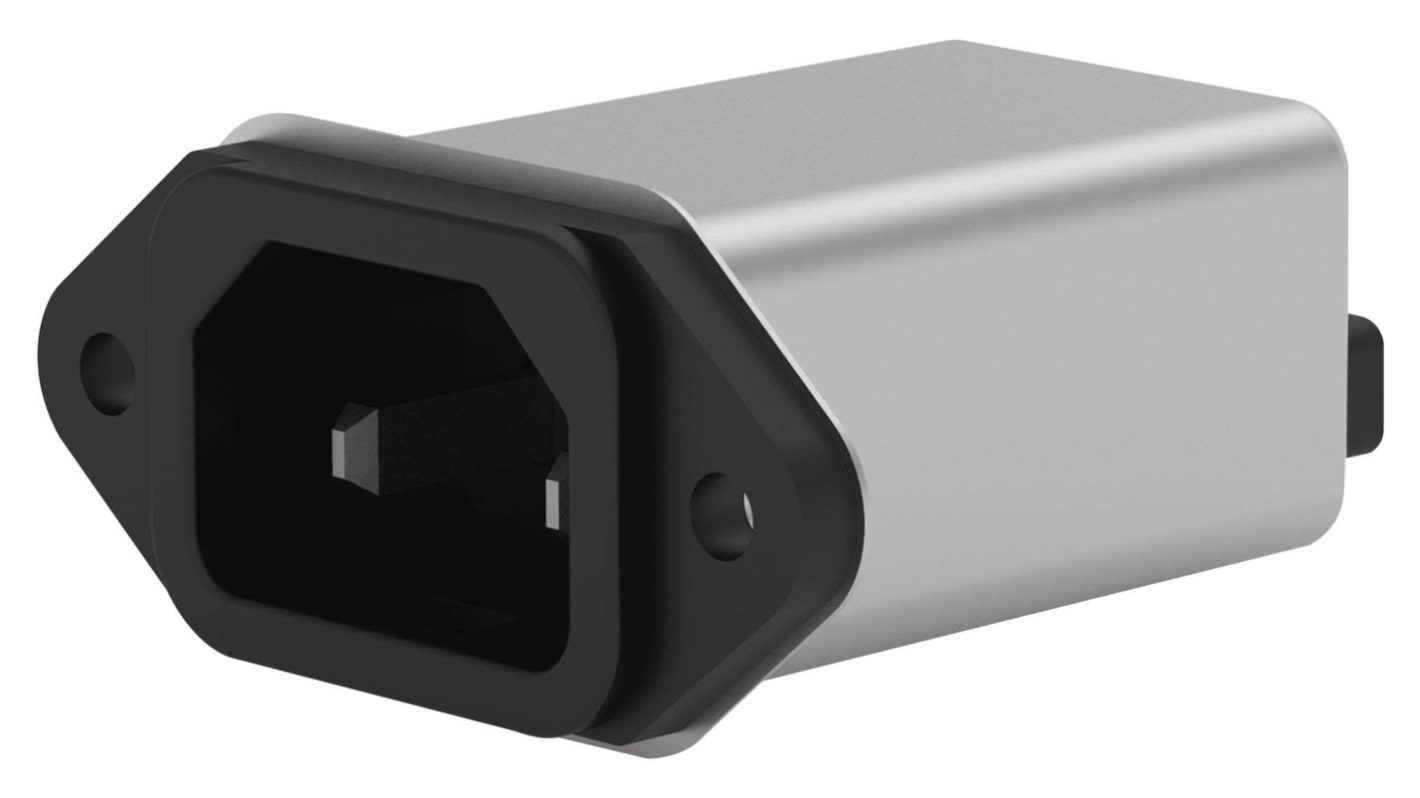

TE Connectivity 10A, 250 V ac Male Flange Mount IEC Filter 1 Pole 10IHE1, Spade
- RS-artikelnummer:
- 146-2698
- Tillv. art.nr:
- 10IHE1
- Tillverkare / varumärke:
- TE Connectivity
Denna produkt har utgått
- RS-artikelnummer:
- 146-2698
- Tillv. art.nr:
- 10IHE1
- Tillverkare / varumärke:
- TE Connectivity
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
TE Connectivity (TE) introduces the Corcom IH Series of IEC inlet filters bringing double insulated filtering capability to customers requiring 60320 (ground-free) C18 inlets for the medical equipment market. Medical Equipment manufacturers need to comply with stringent requirements that protect operators and patients utilizing medical equipment.
Low leakage current
Small, Compact Size
V-lock cord compatible
Double Insulated, no ground
Flanged and Snap-in versions
Small, Compact Size
V-lock cord compatible
Double Insulated, no ground
Flanged and Snap-in versions
Specifikationer
Attribute | Value |
|---|---|
| Gender | Male |
| Switch Type | 1 Pole |
| Termination Method | Spade |
| Current Rating | 10A |
| Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Operating Frequency | 50 → 60Hz |
| IEC Connector Type | IEC/EN 60939 |
| Operating Temperature Range | -10 → +40 °C |
| Width | 51.6mm |
| Depth | 56.2mm |
| Height | 25.6mm |
| Dimensions | 51 x 56.2 x 25.6mm |
