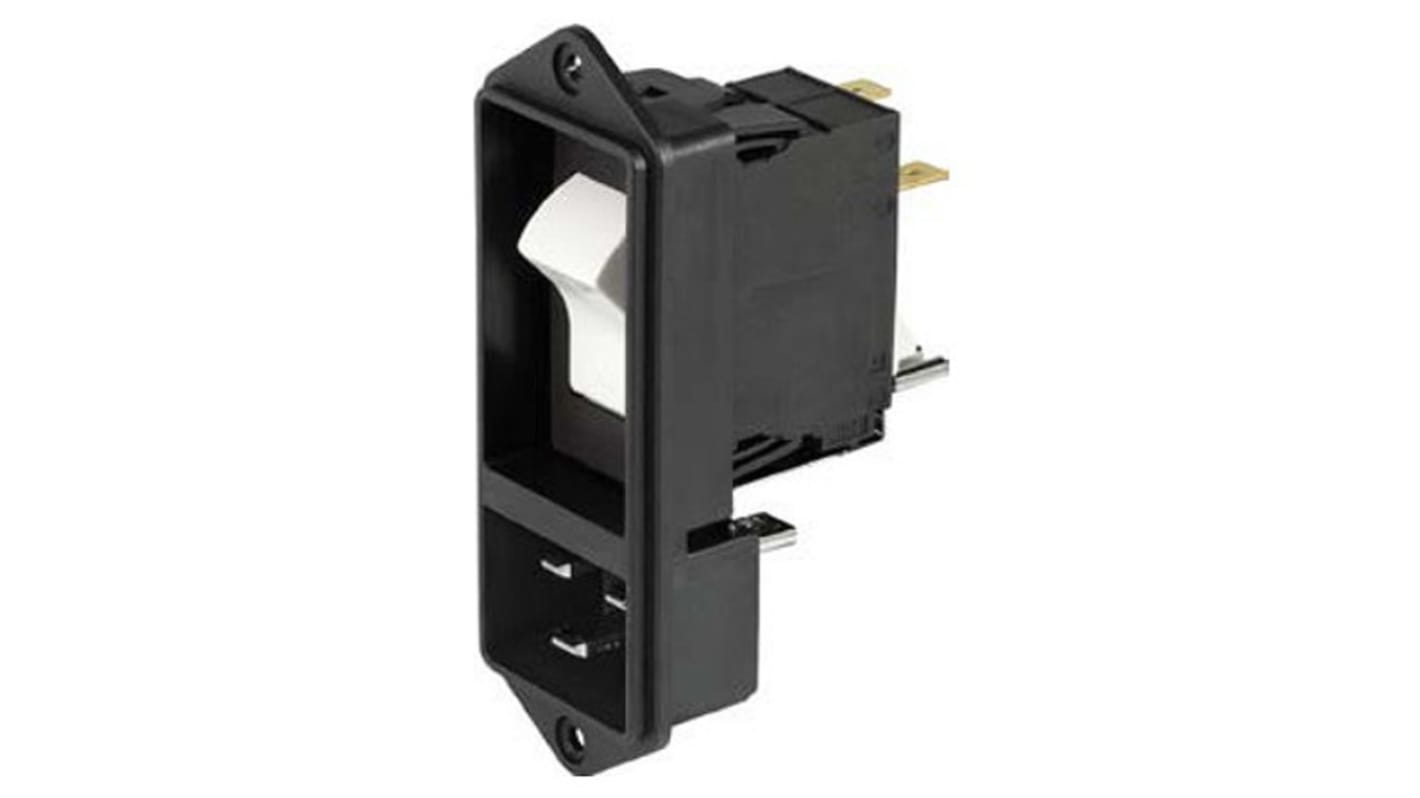

Schurter C20 Panel Mount IEC Connector Male, 20A, 125 V, 250 V
- RS-artikelnummer:
- 870-3457
- Tillv. art.nr:
- EF11.2561.0010.01
- Tillverkare / varumärke:
- Schurter
Denna produkt har utgått
- RS-artikelnummer:
- 870-3457
- Tillv. art.nr:
- EF11.2561.0010.01
- Tillverkare / varumärke:
- Schurter
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CH
Produktdetaljer
EF11 Series
Schurter EF11 series C20 power entry modules come in two versions. They are both panel mount but the user has a choice of either screw-on or snap-in versions. The screw-on can be mounted and secured from the front and rear side whilst the snap-in is mounted from the front side only.
The EF11 series offer two functions, appliance inlet protection class I and a 2 pole TA45 circuit breaker.
The EF11 series offer two functions, appliance inlet protection class I and a 2 pole TA45 circuit breaker.
6.3 x 0.8mm quick connect terminals
All single elements are already wired
Line switch non-illuminated or illuminated
Ideal for application with high transient loads
Suitable for use in equipment according to IEC/UL 60950
All single elements are already wired
Line switch non-illuminated or illuminated
Ideal for application with high transient loads
Suitable for use in equipment according to IEC/UL 60950
Note
Fuse Holders must be ordered separately.
Specifikationer
Attribute | Value |
|---|---|
| IEC Connector Type | C20 |
| Mounting Type | Panel Mount |
| Gender | Male |
| Current Rating | 20A |
| Body Orientation | Straight |
| Termination Method | Quick Connect |
| Switch Type | 2 Pole |
| Number of Fuses | None |
| Voltage Rating | 125 V, 250 V |
