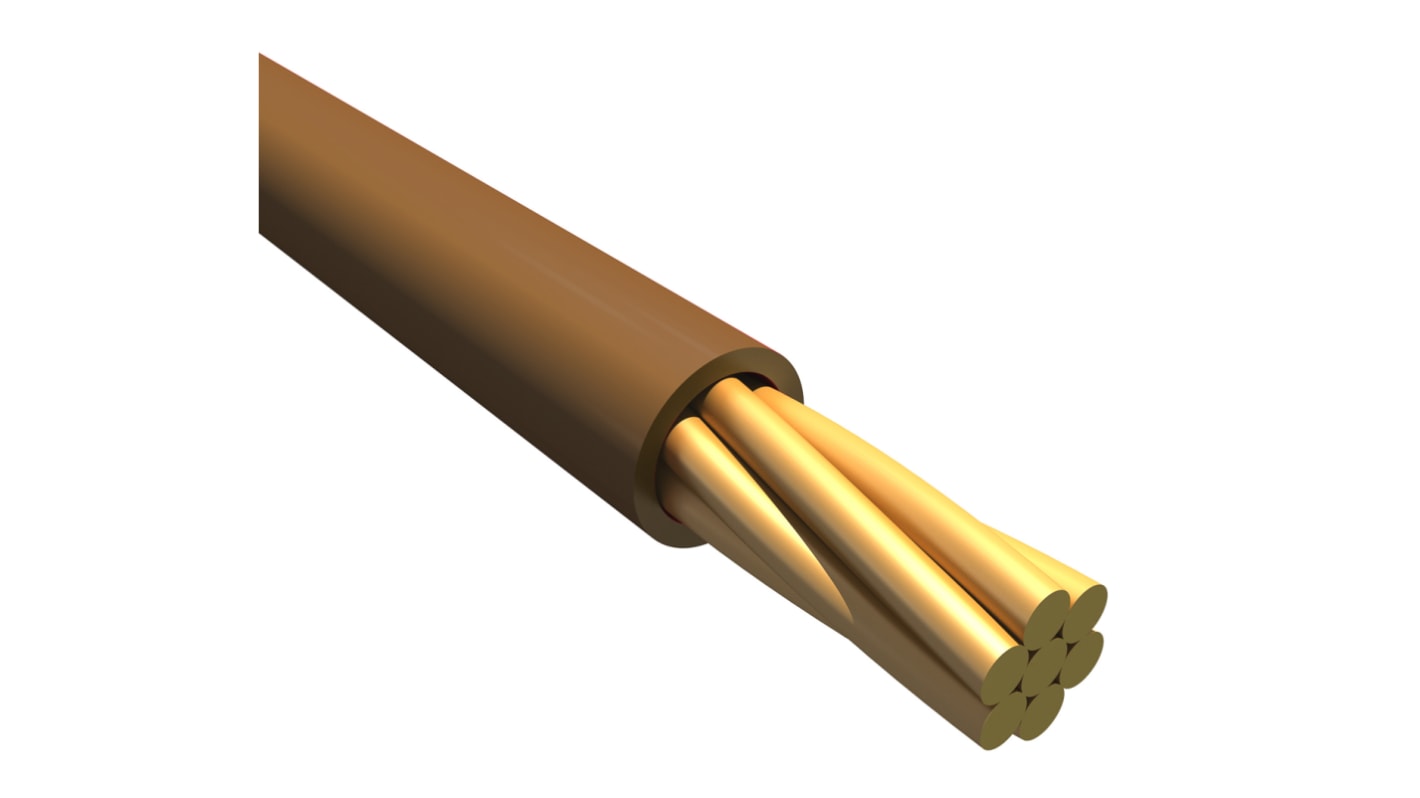

Alpha Wire Hook-up Wire PVC Series Brown 0.52 mm² Hook Up Wire, 20 AWG, 7/0.32 mm, 30m, PVC Insulation, 1856 BR005
- RS-artikelnummer:
- 842-6144
- Tillv. art.nr:
- 1856 BR005
- Tillverkare / varumärke:
- Alpha Wire
Antal (1 rulle med 30 meter)*
415,64 kr
(exkl. moms)
519,55 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 3 enhet(er) från den 22 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar) | Per rulle | Per meter* |
|---|---|---|
| 1 + | 415,64 kr | 13,855 kr |
*vägledande pris
- RS-artikelnummer:
- 842-6144
- Tillv. art.nr:
- 1856 BR005
- Tillverkare / varumärke:
- Alpha Wire
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.52 mm² | |
| Sheath Colour | Brown | |
| American Wire Gauge | 20 AWG | |
| Cable Shape | Wire/Single Core | |
| Core Strands | 7/0.32 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Voltage Rating | 600 V | |
| Outer Diameter | 1.47mm | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55°C | |
| Conductor Material | Copper | |
| Wire Style | MIL-W-76 | |
| Standards Met | Military MIL-W-76B TYPE LW, MIL-W-16878E/1 | |
| Series | Hook-up Wire PVC | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.3mm | |
| Size of Strands | 0.32 mm | |
| Number of Strands | 7 | |
| Välj alla | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.52 mm² | ||
Sheath Colour Brown | ||
American Wire Gauge 20 AWG | ||
Cable Shape Wire/Single Core | ||
Core Strands 7/0.32 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Voltage Rating 600 V | ||
Outer Diameter 1.47mm | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
Conductor Material Copper | ||
Wire Style MIL-W-76 | ||
Standards Met Military MIL-W-76B TYPE LW, MIL-W-16878E/1 | ||
Series Hook-up Wire PVC | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.3mm | ||
Size of Strands 0.32 mm | ||
Number of Strands 7 | ||
RoHS-status: Undantagen
Alpha Wire 600 V PVC Hook Up Wire - Military Spec
This hook up wire from Alpha Wire consists of stranded insulated conductor wires that can be used in electronics for low voltage and low current applications. This hook up wire is made from the finest quality PVC and can be used in military applications due to its Mil-spec compliance.
Features and Benefits
• Abrasion resistant
• Excellent uniformity and low-fray design for easy-handling, stripping and termination
• PVC insulation
• 600 V
• Stranded conductor
• Colour-coded insulation for easy circuit identification
• Excellent flame resistance
• Mil-spec compliance
What is Mil-spec?
Mil-spec is a US defence standard used to help achieve standardisation objectives by the U.S. department of defence. This means that this hook up wire is suitable for demanding electronic military applications.
Product Application Information
Hook up wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances. Hook up wire is most often used within enclosed electronic equipment.
1856 BR005
MIL-DTL-16878/1 (Type B)
MIL-W-76 Type LW
Temperature Range: -55° to +105°C
Colour: Brown
Wire Size: 20 AWG
Stranding: 7/28 AWG
MIL-W-76 Type LW
Temperature Range: -55° to +105°C
Colour: Brown
Wire Size: 20 AWG
Stranding: 7/28 AWG
