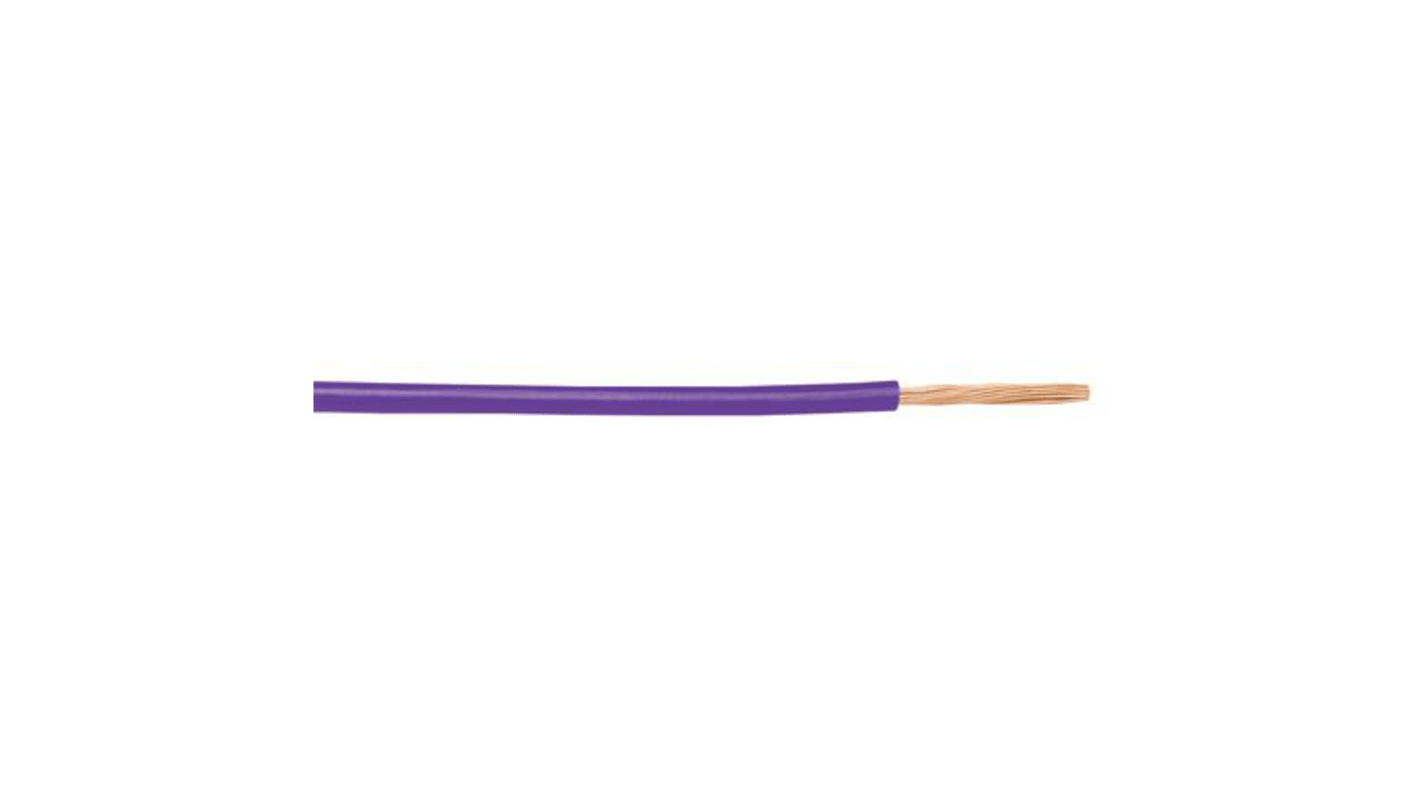

Alpha Wire Hook-up Wire PVC Series Purple 0.52 mm² Hook Up Wire, 20 AWG, 1/0.81 mm, 30m, PVC Insulation, 3053/1 VI005
- RS-artikelnummer:
- 842-5422
- Distrelec artikelnummer:
- 301-08-894
- Tillv. art.nr:
- 3053/1 VI005
- Tillverkare / varumärke:
- Alpha Wire
Antal (1 rulle med 30 meter)*
329,35 kr
(exkl. moms)
411,69 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 29 enhet(er) är redo att levereras
- Plus 2 enhet(er) är redo att levereras från en annan plats
- Dessutom levereras 999 999 970 enhet(er) från den 22 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar) | Per rulle | Per meter* |
|---|---|---|
| 1 + | 329,35 kr | 10,978 kr |
*vägledande pris
- RS-artikelnummer:
- 842-5422
- Distrelec artikelnummer:
- 301-08-894
- Tillv. art.nr:
- 3053/1 VI005
- Tillverkare / varumärke:
- Alpha Wire
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.52 mm² | |
| Sheath Colour | Purple | |
| Cable Shape | Wire/Single Core | |
| American Wire Gauge | 20 AWG | |
| Core Strands | 1/0.81 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Outer Diameter | 1.63mm | |
| Voltage Rating | 300 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +105°C | |
| Conductor Material | Copper | |
| Wire Style | UL1007 | |
| Standards Met | AWM/STYLE 1569, CSA International TR-64, FT1, UL AWM/STYLE 1007, VW-1 | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Insulation Wall Thickness | 0.4mm | |
| Size of Strands | 0.81 mm | |
| Number of Strands | 1 | |
Välj alla | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.52 mm² | ||
Sheath Colour Purple | ||
Cable Shape Wire/Single Core | ||
American Wire Gauge 20 AWG | ||
Core Strands 1/0.81 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Outer Diameter 1.63mm | ||
Voltage Rating 300 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Copper | ||
Wire Style UL1007 | ||
Standards Met AWM/STYLE 1569, CSA International TR-64, FT1, UL AWM/STYLE 1007, VW-1 | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Insulation Wall Thickness 0.4mm | ||
Size of Strands 0.81 mm | ||
Number of Strands 1 | ||
