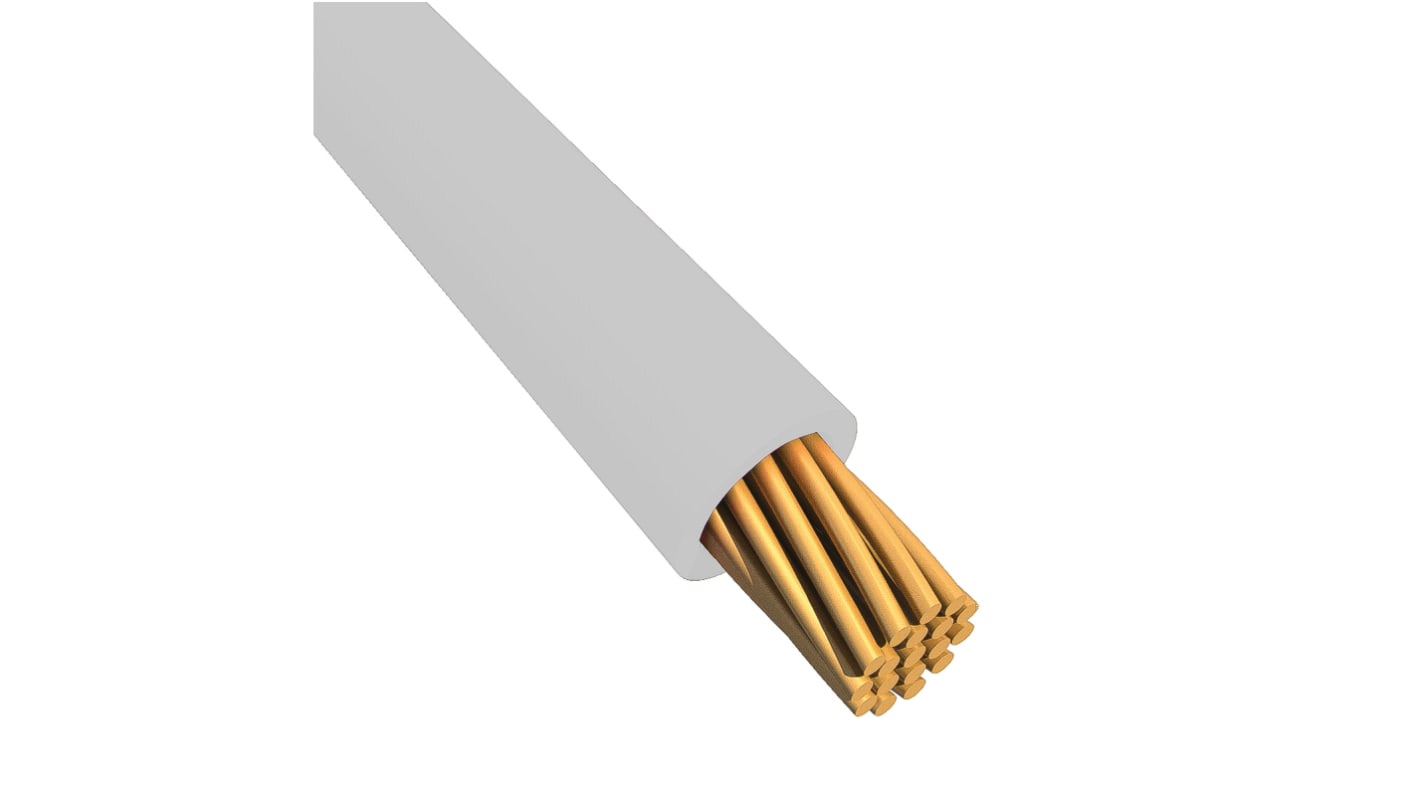

Alpha Wire Ecogen Ecowire Series White 2.1 mm² Hook Up Wire, 14 AWG, 41/0.25 mm, 305m, MPPE Insulation, 6717 WH001

RS-artikelnummer:: 838-5150
Tillv. art.nr:: 6717 WH001
Tillverkare / varumärke:: Alpha Wire

Alpha Wire Ecogen Ecowire Series White 2.1 mm² Hook Up Wire, 14 AWG, 41/0.25 mm, 305m, MPPE Insulation, 6717 WH001

Antal (1 rulle med 305 meter)**

6 060,77 kr

(exkl. moms)

7 575,96 kr

(inkl. moms)

25 I lager för avsändande samma dag*

* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.

FRI frakt på alla onlineordrar över 500,00 kr

Rulle(ar)	Per rulle	Per meter**
1 +	6 060,77 kr	19,871 kr

**vägledande pris

RS-artikelnummer:: 838-5150
Tillv. art.nr:: 6717 WH001
Tillverkare / varumärke:: Alpha Wire

Alpha Wire 600 V, mPPE Hook Up Wire, EcoWire Series

EcoWire from Alpha Wire is the latest innovation in hook-up wire. EcoWire combines increased performance with a minimal environmental impact due to it being fully recyclable.
This hook up wire is manufactured from a modified polyphenylene ether (mPPE) thermoplastic. EcoWire can be easily recycled since it does not contain hazardous materials. The enhanced dielectric properties of this hook up wire make it possible to have a reduced wall thickness while still maintaining the same electrical properties as PVC.

Features and Benefits

• Fully recyclable
• Up to 45% smaller diameter than PVC
• Up to 40% lighter than other insulation materials
• Excellent dielectric strength
• Low specific gravity
• Flame retardant to UL VW-1 rating
• EcoWire Plus range available with excellent resistance to hazardous oils and chemicals
• Stranded or solid tinned copper conductors
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

What is UL/CSA standard?

The UL standard (Underwriters Laboratories) is a recognised certificate that requires the rigorous testing of product samples to determine whether the product meets specific, defined requirements. These requirements are often based on UL's published and nationally recognised Standards for Safety.

CSA approval (Canadian Standards Association) provides product testing and certification for electrical, mechanical, plumbing, gas and various other products. This approval is recognised in Canada, the U.S and various countries around the world. It includes a stringent series of flame tests on wires and cables.

Product Application Information

Hook up wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances.

Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

Standards

UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS/RoHS2 Compliant, IEC 60332-2 Flame Behavior, REACH Compliant, CE Compliant

6717 WH001

Temperature Range: -40°C to +105°C
Conductor Size: 14 AWG
Stranding: 41/30 AWG
Colour: White

EcoWire ™

Attribute	Value
Cross Sectional Area	2.1 mm²
Sheath Colour	White
American Wire Gauge	14 AWG
Cable Shape	Single Core
Core Strands	41/0.25 mm
Length	305m
Insulation Material	MPPE
Voltage Rating	600 V
Outer Diameter	2.44mm
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+105°C
Conductor Material	Copper
Wire Style	UL11028
Standards Met	CE, CSA, UL
Series	Ecogen Ecowire
Insulation Wall Thickness	0.3mm
Shield Type	Unshielded
Number of Strands	41
Size of Strands	0.25 mm
