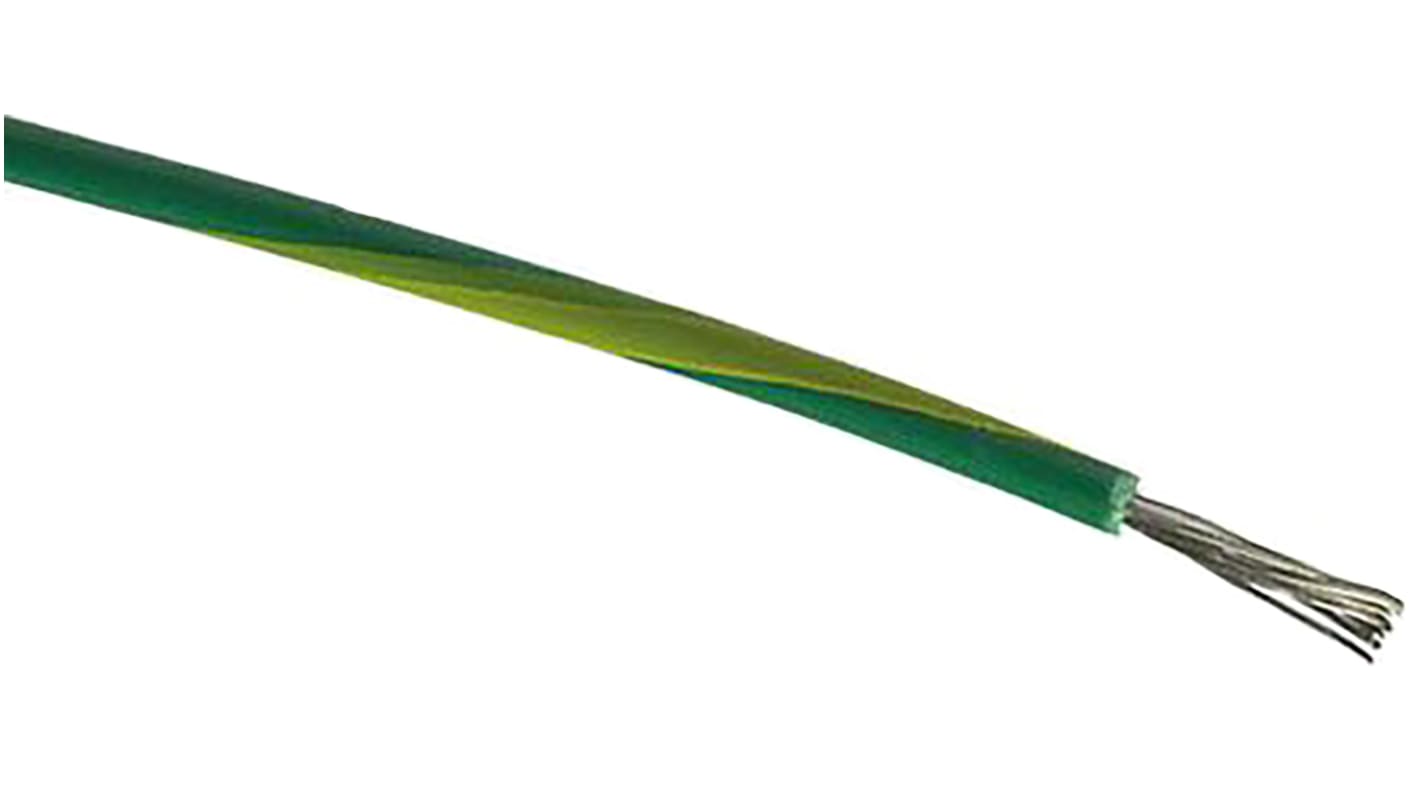

RS PRO Green/Yellow 1mm² Hook Up Wire, 18 AWG, 32/0.2 mm, 25m, PVC Insulation

RS-artikelnummer:: 811-4413
Tillverkare / varumärke:: RS PRO

RS PRO Green/Yellow 1mm² Hook Up Wire, 18 AWG, 32/0.2 mm, 25m, PVC Insulation

Antal (1 rulle med 25 meter)*

158,14 kr

(exkl. moms)

197,68 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

225 enhet(er) är redo att levereras
Plus 20 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Rulle(ar)	Per rulle	Per meter*
1 +	158,14 kr	6,326 kr

*vägledande pris

RS-artikelnummer:: 811-4413
Tillverkare / varumärke:: RS PRO

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	RS PRO
	Cross Sectional Area	1mm²
	Sheath Colour	Green/Yellow
	American Wire Gauge	18 AWG
	Cable Shape	Single Core
	Core Strands	32/0.2 mm
	Length	25m
	Insulation Material	PVC
	Voltage Rating	1000 V
	Outer Diameter	3.4mm
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-15°C
	Conductor Material	Copper
	Standards Met	BS 6231
	Cable Type	Control
	Series	FLEXIBLE BK
	Shield Type	Unshielded
	Insulation Wall Thickness	0.8mm
	Size of Strands	0.2mm
	Outer Sheath Material	PVC
	Number of Strands	32

	Välj alla
	Brand RS PRO
	Cross Sectional Area 1mm²
	Sheath Colour Green/Yellow
	American Wire Gauge 18 AWG
	Cable Shape Single Core
	Core Strands 32/0.2 mm
	Length 25m
	Insulation Material PVC
	Voltage Rating 1000 V
	Outer Diameter 3.4mm
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -15°C
	Conductor Material Copper
	Standards Met BS 6231
	Cable Type Control
	Series FLEXIBLE BK
	Shield Type Unshielded
	Insulation Wall Thickness 0.8mm
	Size of Strands 0.2mm
	Outer Sheath Material PVC
	Number of Strands 32

COO (Country of Origin):: GB

RS PRO Single Core Control Cable – Type BK

From RS PRO, comes a range of high quality and great value single core control cables. Manufactured with a premium annealed copper conductor and insulated with PVC (polyvinyl chloride). These cables are supplied on a reel and are the ideal solution for switchgear and control gear wiring.

Features and Benefits

• Maximum operating temperature of 70°C
• Voltage rating of 1000 V
• Availale length:100 m or 25m, depending on attribute "Length".
• Single core cable – Flexible Type BK
• Insulation: PVC
• Meets BS6231 standards
• Flame retardant

Applications

Single core control cable has a variety of application use such as;

• Electrical cabinets
• Industrial electrical installations
• Small electronic devices
• Relay and instrumentation panels
• Control metering
• Motor starters

Why would you choose RS PRO for single core control cable?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.

Standards

BS6231
