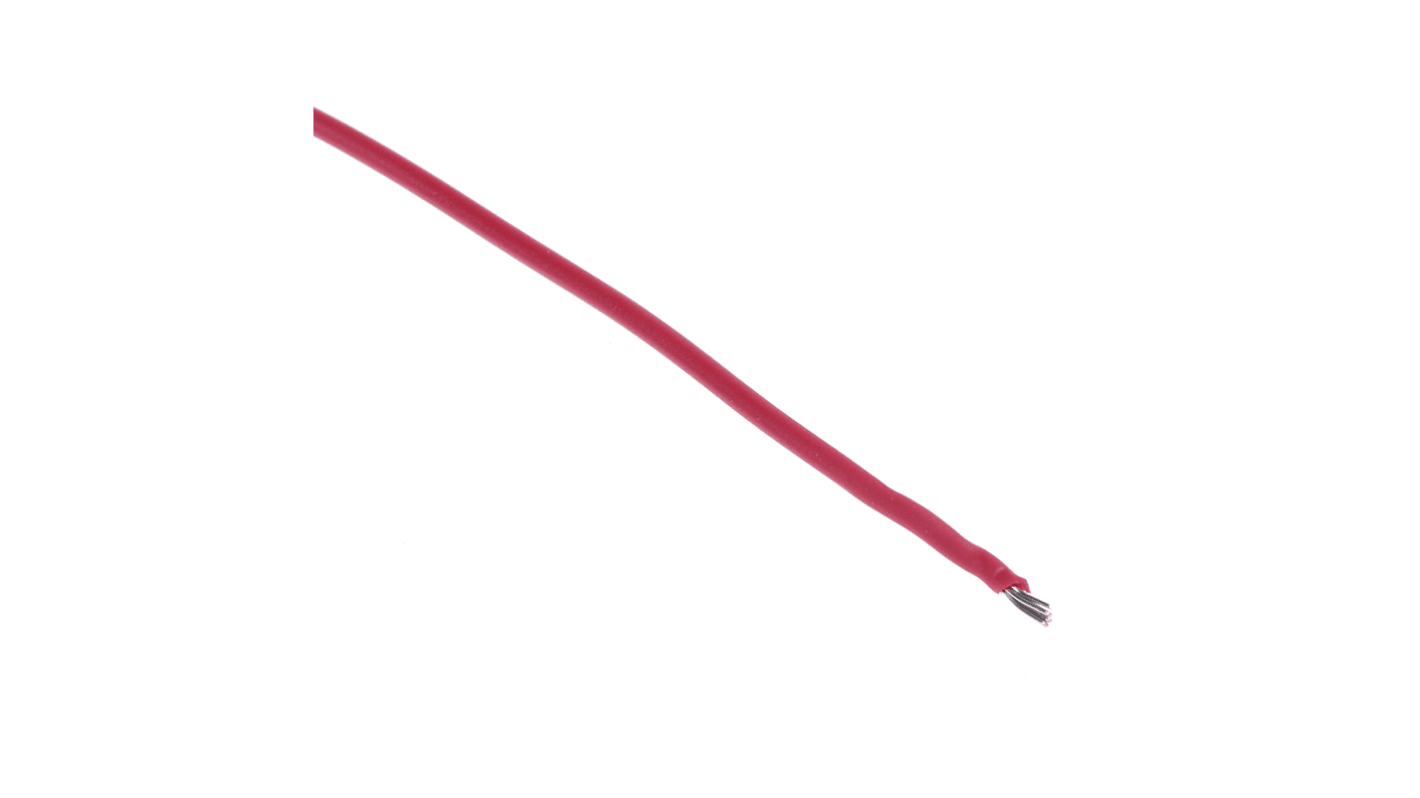

Alpha Wire Ecogen Ecowire Series Red 0.2 mm² Hook Up Wire, 24 AWG, 7/0.20 mm, 30m, MPPE Insulation, 6712 RD005

RS-artikelnummer:: 687-7424
Distrelec artikelnummer:: 300-59-326
Tillv. art.nr:: 6712 RD005
Tillverkare / varumärke:: Alpha Wire

Alpha Wire Ecogen Ecowire Series Red 0.2 mm² Hook Up Wire, 24 AWG, 7/0.20 mm, 30m, MPPE Insulation, 6712 RD005

Price 1 rulle med 30 meter**

311,25 kr

(exkl. moms)

389,06 kr

(inkl. moms)

25 I lager för avsändande samma dag*

40 Inom 1 arbetsdag(ar) (UK lager)

* Leveransdatumen kan ändras beroende på vald kvantitet och leveransadress.

FRI frakt på alla onlineordrar över 500,00 kr

Rulle(ar)	Per rulle	Per meter**
1 +	311,25 kr	10,375 kr

**vägledande pris

RS-artikelnummer:: 687-7424
Distrelec artikelnummer:: 300-59-326
Tillv. art.nr:: 6712 RD005
Tillverkare / varumärke:: Alpha Wire

Alpha Wire 600 V, mPPE Hook Up Wire, EcoWire Series

EcoWire from Alpha Wire is the latest innovation in hook-up wire. EcoWire combines increased performance with a minimal environmental impact due to it being fully recyclable.
This hook up wire is manufactured from a modified polyphenylene ether (mPPE) thermoplastic. EcoWire can be easily recycled since it does not contain hazardous materials. The enhanced dielectric properties of this hook up wire make it possible to have a reduced wall thickness while still maintaining the same electrical properties as PVC.

Features and Benefits

• Fully recyclable
• Up to 45% smaller diameter than PVC
• Up to 40% lighter than other insulation materials
• Excellent dielectric strength
• Low specific gravity
• Flame retardant to UL VW-1 rating
• EcoWire Plus range available with excellent resistance to hazardous oils and chemicals
• Stranded or solid tinned copper conductors
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

What is UL/CSA standard?

The UL standard (Underwriters Laboratories) is a recognised certificate that requires the rigorous testing of product samples to determine whether the product meets specific, defined requirements. These requirements are often based on UL's published and nationally recognised Standards for Safety.

CSA approval (Canadian Standards Association) provides product testing and certification for electrical, mechanical, plumbing, gas and various other products. This approval is recognised in Canada, the U.S and various countries around the world. It includes a stringent series of flame tests on wires and cables.

Product Application Information

Hook up wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances.

Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

Standards

UL AWM 11028 VW-1, CSA AWM I A/B FT1, RoHS/RoHS2 Compliant, IEC 60332-2 Flame Behavior, REACH Compliant, CE Compliant

Belden Alpha Wire Hook Up Wire, Red MPPE Sheath, 600V Voltage Rating - EcoWire Series - 6712 RD005

Keep your industrial signal transmissions on the straight and narrow with this hook up wire from Belden's Alpha Wire range. A small outer diameter of 1.09mm, combined with 0.3mm insulation thickness, makes it easy to slot into a narrow enclosure. The core's seven strands are made of highly conductive copper, so there's no risk of thermal expansion affecting its performance.

Features & Benefits

• Halogen-free for improved safety in the event of a fire
• Fully recyclable material for sustainability
• 30m length is sufficient for lots of small wiring jobs
• Delivers reliable operation in temperatures between -40°C and +105°C

Applications

• Factory automation
• Control panels
• Automotive industry

How flexible is this cable?

This hook up wire's bending capacity is up to 10 times its diameter, so it's safe to route around corners or coil loosely.

EcoWire ™

Attribute	Value
Cross Sectional Area	0.2 mm²
Sheath Colour	Red
Cable Shape	Single Core
American Wire Gauge	24 AWG
Core Strands	7/0.20 mm
Length	30m
Insulation Material	MPPE
Outer Diameter	1.09mm
Voltage Rating	600 V
Maximum Operating Temperature	+105°C
Minimum Operating Temperature	-40°C
Conductor Material	Copper
Wire Style	UL11028
Standards Met	CE, CSA, UL
Series	Ecogen Ecowire
Shield Type	Unshielded
Insulation Wall Thickness	0.3mm
Number of Strands	7
Size of Strands	0.2 mm
