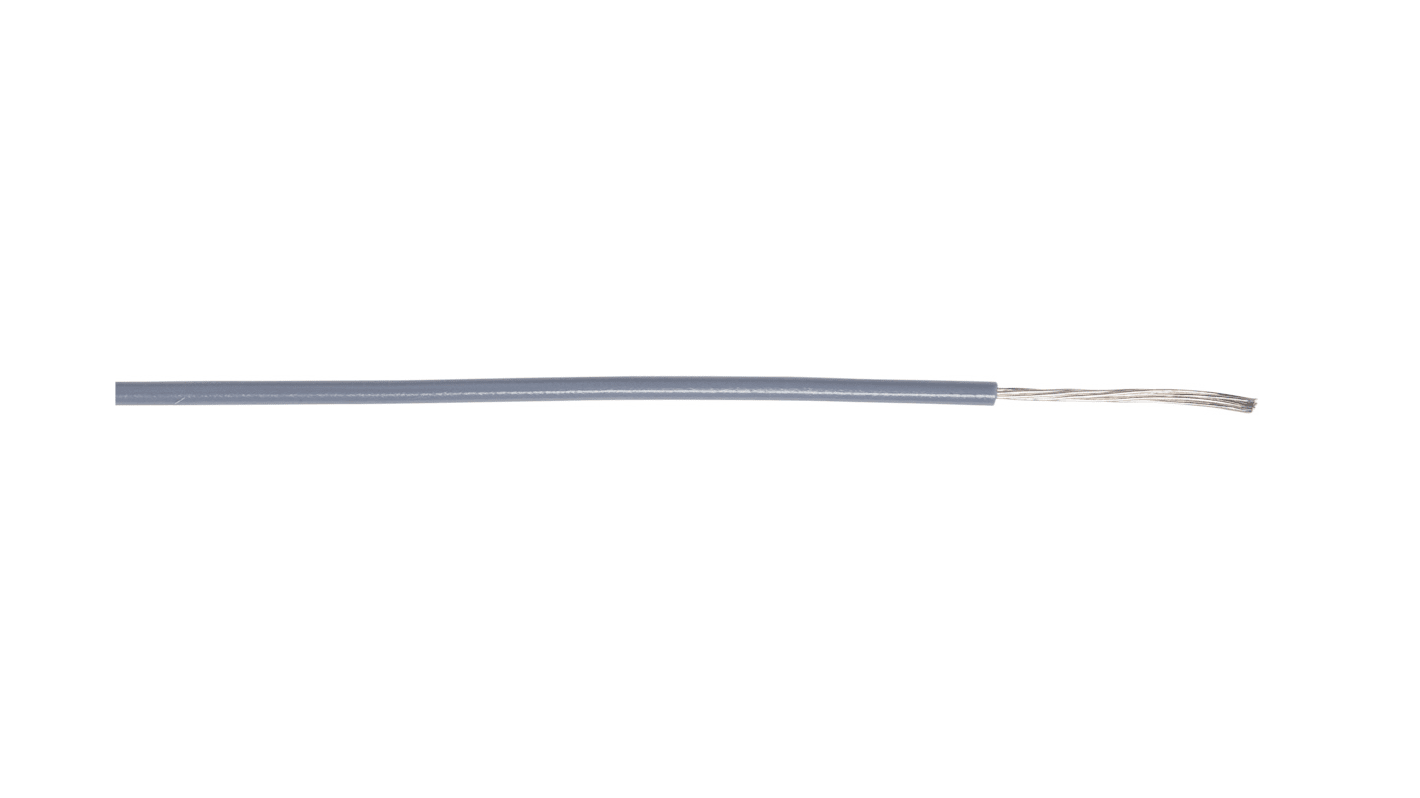

AXINDUS KY Series Grey 0.6 mm² Hook Up Wire, 20 AWG, 19 x 0.2 mm, 200m, PVC Insulation, KY33A03G
- RS-artikelnummer:
- 201-0643
- Tillv. art.nr:
- KY33A03G
- Tillverkare / varumärke:
- AXINDUS
Antal (1 rulle med 200 meter)*
1 506,72 kr
(exkl. moms)
1 883,40 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 1 enhet(er) från den 15 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar) | Per rulle | Per meter* |
|---|---|---|
| 1 + | 1 506,72 kr | 7,534 kr |
*vägledande pris
- RS-artikelnummer:
- 201-0643
- Tillv. art.nr:
- KY33A03G
- Tillverkare / varumärke:
- AXINDUS
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | AXINDUS | |
| Cross Sectional Area | 0.6 mm² | |
| Sheath Colour | Grey | |
| Cable Shape | Single Core | |
| American Wire Gauge | 20 AWG | |
| Core Strands | 19 x 0.2 mm | |
| Length | 200m | |
| Insulation Material | PVC | |
| Outer Diameter | 2.2 → 2.5mm | |
| Voltage Rating | 750 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Standards Met | IEC 60332-1, NF C 93-521 | |
| Fire Behaviour | Flame Retardant | |
| Series | KY | |
| Shield Type | Unshielded | |
| Size of Strands | 0.2 mm | |
| Number of Strands | 19 | |
| Välj alla | ||
|---|---|---|
Brand AXINDUS | ||
Cross Sectional Area 0.6 mm² | ||
Sheath Colour Grey | ||
Cable Shape Single Core | ||
American Wire Gauge 20 AWG | ||
Core Strands 19 x 0.2 mm | ||
Length 200m | ||
Insulation Material PVC | ||
Outer Diameter 2.2 → 2.5mm | ||
Voltage Rating 750 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Standards Met IEC 60332-1, NF C 93-521 | ||
Fire Behaviour Flame Retardant | ||
Series KY | ||
Shield Type Unshielded | ||
Size of Strands 0.2 mm | ||
Number of Strands 19 | ||
- COO (ursprungsland):
- TR
The CAE Multimedia Connect KY cabling wires is used in used in the electronics and electrical engineering sectors for wiring small and medium sized appliances.
Conductor material- Copper strand tinned
Flexible multi-wire conductor class
PVC 105°C core insulation
Operating temperature is -40°C to +105°C
Flexible multi-wire conductor class
PVC 105°C core insulation
Operating temperature is -40°C to +105°C
