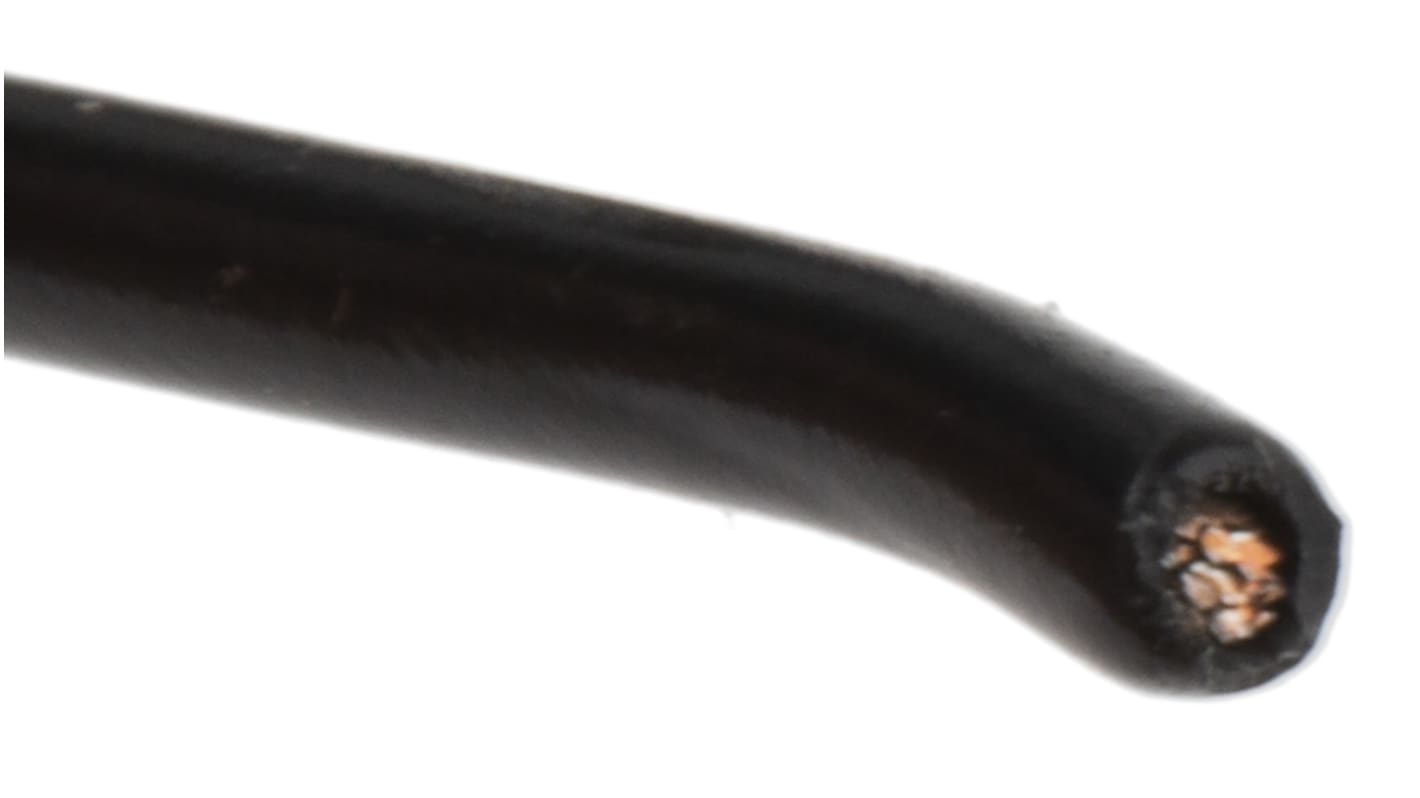

Alpha Wire Hook-up Wire PVC Series Black 0.81 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 304m, PVC Insulation, 3055 BK001

RS-artikelnummer:: 124-2564
Distrelec artikelnummer:: 300-99-373
Tillv. art.nr:: 3055 BK001
Tillverkare / varumärke:: Alpha Wire

Alpha Wire Hook-up Wire PVC Series Black 0.81 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 304m, PVC Insulation, 3055 BK001

Antal (1 rulle med 304 meter)*

1 501,41 kr

(exkl. moms)

1 876,76 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

Dessutom levereras 79 enhet(er) från den 22 december 2025
Dessutom levereras 5 enhet(er) från den 22 december 2025
Dessutom levereras 23 enhet(er) från den 22 december 2025

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Rulle(ar)	Per rulle	Per meter*
1 +	1 501,41 kr	4,939 kr

*vägledande pris

RS-artikelnummer:: 124-2564
Distrelec artikelnummer:: 300-99-373
Tillv. art.nr:: 3055 BK001
Tillverkare / varumärke:: Alpha Wire

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Alpha Wire
	Cross Sectional Area	0.81 mm²
	Sheath Colour	Black
	American Wire Gauge	18 AWG
	Cable Shape	Single Core
	Core Strands	16/0.25 mm
	Length	304m
	Insulation Material	PVC
	Outer Diameter	2.01mm
	Voltage Rating	300 V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+105°C
	Conductor Material	Tinned Copper
	Standards Met	UL Listed
	Wire Style	UL1007
	Fire Behaviour	Flame Retardant
	Series	Hook-up Wire PVC
	Insulation Wall Thickness	0.4mm
	Shield Type	Unshielded
	Size of Strands	0.25 mm
	Number of Strands	16

	Välj alla
	Brand Alpha Wire
	Cross Sectional Area 0.81 mm²
	Sheath Colour Black
	American Wire Gauge 18 AWG
	Cable Shape Single Core
	Core Strands 16/0.25 mm
	Length 304m
	Insulation Material PVC
	Outer Diameter 2.01mm
	Voltage Rating 300 V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +105°C
	Conductor Material Tinned Copper
	Standards Met UL Listed
	Wire Style UL1007
	Fire Behaviour Flame Retardant
	Series Hook-up Wire PVC
	Insulation Wall Thickness 0.4mm
	Shield Type Unshielded
	Size of Strands 0.25 mm
	Number of Strands 16

Belden Alpha Wire Unshielded Hook-Up Wire, 0.81mm² Cross-Sectional Area - Premium Series - 3055

Choose this hook-up wire from Belden's Alpha Wire range to ensure your electrical devices function reliably. It's commonly used to connect the internal relays and circuits of motors and electronic tools. Tinned copper conductor material has excellent conductivity and corrosion resistance to ensure a long-lasting and reliable connection. The cable is sheathed in PVC (polyvinyl chloride), so it can withstand the impact and exposure to chemicals expected in demanding environments. You can use this versatile wire in a wide range of domestic and commercial applications.

Features & Benefits

• Ample length so you can cut it according to your specifications
• Maximum pull tension of 12.6lbs to prevent wear and tear in heavy-duty applications
• Flame-retardant for enhanced fire safety
• Unshielded design means it doesn't need to be grounded, saving you time and effort during installation

Applications

• Automotive industry
• Electrical circuits
• Networking devices
• Power stations

Can I use this hook-up wire at extreme temperatures?

This hook-up wire has a broad operating temperature range of -40°C to +105°C, making it suitable for use in a variety of demanding environments.
