Lapp Black 35 mm² Hook Up Wire, 2 AWG, 1100/0.21 mm, 50m, Rubber Insulation, 2210702

RS-artikelnummer:: 406-988
Distrelec artikelnummer:: 303-99-561
Tillv. art.nr:: 2210702
Tillverkare / varumärke:: Lapp

Lapp Black 35 mm² Hook Up Wire, 2 AWG, 1100/0.21 mm, 50m, Rubber Insulation, 2210702

Antal (1 rulle med 50 meter)*

9 828,67 kr

(exkl. moms)

12 285,84 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

4 enhet(er) är redo att levereras
Plus 1 enhet(er) är redo att levereras från en annan plats
Dessutom levereras 4 enhet(er) från den 09 januari 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Rulle(ar)	Per rulle	Per meter*
1 +	9 828,67 kr	196,573 kr

*vägledande pris

RS-artikelnummer:: 406-988
Distrelec artikelnummer:: 303-99-561
Tillv. art.nr:: 2210702
Tillverkare / varumärke:: Lapp

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Lapp
	Cross Sectional Area	35 mm²
	Sheath Colour	Black
	American Wire Gauge	2 AWG
	Cable Shape	Single Core
	Core Strands	1100/0.21 mm
	Length	50m
	European Harmonised Code	H01N2-D
	Insulation Material	Rubber
	Voltage Rating	100 V
	Outer Diameter	12.6mm
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-25°C
	Conductor Material	Copper
	Standards Met	HD 22.6 S2 resp. VDE 0282 part 6
	Cable Type	Welding
	Fire Behaviour	Flame Retardant
	Insulation Wall Thickness	2mm
	Number of Strands	1100
	Resistant To	Oils, UV
	Outer Sheath Material	Rubber
	Size of Strands	0.21 mm

	Välj alla
	Brand Lapp
	Cross Sectional Area 35 mm²
	Sheath Colour Black
	American Wire Gauge 2 AWG
	Cable Shape Single Core
	Core Strands 1100/0.21 mm
	Length 50m
	European Harmonised Code H01N2-D
	Insulation Material Rubber
	Voltage Rating 100 V
	Outer Diameter 12.6mm
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -25°C
	Conductor Material Copper
	Standards Met HD 22.6 S2 resp. VDE 0282 part 6
	Cable Type Welding
	Fire Behaviour Flame Retardant
	Insulation Wall Thickness 2mm
	Number of Strands 1100
	Resistant To Oils, UV
	Outer Sheath Material Rubber
	Size of Strands 0.21 mm

COO (Country of Origin):: DE

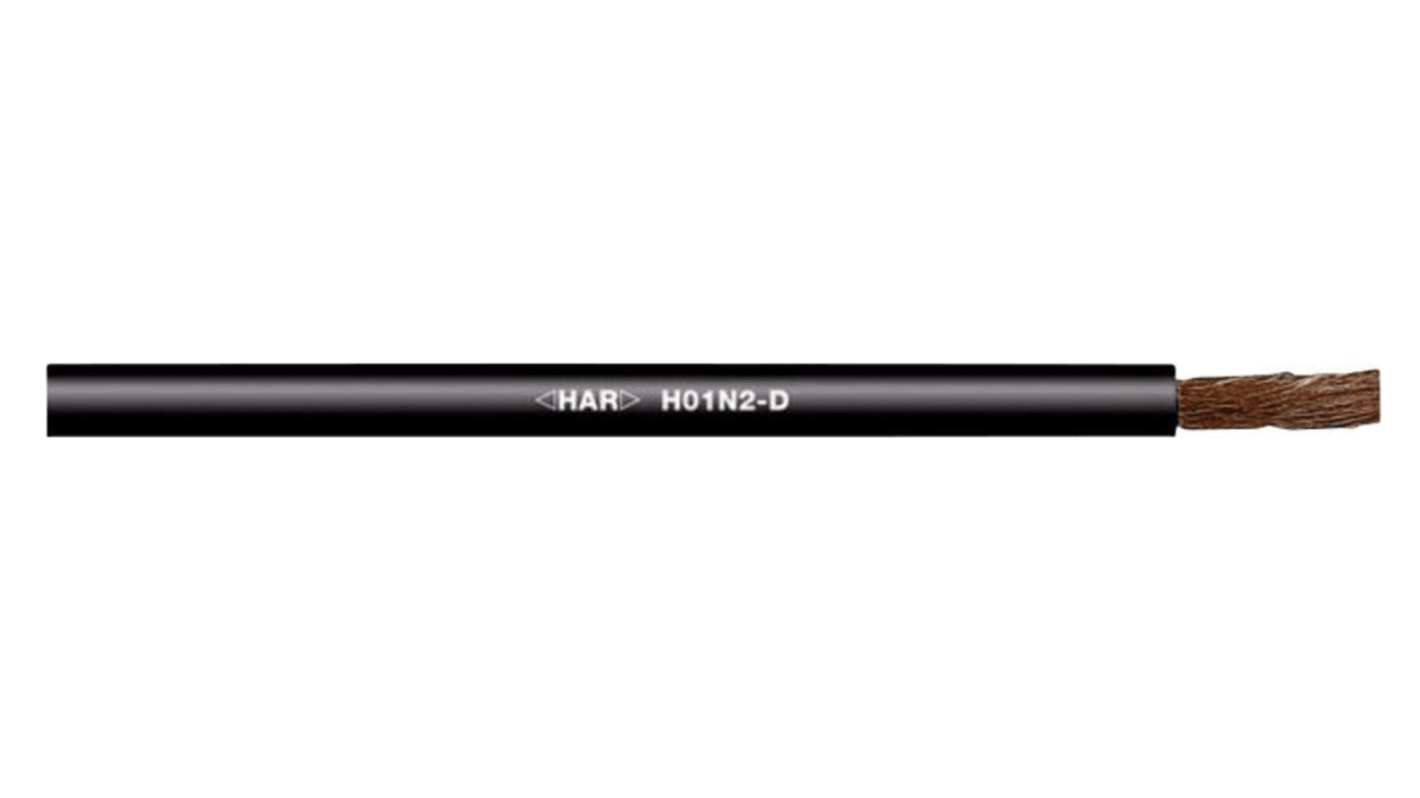

LAPP Welding Cable, 100V Voltage Rating, 2AWG - 2210702

Transmit power from your welding equipment to handheld tools using this welding cable from LAPP. It has a minimum bending radius of 12 times the cable diameter so it offers high flexibility without snagging. You can rely on it in demanding environments as it has a sheath made from polychloroprene, which is resistant to corrosion and oils. Its conductors are made from highly-conductive copper, meaning you can depend on this cable for a reliable connection.

Features & Benefits

• Wide operating temperature range between -25ºC and +85ºC, so suited to challenging settings
• Voltage rating of 100V for use in low-voltage applications
• Outer diameter of 14.2mm for convenient installation in setups with minimal space

Applications

• Conveyor systems
• Assembly lines
• Machine tools

Does this cable have any safety features?

This cable has rubber insulation with a thickness of 2mm, so users are protected from the risk of electric shocks.
