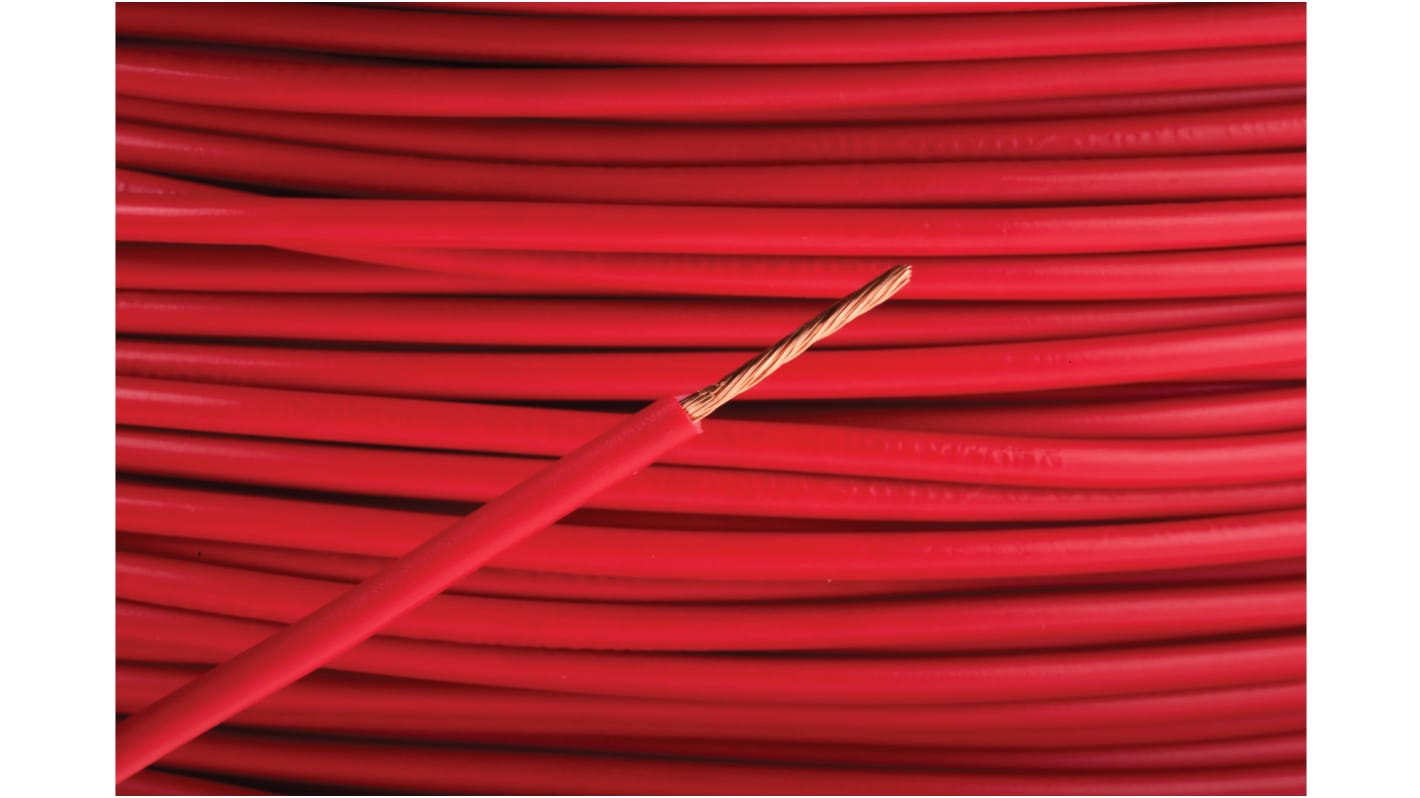

    RS PRO Red 1 mm² Equipment Wire, 17 AWG, 32/0.2 mm, 100m, PVC Insulation

    RS-artikelnummer:
    361-759
    Tillverkare / varumärke:
    RS PRO
    RS PRO
    Se alla Hook Up Wire
    Tillfälligt slut i lager restorder för leverans 2022-10-20
    Add to Basket
    Rulle(ar)

    Lagt till varukorgen

    Pris (ex. moms) 1 Reel of 100 Metre(s)

    461,00 kr

    (exkl. moms)

    576,25 kr

    (inkl. moms)

    Rulle(ar)Per ReelPer Metre*
    1 - 4461,00 kr4,61 kr
    5 - 9437,97 kr4,38 kr
    10 - 19414,94 kr4,149 kr
    20 +361,40 kr3,614 kr

    Alternativ

    Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.

    Lapp Red 1 mm² Hook Up Wire, 32/0.2 mm, 100m, PVC Insulation
    RS-artikelnummer
    724-4361

    Pris (ex. moms) 1 Reel of 100 Metre(s)

    409,07 kr

    (exkl. moms)

    511,34 kr

    (inkl. moms)

    RS-artikelnummer:
    361-759
    Tillverkare / varumärke:
    RS PRO
    COO (Country of Origin):
    GB

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    GB

    Produktdetaljer

    RS Pro Hook Up Wire - 100 m Length


    Brought to you by RS Pro, a range of hook up wire. Suitable for electrical power, lighting and internal wiring applications. All of the standard equipment wire within this range is 100 m in length and with a variety of sheath colours to choose from, they are suitable for various applications. Due to robust and carefully manufactured copper conductor, all models are highly reliable and excellent quality.


    Features and Benefits


    • PVC sheath material for insulation
    • Various colours to choose from, including red, blue and green
    • Sizes range from 0.5 mm² CSA/22 AWG up to 2.5 mm² CSA/14 AWG
    • Variety of conductors, including - BS6004, Class 5 and Plain annealed
    • Supplied on a 100 m reel


    What is hook up wire used for?


    This equipment wire can be applied to endless applications. These can range from domestic household appliances, industrial equipment and factory machine. Due to the reliability of the copper conductors, these types of wires are usually the preferred choice with any internal wiring system. As an example, these are some common places you would find equipment wire:

    • Circuit boards
    • Computer internals
    • Mobile phones and other battery operated devices
    • Vehicle lights


    What is hook up wire?


    Hook up wire, or copper wire/equipment wire as it's also called is primarily used for low voltage and current applications. Copper strands are sheathed by a cover (usually PVC) and act as the conductor of electricity to power its target. Frequently found within everyday household and workplace appliances, hook up wire is a common occurrence. If a device has multiple wires to operate, hook up wire will usually be installed with different sheath colours on their respective terminals. This is to avoid the confusion of a "spaghetti junction" of wires.


    Benefits of a copper conductor


    Copper is the go to metal for nearly all cable. Due to the excellent conduction of electricity it provides. Circuit boards, telephone lines, power cables (including multicore) all use copper as the solid core interior of their wire.


    Note

    The RS Brand range of products has been certified by engineers as offering comparable quality to that of leading brands without the premium price tag

    Approvals

    BASEC

    Standards

    BS EN 50525-2-31


    Specifikationer

    AttributeValue
    Cross Sectional Area1 mm²
    Sheath ColourRed
    American Wire Gauge17 AWG
    Core Strands32/0.2 mm
    Length100m
    Insulation MaterialPVC
    Voltage Rating500 V
    Outer Diameter2.8mm
    Maximum Operating Temperature+70°C
    Conductor MaterialAnnealed Copper
    Standards MetBS 6004, BS EN 50525-2-31, RoHS Compliant
    Wire Style2491X
    Insulation Wall Thickness0.6mm
    Harmonised CodeH05V-K
    Shield TypeUnshielded
