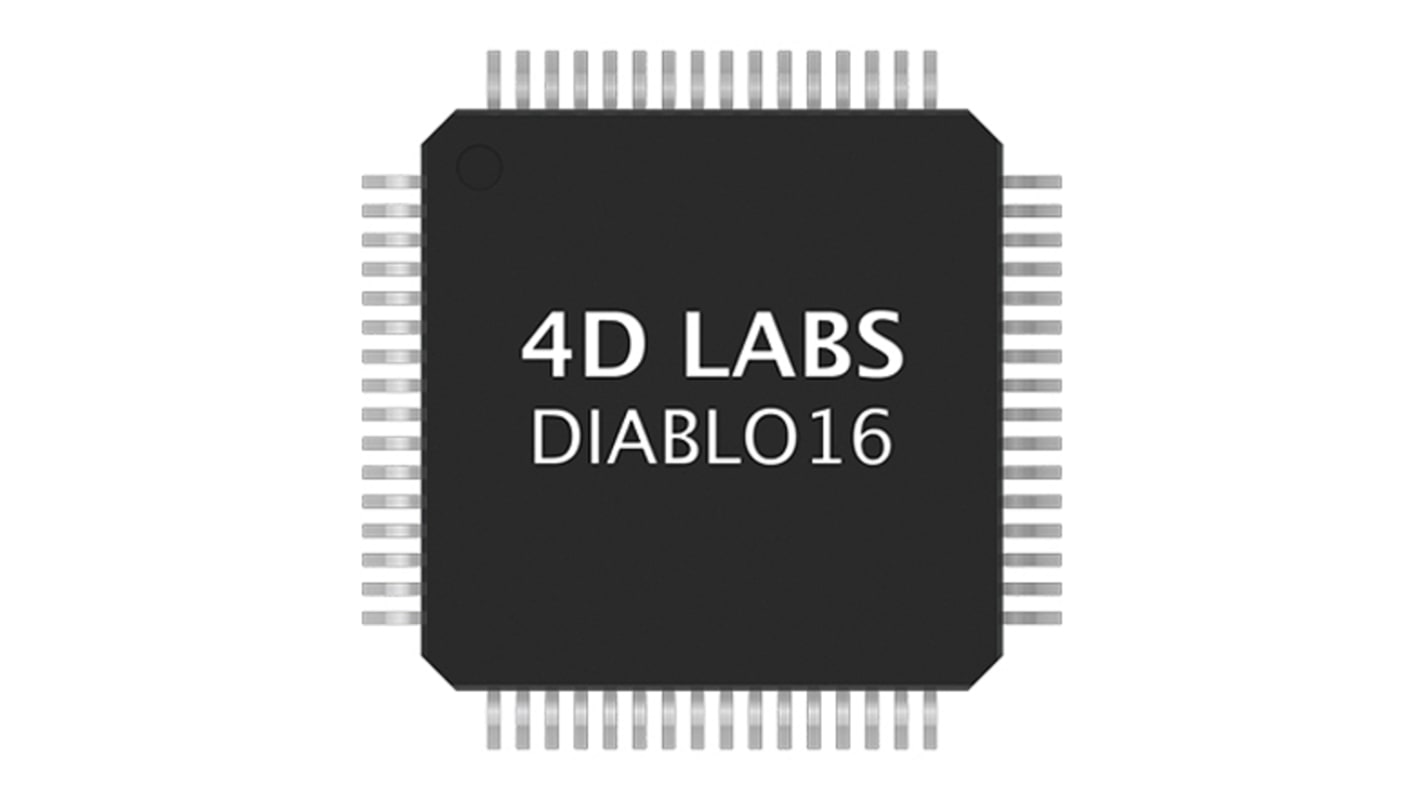

DIABLO16, Graphics Controller 64-Pin TQFP

  • RS-artikelnummer 901-4288
  • Tillv. art.nr DIABLO16
  • Tillverkare / varumärke 4D Systems
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): PH
Produktdetaljer

DIABLO16 Graphics Controller for LCD and OLED Displays, 4D Systems

The DIABLO16 embedded graphics controller from 4D Systems, can be integrated into a variety of LCD and OLED displays. The controller uses the 4DGL graphics language supported by Extensive Virtual Engine (EVE) — a virtual processor with a comprehensive byte-code instruction set. You can also benefit from Workshop 4 IDE — a great development support software for all 4D processors and modules. The software has four development environments — Designer, Serial, ViSi and ViSi Genie.

Recommended applications for the DIABLO16 include, but are not limited to, home appliances, electronic gauges & meters, test & mesurement, general purpose instrumentation, GPS navigation systems, automotive system displays, medical instruments, security systems, gaming, aviation and HMI touch panels.

Features & Benefits of the DIABLO16 Graphics Controller
•6 banks of 32750 bytes of flash memory
•32 KB of SRAM
•16 I/O pins
•FAT16 files
•12C & SPI serial communications interface
•PWM output that supports audio WAV files
•4-Wire resistive touch panel interface
•8 x 16-bit timers
•Can operate as a standalone graphics controller
•Can connect to any LCD or OLED that supports an 80-series, 16-bit wide CPU interface

4D Systems Graphics Controllers

Specifikationer
Attribute Value
Mounting Type Surface Mount
Package Type TQFP
Pin Count 64
Dimensions 10 x 10 x 1.05mm
Height 1.05mm
Maximum Operating Temperature +80 °C
Length 10mm
Width 10mm
Minimum Operating Temperature -40 °C
12 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
152,52 kr
(exkl. moms)
190,65 kr
(inkl. moms)
Enheter
Per unit
1 +
152,52 kr
