Hirschmann Test & Measurement Black Grabber Clip with Split Clamp, 10A, 1kV, 4mm Socket
- RS-artikelnummer:
- 103-8258
- Tillv. art.nr:
- 972307100
- Tillverkare / varumärke:
- Hirschmann Test & Measurement
Mängdrabatt möjlig
Antal (1 enhet)*
161,97 kr
(exkl. moms)
202,46 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- 99 enhet(er) är redo att levereras
- Plus 24 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 4 | 161,97 kr |
| 5 - 9 | 149,97 kr |
| 10 + | 137,98 kr |
*vägledande pris
- RS-artikelnummer:
- 103-8258
- Tillv. art.nr:
- 972307100
- Tillverkare / varumärke:
- Hirschmann Test & Measurement
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Hirschmann Test & Measurement | |
| Product Type | Grabber Clip | |
| Tip Type | Split Clamp | |
| Colour | Black | |
| Current Rating | 10A | |
| Voltage Rating | 1kV | |
| Contact Material | Stainless Steel | |
| Probe Socket Size | 4mm | |
| Insulation Material | PBT | |
| Length | 162mm | |
| Välj alla | ||
|---|---|---|
Brand Hirschmann Test & Measurement | ||
Product Type Grabber Clip | ||
Tip Type Split Clamp | ||
Colour Black | ||
Current Rating 10A | ||
Voltage Rating 1kV | ||
Contact Material Stainless Steel | ||
Probe Socket Size 4mm | ||
Insulation Material PBT | ||
Length 162mm | ||
RoHS-status: Undantagen
- COO (Country of Origin):
- DE

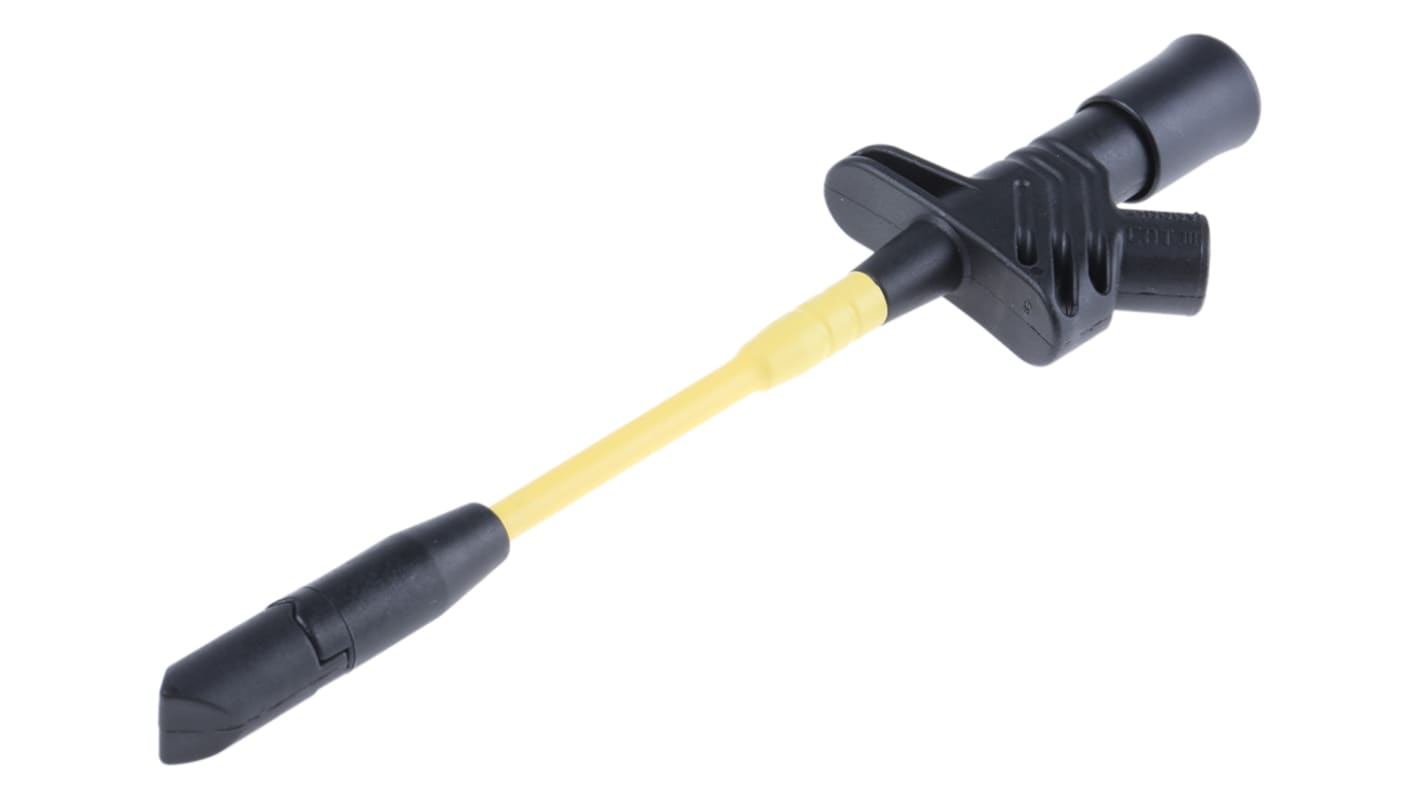

KLEPS 2700 4 mm Safety Clamp Test Tip
Safety system clamp-type test probe with two-part test clamp
The sprung stainless steel tip can contact insulated cables from 0.25 → 1.5 mm2 (Ø 3.5 mm) without the need for stripping
Socket connector made from brass
Voltage rating: AC/DC 1000 V
Current rating: 10 A
Temperature range: -25 °C → +80 °C
IEC 61010 1000 V CATIII
The sprung stainless steel tip can contact insulated cables from 0.25 → 1.5 mm2 (Ø 3.5 mm) without the need for stripping
Socket connector made from brass
Voltage rating: AC/DC 1000 V
Current rating: 10 A
Temperature range: -25 °C → +80 °C
IEC 61010 1000 V CATIII
