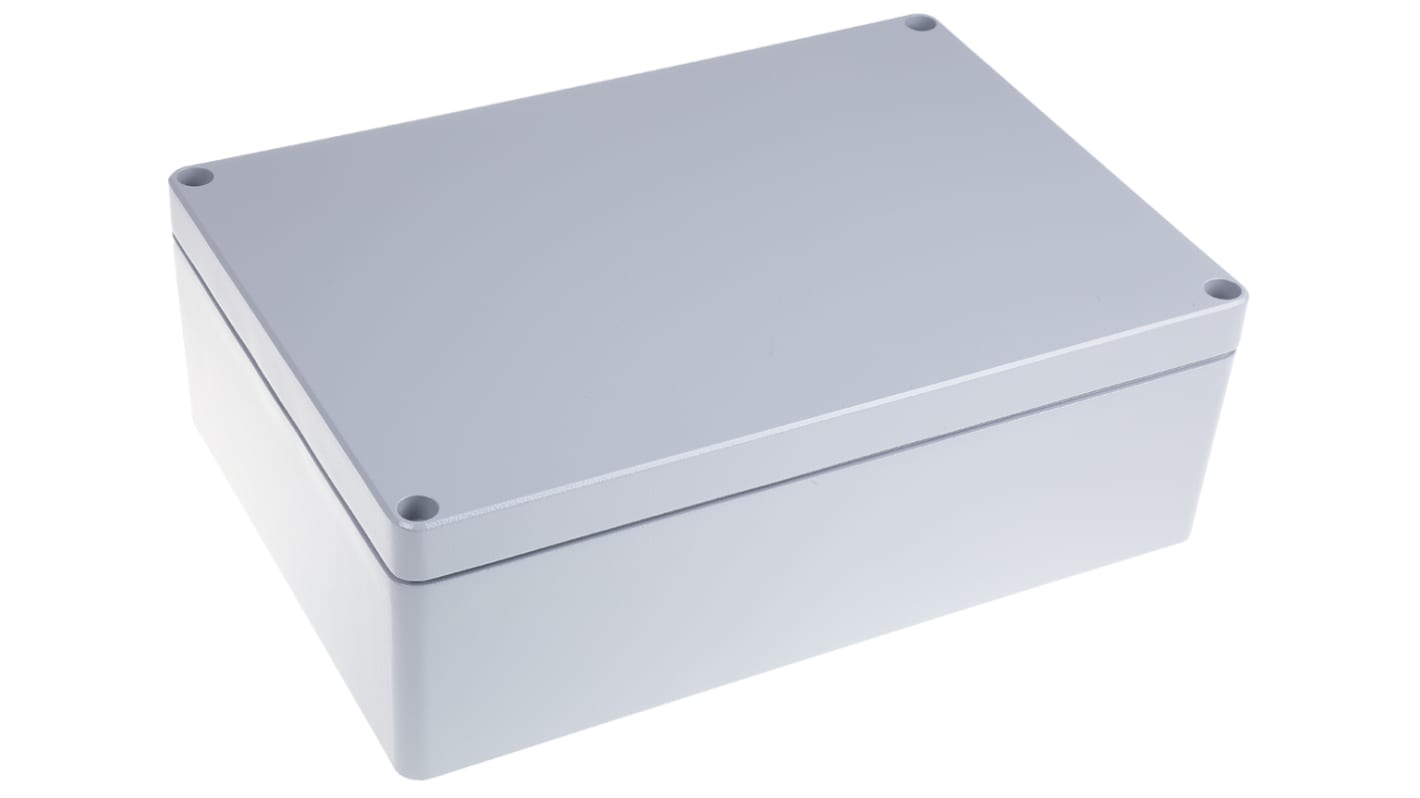

Fibox Euronord Series Grey Aluminium Enclosure, IP66, IP67, IP68, Grey Lid, 330 x 230 x 110mm

Se alla General Purpose Enclosures

Antal (1 enhet)*

4 132,24 kr

(exkl. moms)

5 165,30 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 14 enhet(er) är redo att levereras
  • Plus 7 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +4 132,24 kr

*vägledande pris

RS-artikelnummer:
738-9237
Tillv. art.nr:
ALN 233311 COMPLETE
Tillverkare / varumärke:
Fibox
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Fibox

Body Material

Aluminium

External Length

330 mm

External Height

110 mm

External Width

230 mm

External Dimensions

330 x 230 x 110mm

IP Rating

IP66, IP67, IP68

Colour

Grey

Lid Colour

Grey

Shielded

No

Series

Euronord

COO (Country of Origin):
FI

FIBOX Euronord Aluminium Enclosure


Euronord range of enclosures from Fibox are designed to house DIN Rail-mounted terminal blocks and various types of sensors. The outer surface is free of ’gate marks’ creating a smooth area for labels, decals or screen printing. Cover screws fully tighten in 4 revolutions, are held captive, but are still removable.

Features and Benefits


• Temperature range -40°C to +80°C (continuous), -50 to +140°C (short term)
• Designed to house DIN Rail-mounted terminal blocks and various types of sensors
• IP 66/67/68
• Base colour RAL 7001

(IP) Ingress Protection and what it means?


IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.

FAQ’s


Can the box be used outside?
• Yes, Euronord series enclosures have IP66 / IP67/ IP68 rating

Can you purchase mounting plates separately?
• No, Euronord mounting plates are not available separately

What is supplied?
• Enclosure, Base with screws for mounting plate/DIN-Rail, cover with PUR gasket and stainless steel cover screws

Standards

EN 62208:2003 (50298:1998). EN 60950.

Approvals

UL Type 1, 4, 4X, 12, 13 (USA); IP 67/IP 66 (EURO); IEC 529 (OTHERS)
