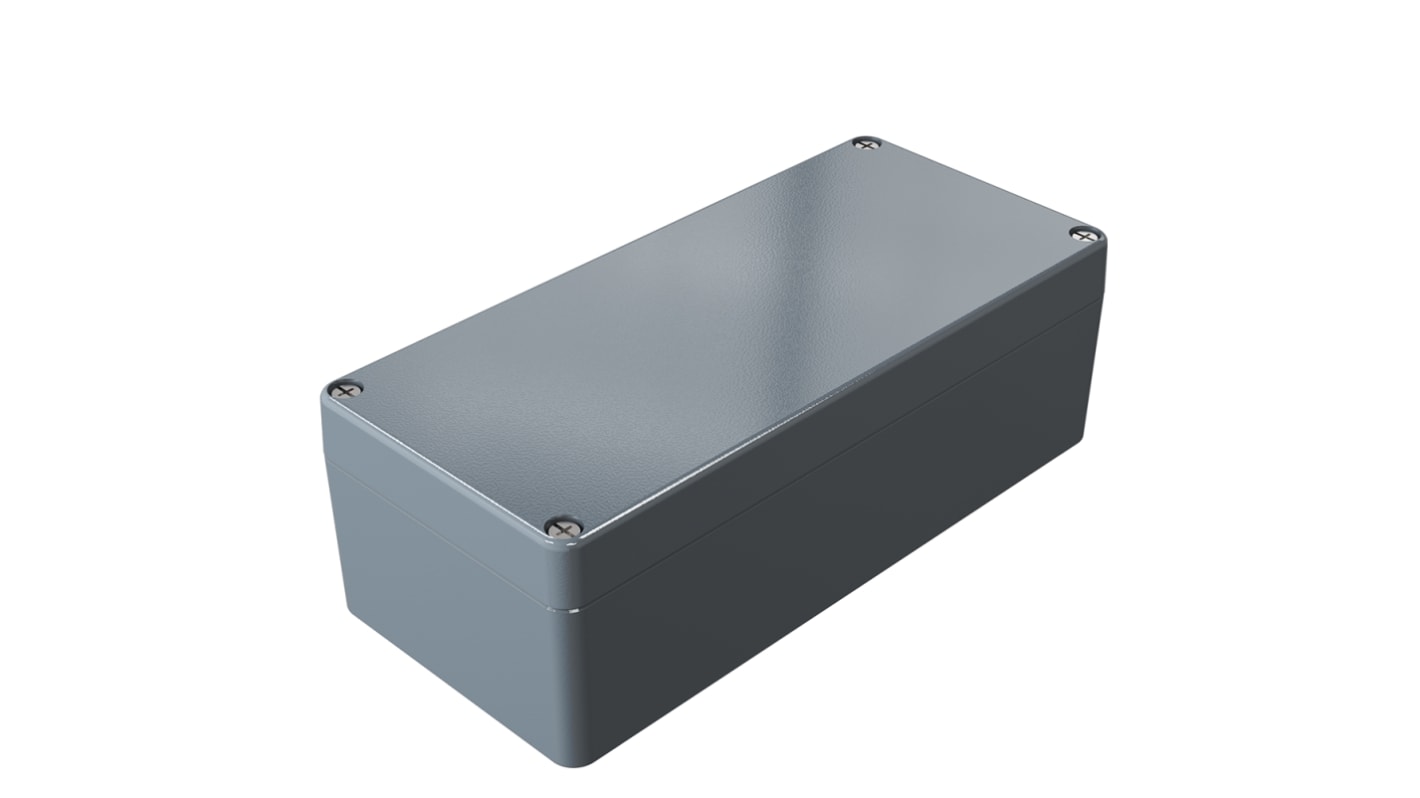

Rose Aluminium Standard Series Grey Die Cast Aluminium Enclosure, IP66, IK09, Grey Lid, 122 x 120 x 80mm

RS-artikelnummer:: 507-062
Tillv. art.nr:: 01121208
Tillverkare / varumärke:: Rose

Rose Aluminium Standard Series Grey Die Cast Aluminium Enclosure, IP66, IK09, Grey Lid, 122 x 120 x 80mm

Antal (1 enhet)*

588,22 kr

(exkl. moms)

735,28 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

Dessutom levereras 15 enhet(er) från den 22 december 2025
Dessutom levereras 75 enhet(er) från den 22 december 2025
Dessutom levereras 10 enhet(er) från den 09 januari 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	588,22 kr

*vägledande pris

RS-artikelnummer:: 507-062
Tillv. art.nr:: 01121208
Tillverkare / varumärke:: Rose

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Rose
	Body Material	Die Cast Aluminium
	External Length	122 mm
	External Height	122 mm
	External Width	120 mm
	External Dimensions	122 x 120 x 80mm
	Range	Aluminium Enclosure
	IP Rating	IP66
	Colour	Grey
	Lid Colour	Grey
	Flanged	No
	Hazardous Area Certification	Lloyds Register, Maritime Register, UL 508
	Shielded	No
	Series	Aluminium Standard
	Number Of Knockouts	0
	Weight	940g
	IK Rating	IK09
	Transparent Door	No
	Gasket Material	Polyurethane
	RAL Code	RAL 7001

	Välj alla
	Brand Rose
	Body Material Die Cast Aluminium
	External Length 122 mm
	External Height 122 mm
	External Width 120 mm
	External Dimensions 122 x 120 x 80mm
	Range Aluminium Enclosure
	IP Rating IP66
	Colour Grey
	Lid Colour Grey
	Flanged No
	Hazardous Area Certification Lloyds Register, Maritime Register, UL 508
	Shielded No
	Series Aluminium Standard
	Number Of Knockouts 0
	Weight 940g
	IK Rating IK09
	Transparent Door No
	Gasket Material Polyurethane
	RAL Code RAL 7001

Logga in för att ladda ner CAD-modeller

COO (Country of Origin):: DE

ROSE Grey Die-Cast Aluminium Enclosure, 120mm Height, 81mm Depth - Aluminium Standard Series - 01121208

Choose this robust enclosure from ROSE to safely house your industrial and electrical components. For enhanced security, it comes with a protective cover and stainless steel captive screws to prevent unauthorised access to its contents. The die-cast aluminium body is resistant to corrosion and wear for long-lasting performance. Thanks to its broad operating temperature range of -40°C to +90°C, this enclosure is suitable for use in demanding industrial environments.

Features & Benefits

• Compact external dimensions of 120 (height) x 122 (width) x 81mm (depth) for storing small components
• Light weight of 957g to minimise strain on the mounting surface
• Can be mounted on a DIN rail or mounting plate for versatile installation
• Meets UL 508A standards for industrial control panels

Applications

• Gas plants
• Marine industry
• Robotics and automation

Can I use this enclosure in damp environments?

This enclosure has an IP66 (ingress protection) rating, so it's fully shielded against dust and can withstand exposure to high-pressure water jets. This makes it safe for use in damp or humid environments.
