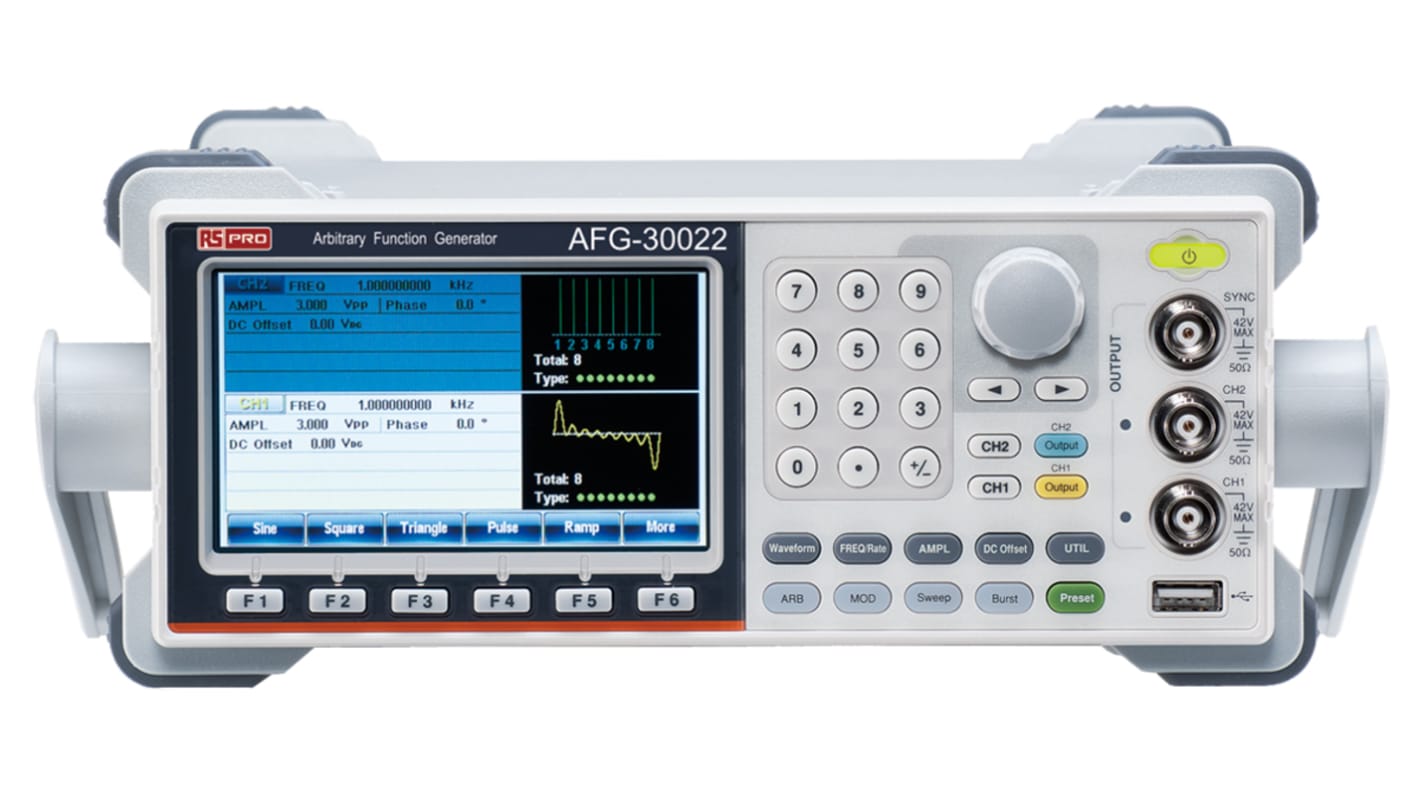

    RS PRO AFG-30022 Function Generator, 1μHz Min, 20MHz Max, FM Modulation, Variable Sweep - RS Calibration

    RS-artikelnummer:
    122-5631
    Tillverkare / varumärke:
    RS PRO
    RS PRO
    Se alla Function Generators
    4 I lager för leverans inom 3-5 arbetsdagar
    Add to Basket
    Enheter

    Nästa dag-leverans inte möjlig

    Lagt till varukorgen

    Pris (ex. moms) Each

    20 689,34 kr

    (exkl. moms)

    25 861,68 kr

    (inkl. moms)

    EnheterPer unit
    1 +20 689,34 kr
    RS-artikelnummer:
    122-5631
    Tillverkare / varumärke:
    RS PRO
    COO (Country of Origin):
    TW

    Datablad


    Lagstiftning och ursprungsland

    COO (Country of Origin):
    TW

    Produktdetaljer

    RS PRO Dual Channel Arbitrary Function Generator


    From RS PRO, comes a range of high quality and user-friendly dual-channel arbitrary waveform function generators. These generators are designed to meet industry, scientific research, and education applications.
    As part of the RS PRO AFG-30000 Series, users can implement multi-channel synchronised phase operation up to 6 units and 12 channels. They are also able to support frequency sweep and amplitude sweep as required. The series also supports synchronized phase for multi-channel operation and the maximum phase synchronization operation is up to 6 units and 12 channels.


    Features and benefits:


    • 20 MHz or 30 MHz, 1 channel or 2 channels, depending on the choice of model

    • 16-bit resolution with 1 mVpp to 10 Vpp amplitude

    • Pulse waveform parameters can be set independently for more precise timing

    • Dual-channel modes support SUM modulation, coupling, tracking, and phase functions.

    • Arbitrary waveform 250MSa/s

    • Isolation channel circuit design

    • Free arbitrary waveform editing software (AWES) for users to quickly edit waveforms from the built-in diagrams to execute measurements


    Applications


    • Industry

    • Automotive electronics

    • Scientific research

    • Education


    What are function generators?


    These types of generators are devices that generate different types of waveforms that are either single shot or repetitive.


    Why choose RS PRO?


    RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.


    Supplied with

    Test cable(1 per channel), user manual CD, quick start guide, power cord


    Specifikationer

    AttributeValue
    Maximum Frequency Range Sinewave20MHz
    CalibratedRSCAL
    Minimum Frequency Range Sinewave1µHz
    Maximum Frequency Range Square Pulse and Arbitrary Waveform20MHz
    Minimum Frequency Range Square Pulse and Arbitrary Waveform1 μHz
    Maximum Frequency Range Triangle/Saw1MHz
    Minimum Frequency Range Triangle/Saw1µHz
    Digital FrequencyYes
    Digital Amplitude and OffsetYes
    Internal Linear and Log SweepYes
    Variable SweepYes
    Internal and External Amplitude ModulationYes
    FM ModulationYes
    Time Base Accuracy±1ppm
    Dimensions265 x 374 x 107mm
    Height107mm
    Frequency Range Square Pulse and Arbitrary Waveform1 μHz → 20 MHz
    Interface TypeLAN, USB
    Output Amplitude10 V Pk-Pk, 20 V Pk-Pk
    Maximum Operating Temperature+40°C
    Weight4kg
    Output Impedance50Ω
    Model Number pAFG-30022
    Length265mm
    Input Impedance>10 kΩ
    Width374mm
    Minimum Operating Temperature0°C
