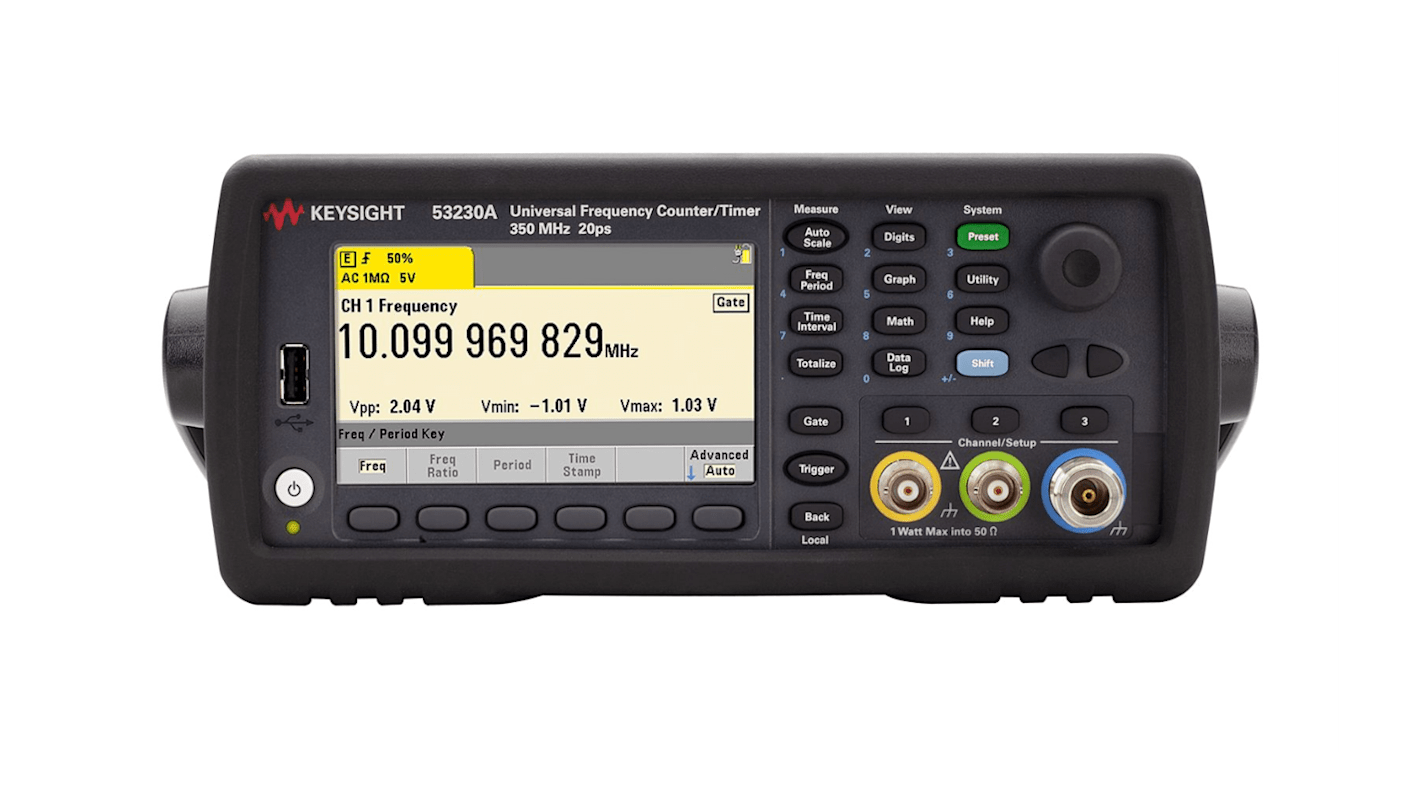

Keysight Technologies 53230A Frequency Counter

Lagstiftning och ursprungsland
COO (Country of Origin): MY

Keysight Technologies Frequency Counter

The Keysight Technologies frequency counter is a 2 channel new generation, 350MHz RF and universal counter/timers delivering exceptional performance and usability standards. This frequency counter provides high-speed measurements and built-in analysis provides functionality that was not previously available in the basic frequency counters/timers. It offers resolution capabilities up to 12 digits/second frequency. This counter has built-in analysing and graphing capabilities to maximise insight and information delivered. It can measure parameters like frequency, frequency ratio, period, peak to peak voltage, RF signal strength, single period and pulse width.

Features and Benefits

• Optional 6GHz or 15GHz input
• Single-shot resolution 20ps models
• 1M reading memory and USB flash storage
• Various connectivity interfaces like LXI-C, LAN, USB and GPIB
• Up to 75,000 and 90,000 readings/sec (frequency and time interval)
• Large colour graphical display for histogram, trend/strip chart and advanced math operations like statistics
• Advance data logging
• Operating temperature ranges between -10°C and 60°C
• Continuous gap-free measurements
• Basic measurement and timestamps for modulation domain analysis (MDA)
• Optional pulse/burst microwave measurement
• Plug type Europe and UK


• Data communication
• Embedded systems
• RF and microwaves
• Laboratories


• Certified ISO 9001:2008
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007

Attribute Value
Maximum Frequency 350MHz
Minimum Frequency 1 (DC) mHz
Resolution 12 Digit
Pulse Width Resolution 40ns
Maximum Input Voltage 5 V, 50 V
Minimum Input Voltage -50 V, -5 V
Input Impedance 1 MΩ, 50 Ω
Connector Type BNC
Dimensions 261.2 x 302.2 x 103.8mm
Length 261.2mm
Width 302.2mm
Weight 3.9kg
Model Number p 53230A
Height 103.8mm
Minimum Operating Temperature 0°C
Maximum Operating Temperature +55°C
Plug Type Europe, UK
4 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
38 117,00 kr
(exkl. moms)
47 646,25 kr
(inkl. moms)
Per unit
1 +
38 117,00 kr
Kalibrerade alternativ:
